51 12 825 Removing and installing/replacing guide for rear centre bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both brackets for bumper (on rear lights), refer to 51 12 801 REPLACING BRACKET FOR REAR BUMPER AT LEFT OR RIGHT

Release nuts (1) and remove guide (2).

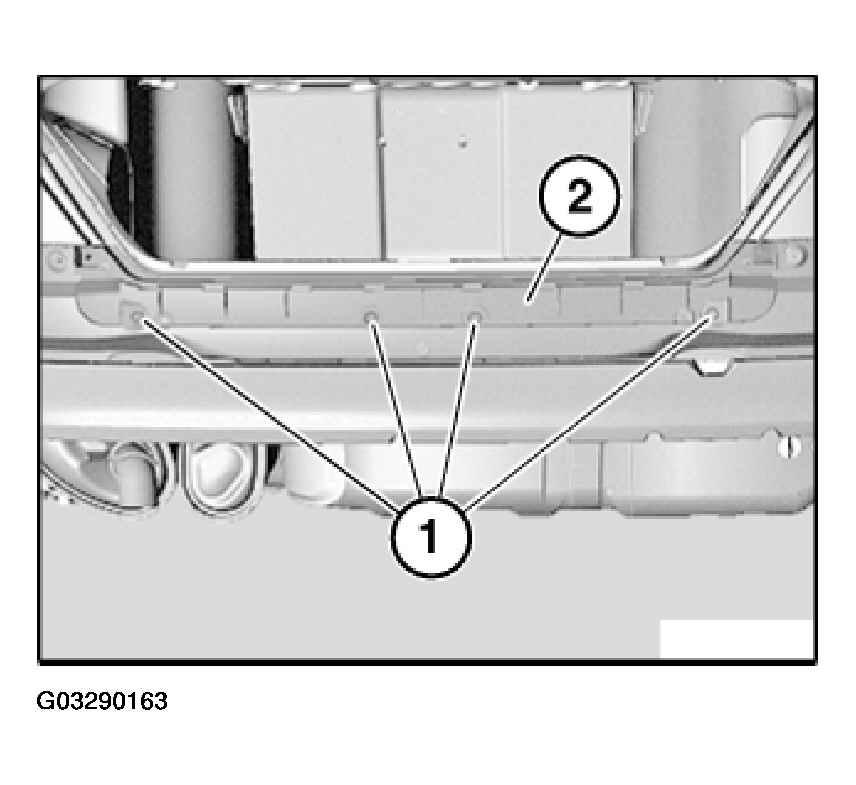

Fig 1: Releasing Nuts And Remove Guide

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: With build date up to 03/2005 nuts (1) are already released. Guide (2) can be removed.
