51 12 801 Replacing bracket for rear bumper at left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bumper trim, refer to 51 12 156 Removing and installing rear bumper trim

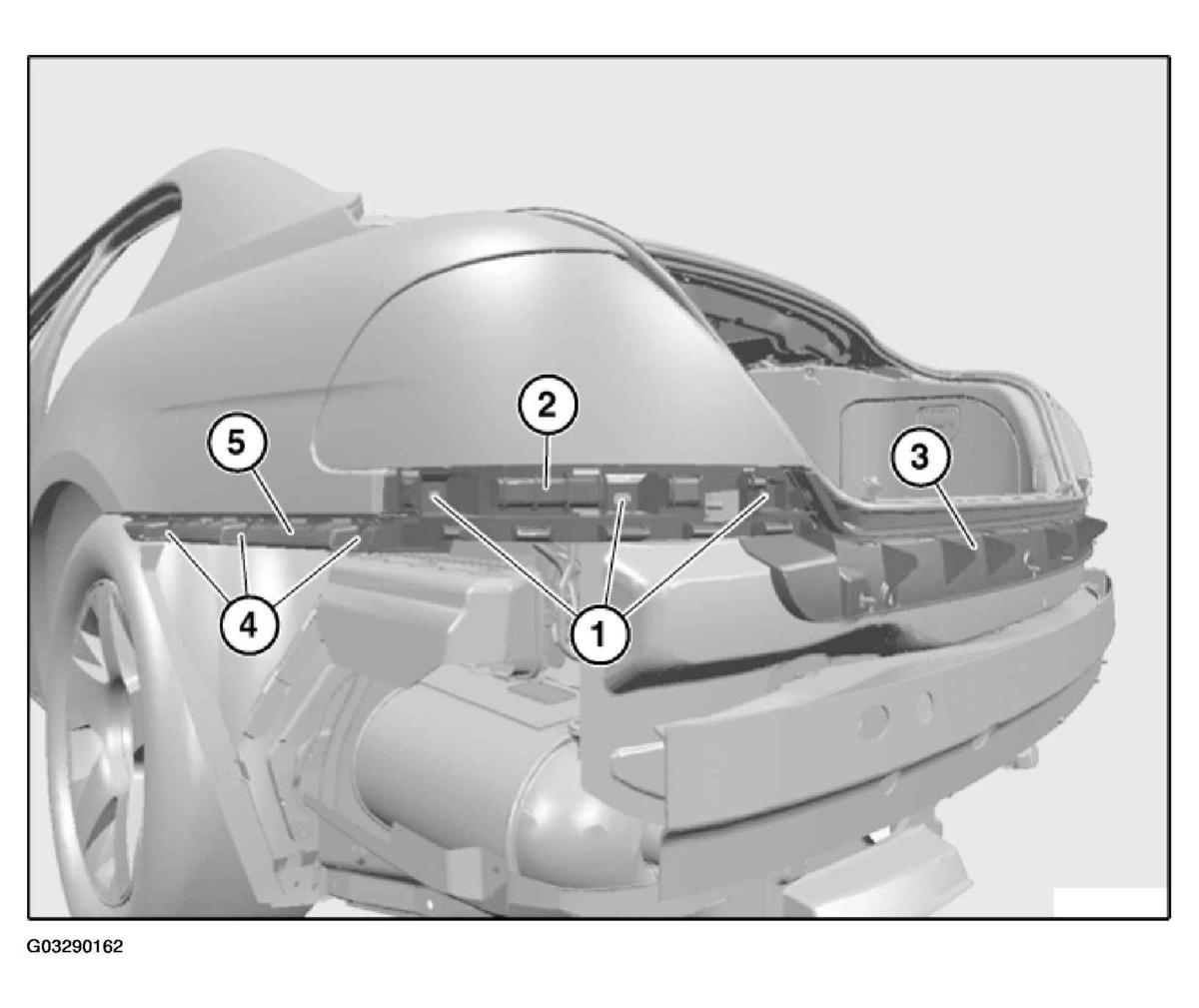

Fig 1: Removing Bumper Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When removing guide (3), it is only necessary to remove bracket (2) on left/right.

Release nuts (1) on left/right.

Remove bracket (2) on left/right.

Release screws (4) on left/right.

Remove bracket (5) on left/right.
