51 16 045 Removing and installing/replacing retaining ring on left or right door mirror

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove housing (cover) on door mirror. Refer to 51 16 040 REMOVING AND INSTALLING/REPLACING HOUSING (COVER) ON LEFT OR RIGHT DOOR MIRROR .

Release screws (1).

Remove retaining ring (2).

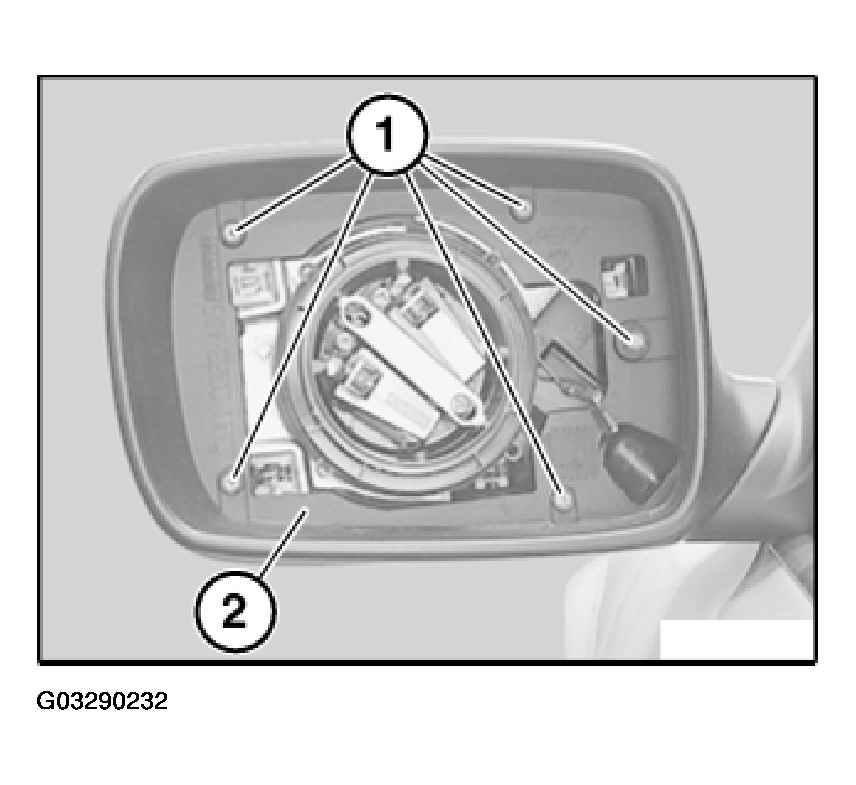

Fig 1: Removing Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) on retaining ring (2) must not be damaged.

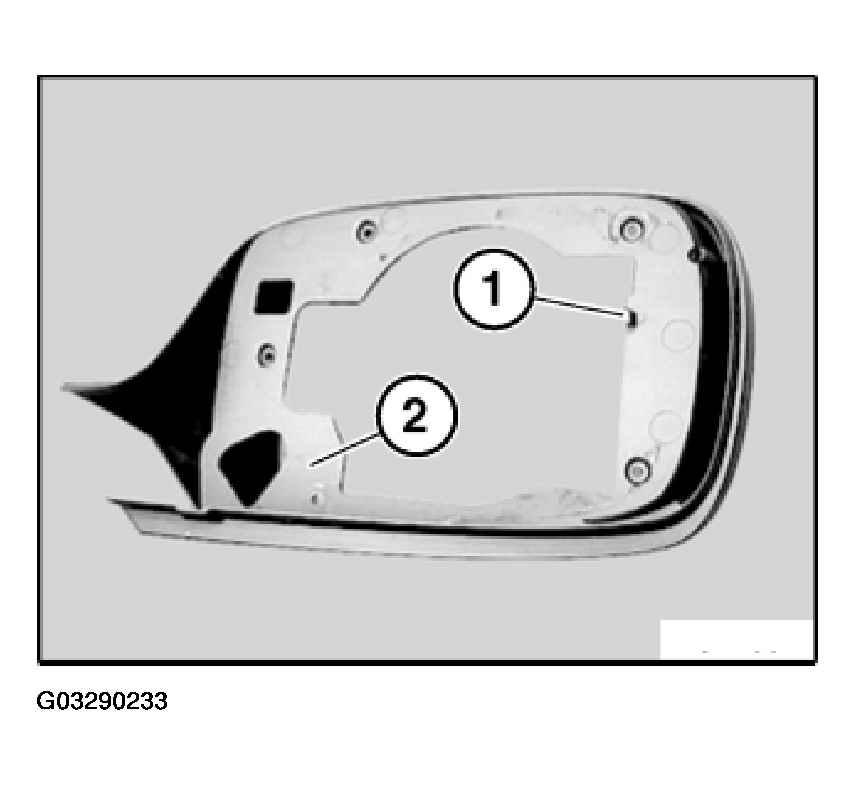

Fig 2: Identifying Guide On Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.
