51 16 040 Removing and installing/replacing housing (cover) on left or right door mirror
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove mirror glass, refer to 51 16 026 REPLACING MIRROR GLASS
NOTE:

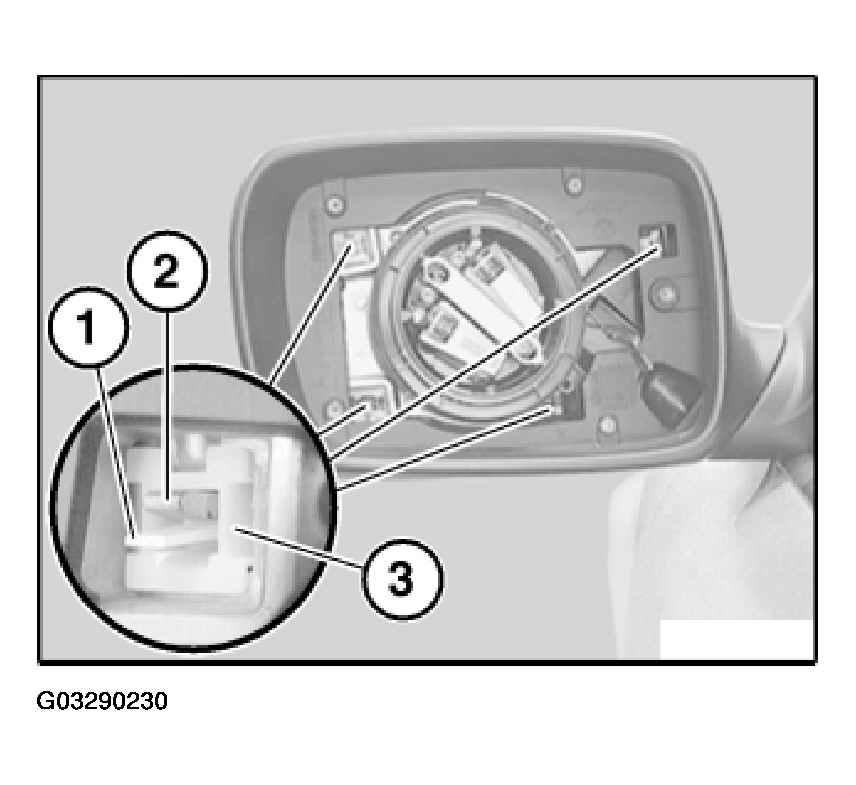

The housing is secured without play by the four multitooth catches (2) in the clips (3).
Unlock catches (1 and 2) with a screwdriver.
Pull on housing and unlock all four clips (3) in succession.
Installation:
Replace all clips (3).
Installation:

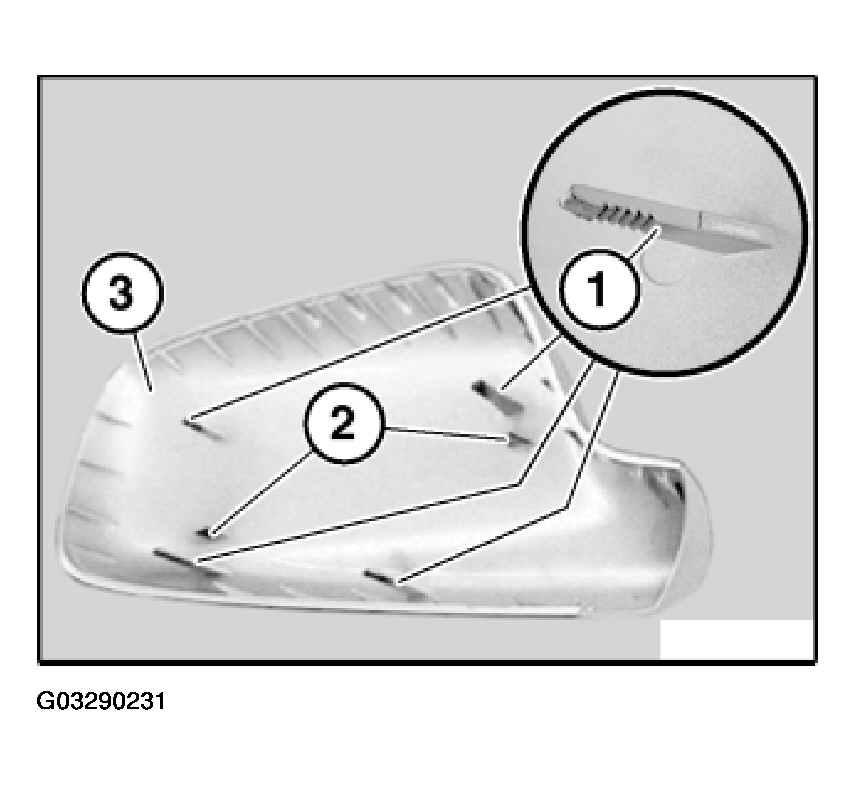

Catches (1) and guides (2) on housing (3) must not be damaged.
