51 71 447 Removing and installing or replacing panel for cover on left or right side member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach wheel arch cover from front/rear side member cover, refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER or 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER

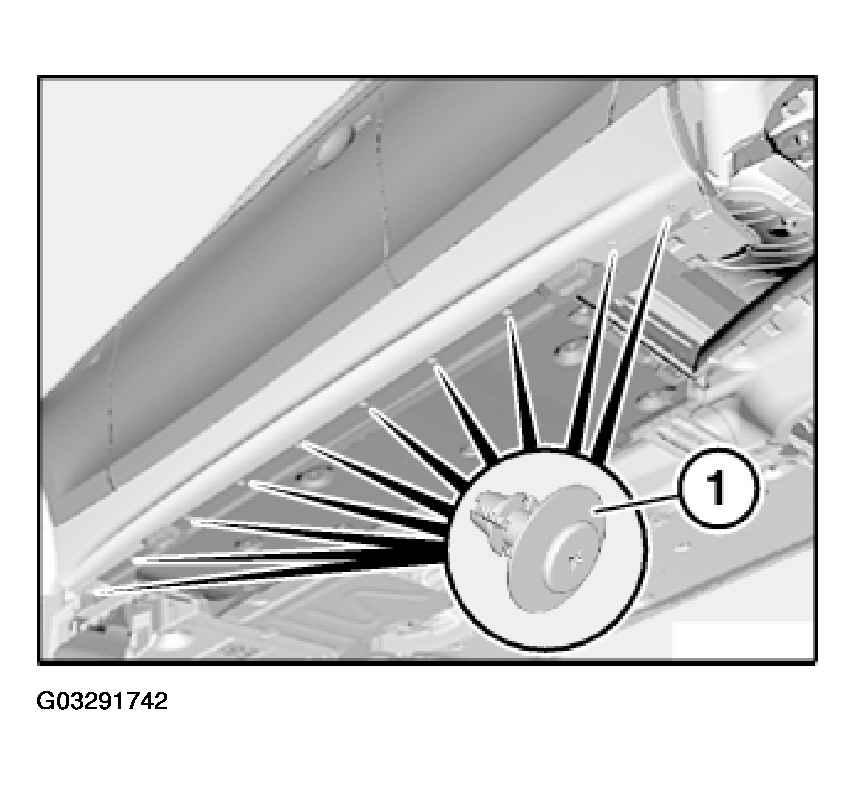

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

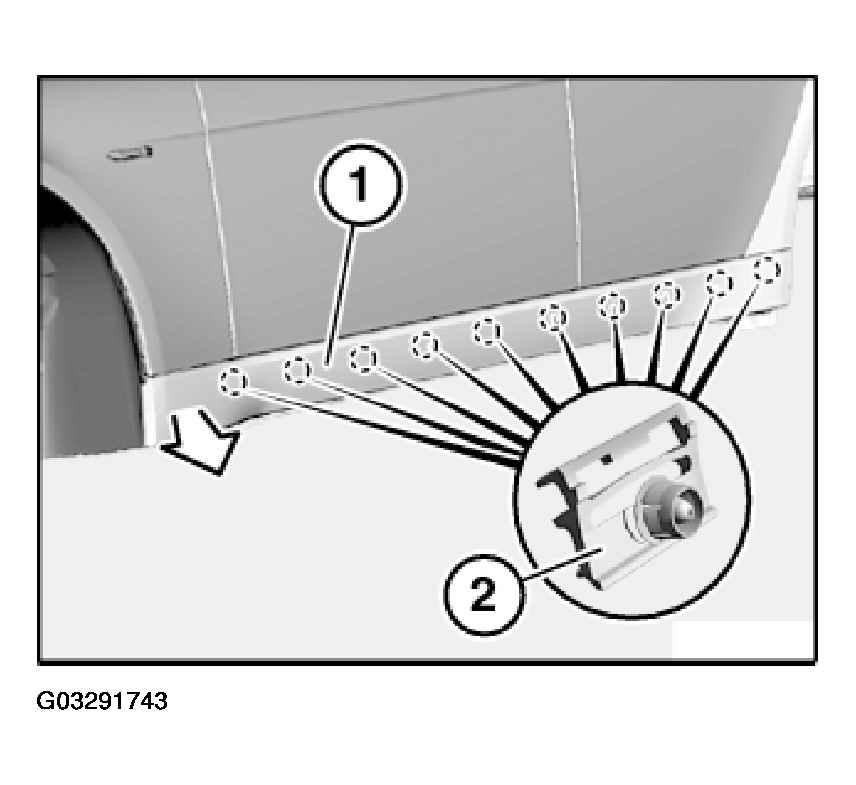

Unclip panel (1) at holders (2) in direction of arrow and remove.

Fig 2: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

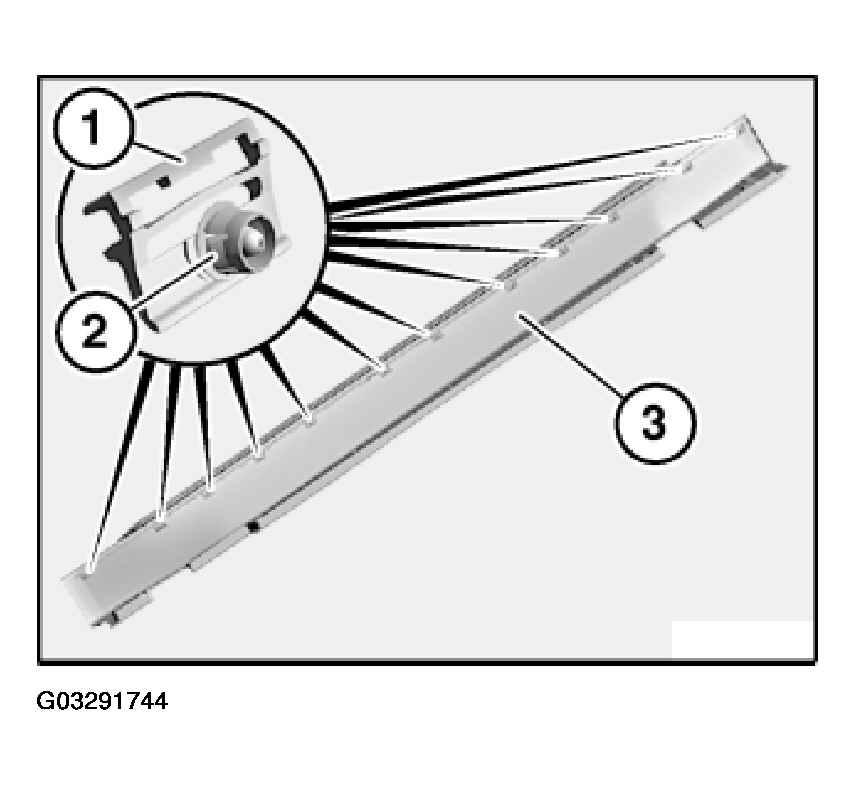

Before installation, soak holders (1) in water.

Fig 3: Identifying Holders

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, detach holders (1) from body and fit on panel (3).

If necessary, detach grommets (2) from holders (1) and place on body.

If necessary, replace faulty holders (1) and grommets (2).
