51 71 041 Removing and installing/replacing rear left or right wheel arch cover
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
- If necessary, disconnect and feed out plug from brake pad wear sensor
NOTE:
The operation is described on the left side; proceed in the same way for the right side.

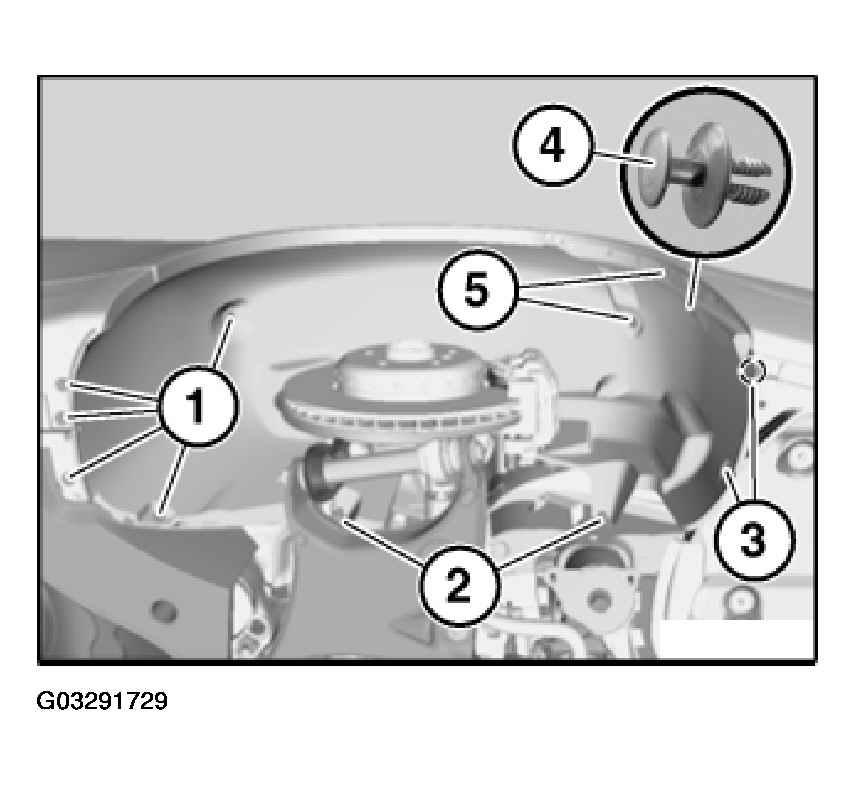

Illustration created using E60 as an example. There may be differences in detail in the case of other vehicle models.
Release screws (1, 3 and 5).
Unscrew nuts (2).
Release expansion rivet (4).
Carefully feed out rear wheel arch cover towards bottom.
Installation:
Make sure rear wheel arch cover is correctly seated.
