Special tools required:

• 00 9 321

Remove fresh air grill on right and in center. Refer to 64 22 138 REMOVING AND INSTALLING/REPLACING RIGHT FRESH AIR GRILL (AUTOMATIC A/C HIGH) and 64 22 162 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (AUTOMATIC A/C HIGH) .

Remove instrument cluster trim. This task is described in the section "Removing center wood trim on instrument panel". Refer to 51 45 363 REMOVING AND INSTALLING/REPLACING CENTER WOOD TRIM ON INSTRUMENT PANEL .

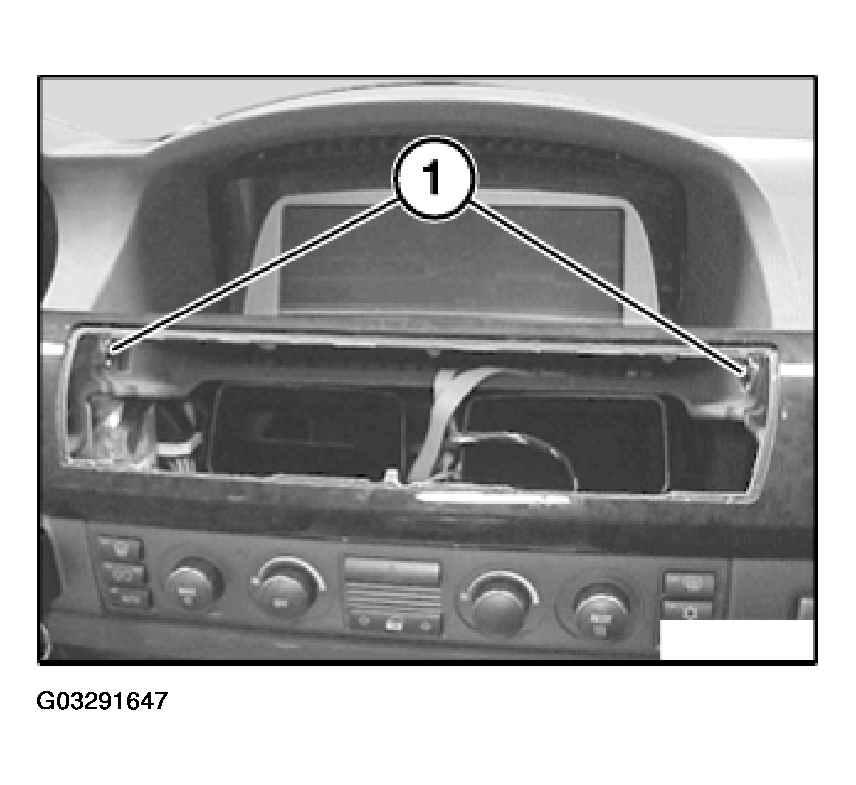

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

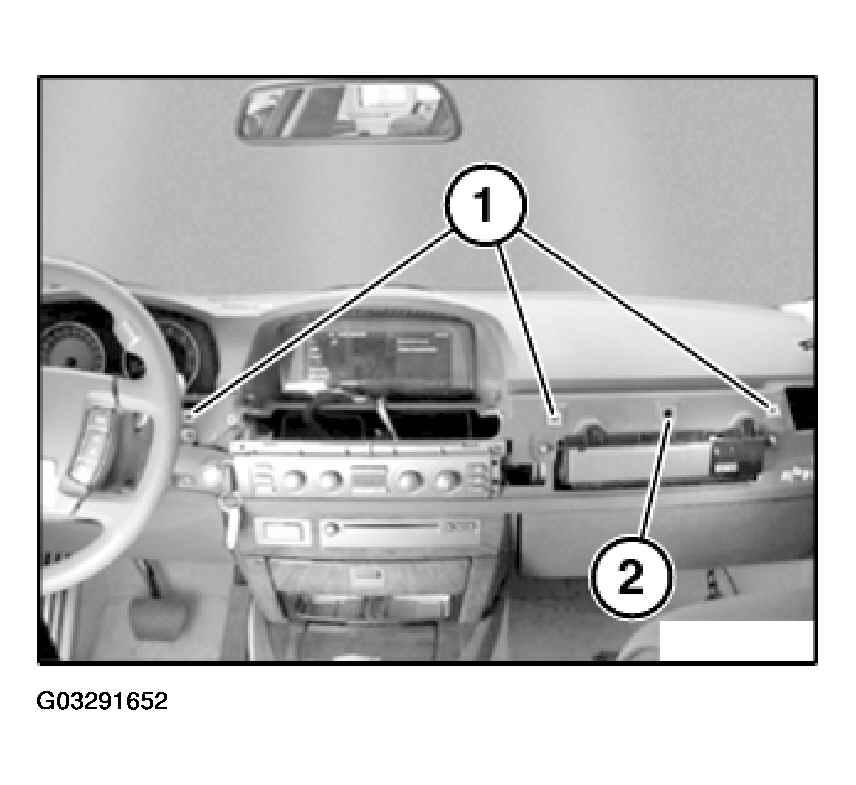

Release nut (1).

Fig 2: Releasing Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 51 45 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

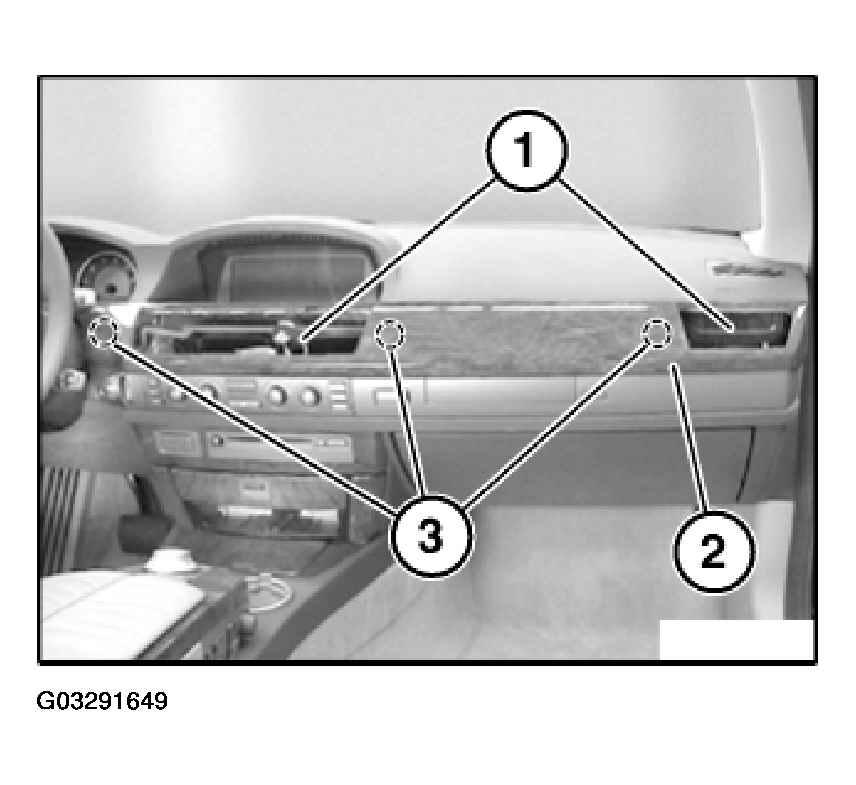

With special tool 00 9 321 (fishbone) through openings (1) for fresh air grill, unclip wood trim (2) next to retaining pin (3).

Fig 3: Unclipping Wood Trim

Courtesy of BMW OF NORTH AMERICA, INC.

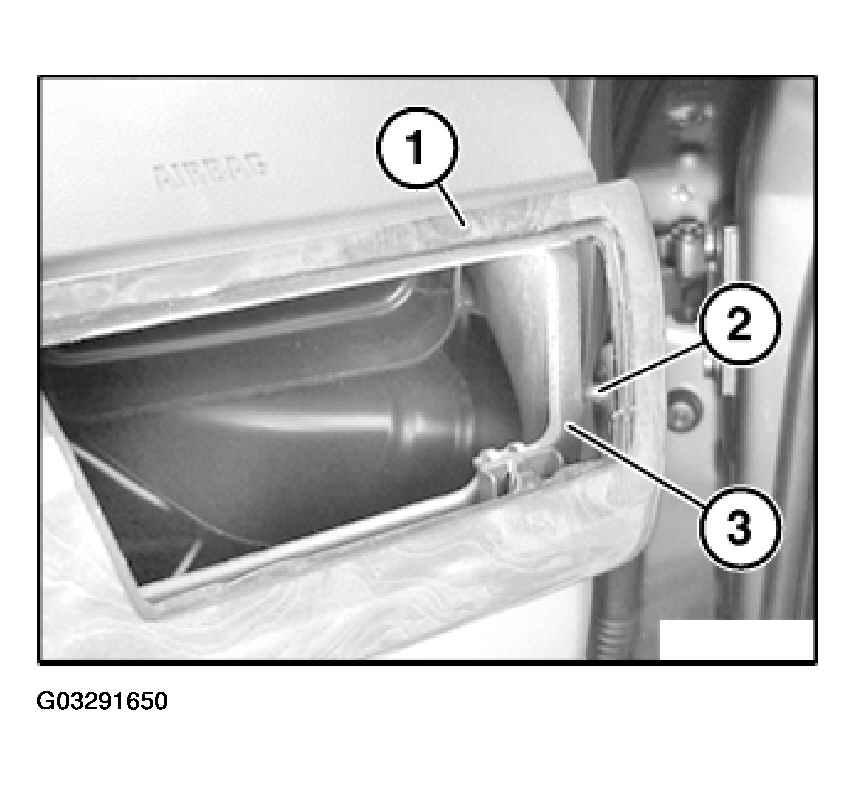

Slide threaded pin (2) with wood trim (1) out of panel (3).

Fig 4: Removing Wood Trim

Courtesy of BMW OF NORTH AMERICA, INC.

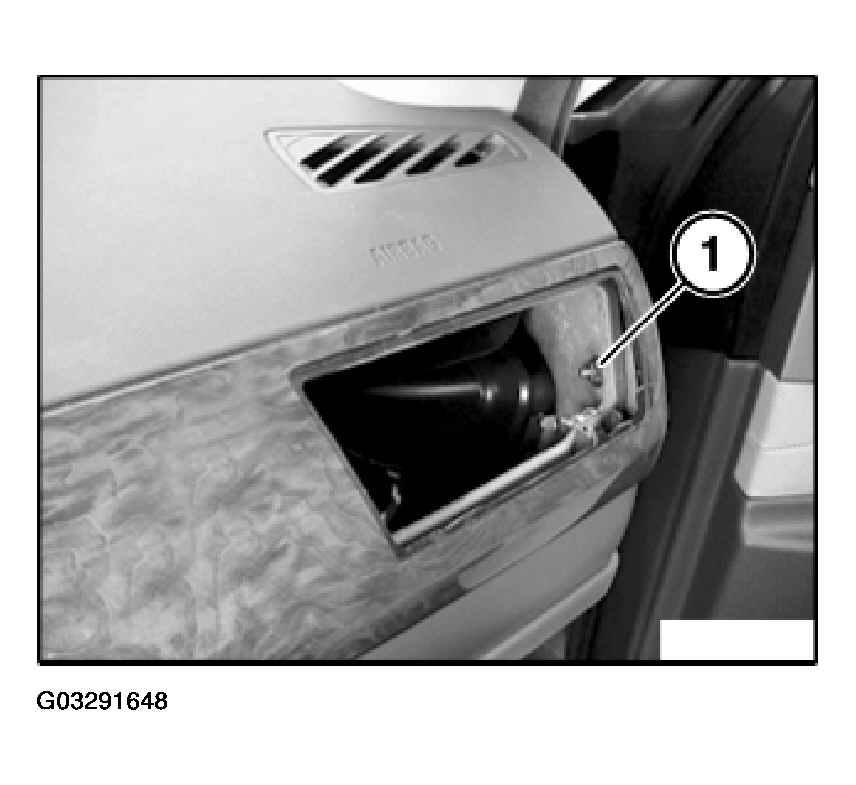

Remove wood trim (1) towards rear.

Installation:

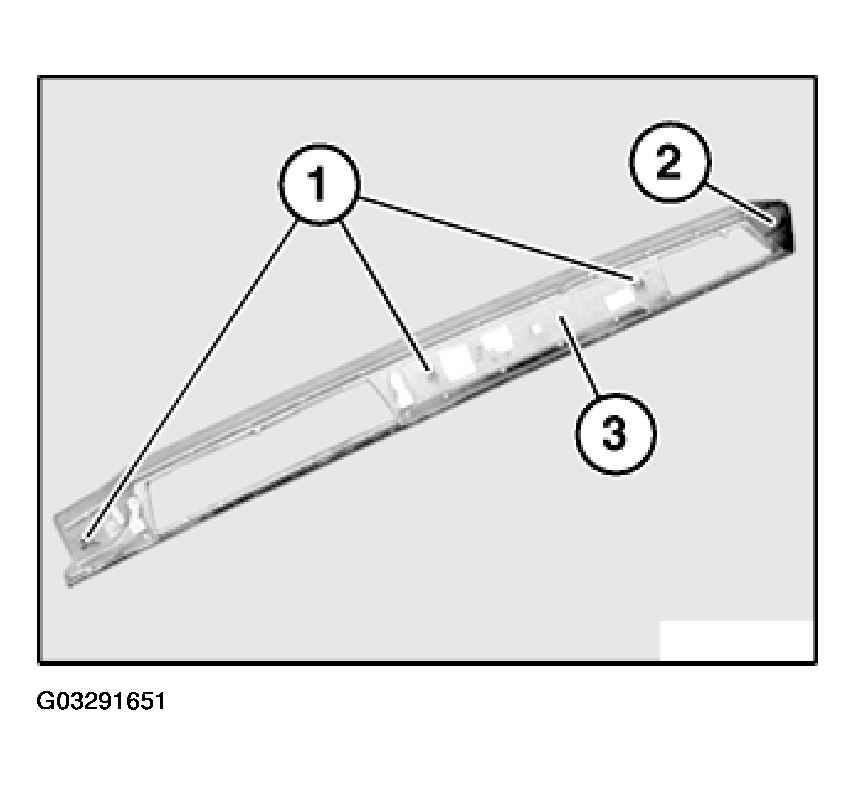

Pin (1) and threaded pin (2) of wood trim (3) must not be damaged.

Fig 5: Identifying Pin And Threaded Pin Of Wood Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips (1) (Hutfix).

Fig 6: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

No clip (Hutfix) is fitted in mounting (2).

Replacing clip (Hutfix):

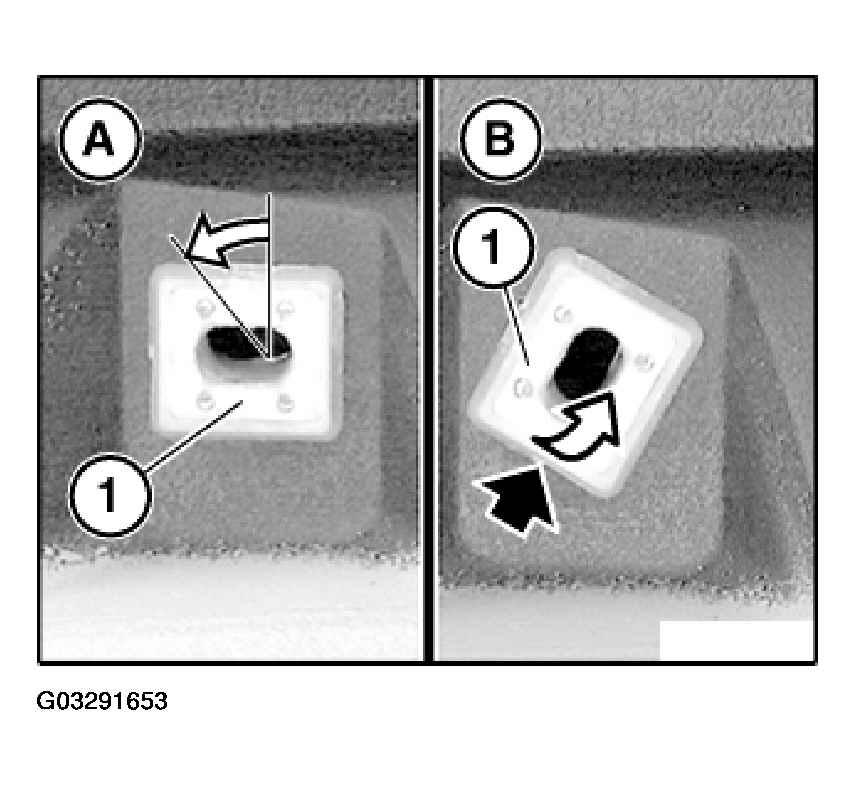

1. Turn clip (1) with screwdriver to left by approx. 60°.
2. Lever out clip (1) from below.
   Fig 7: Removing Clip

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

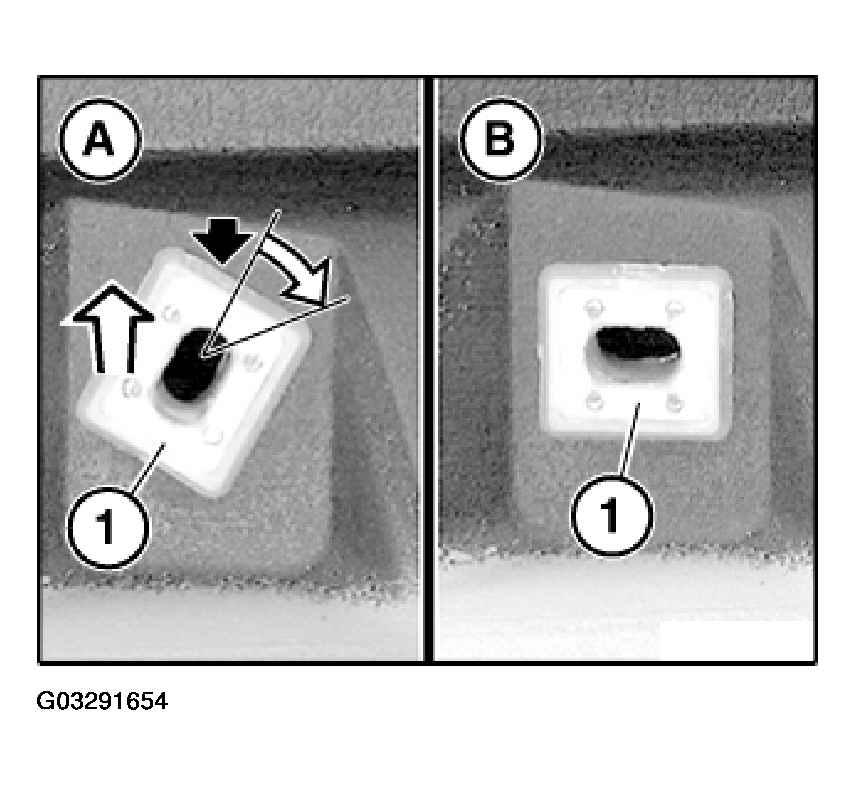

1. Insert clip (1) from above and snap into place at bottom.
2. Then turn clip (1) with screwdriver to right by approx. 60°.
3. Clip (1) in end position.
   Fig 8: Installing Clip

   Courtesy of BMW OF NORTH AMERICA, INC.
