51 45 363 Removing and installing/replacing center wood trim on instrument panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

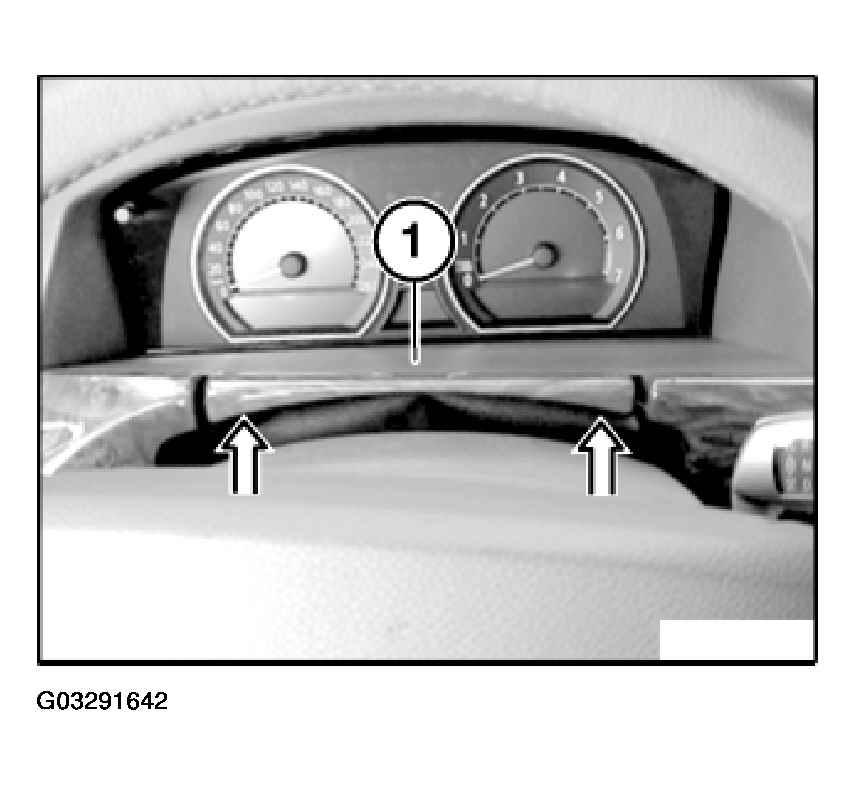

Unclip instrument cluster trim (1) by applying light thumb pressure upwards on wood trim on left and right.

Fig 1: Unclipping Instrument Cluster Trim

G03291642

Courtesy of BMW OF NORTH AMERICA, INC.

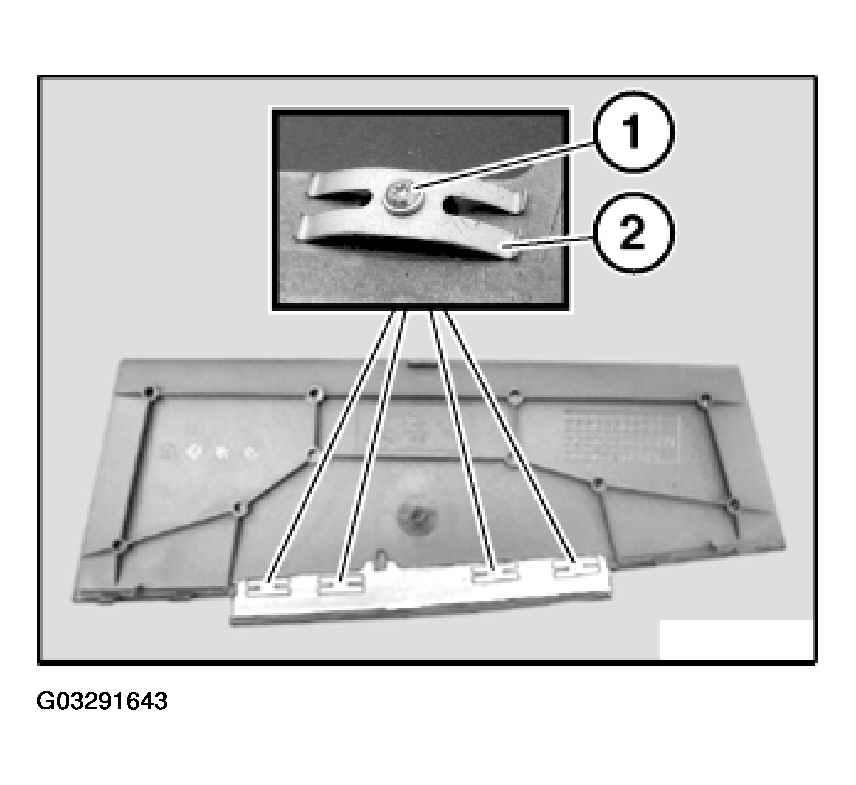

Release screws (1).

Fig 2: Releasing Screws

G03291643

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert spring washers (2) with dome facing screw head.

Installation:

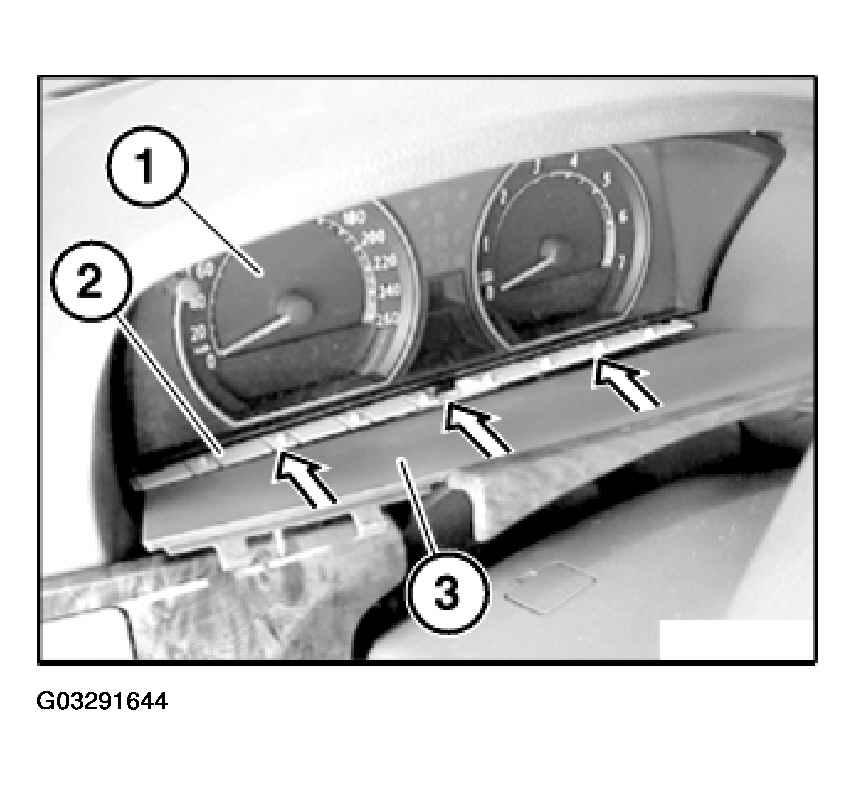

Insert instrument cluster trim (3) in mounting (2) of instrument cluster (1).

Fig 3: Inserting Instrument Cluster Trim In Mounting

G03291644

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

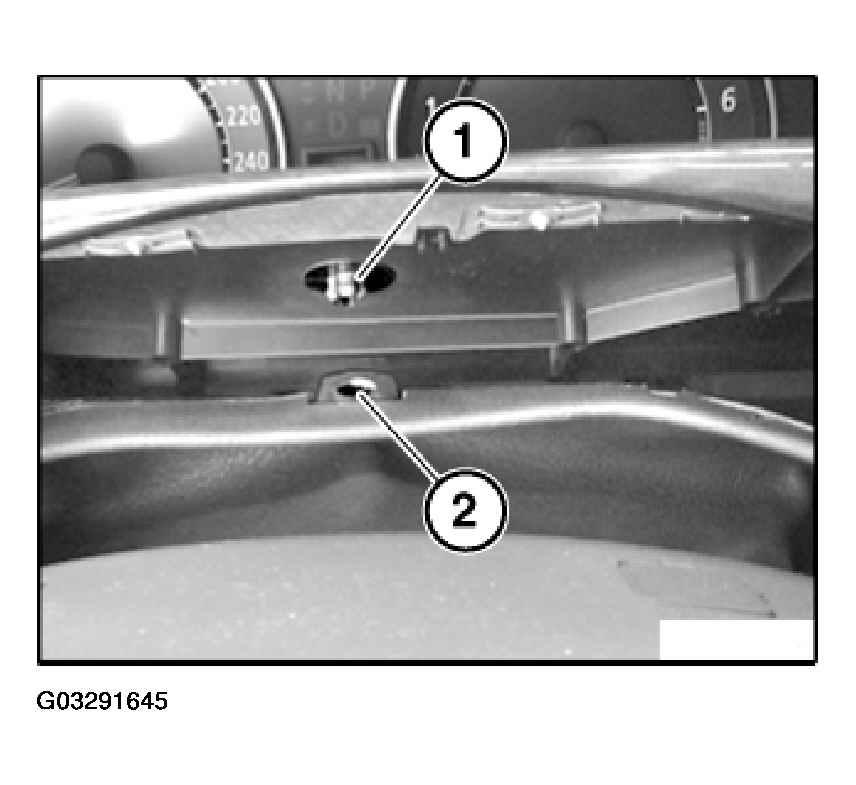

Clip holder (1) into mounting (2).

Fig 4: Clipping Holder Into Mounting

G03291645

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not damage wood trims.

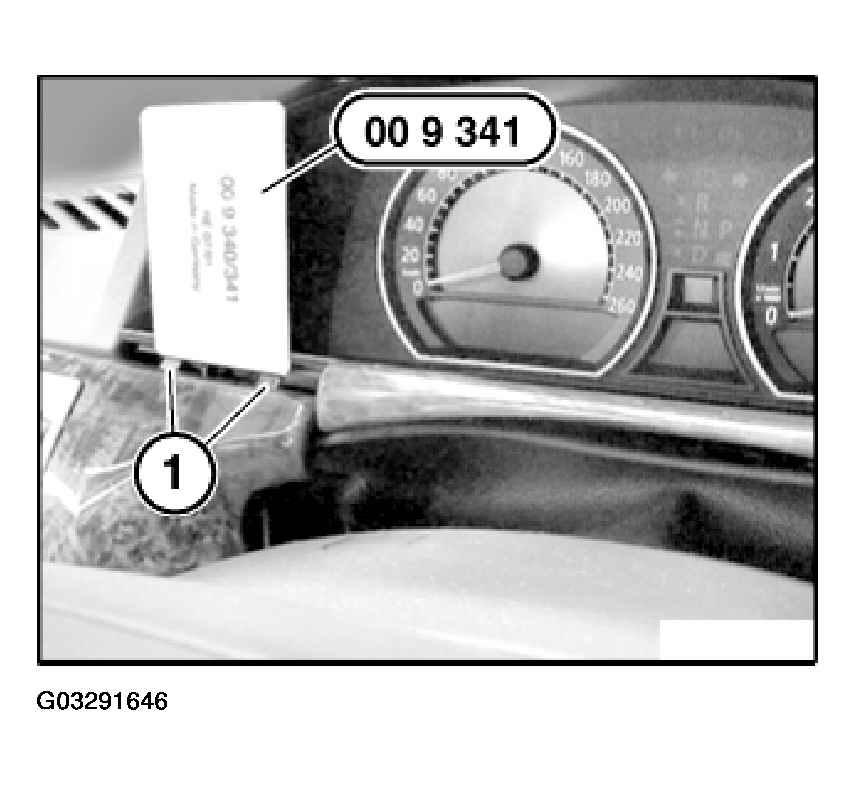

Snap detent lugs (1) on left and right into place with special tool 00 9 341.

Fig 5: Identifying Snap Detent Lugs

G03291646

Courtesy of BMW OF NORTH AMERICA, INC.
