51 21 351 Replacing window cavity seal on left or right front door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL

Pull off window cavity seal (1) starting at rear in direction of arrow.

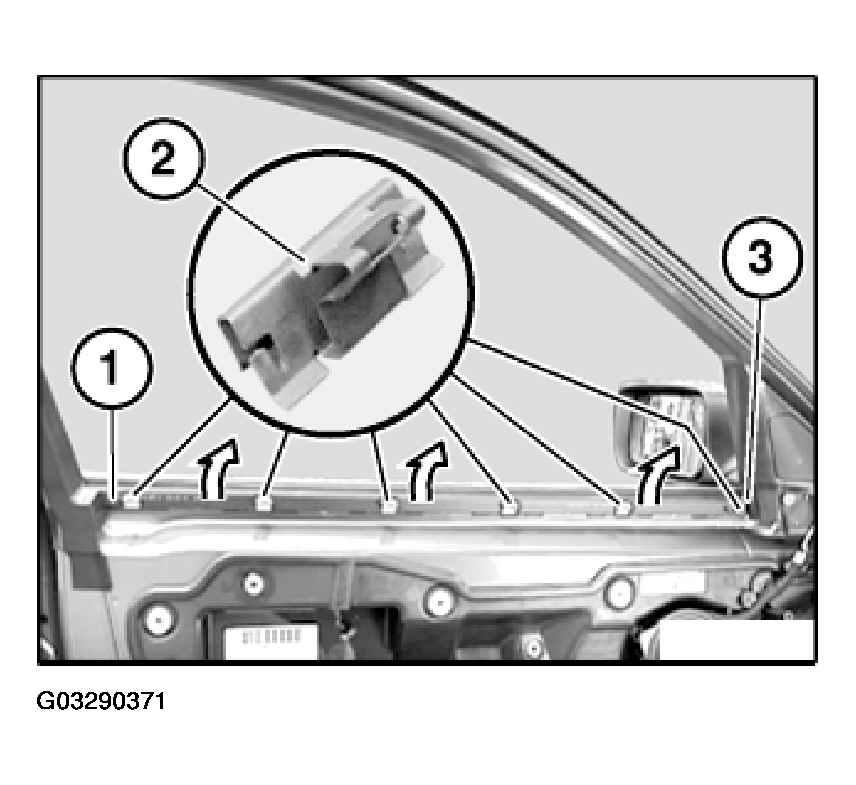

Fig 1: Removing Cavity Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (2 and 3).

Coat window cavity seal (1) with water before fitting.

Installation:

Aluminum insert (1) of window cavity seal (2) must not be damaged.

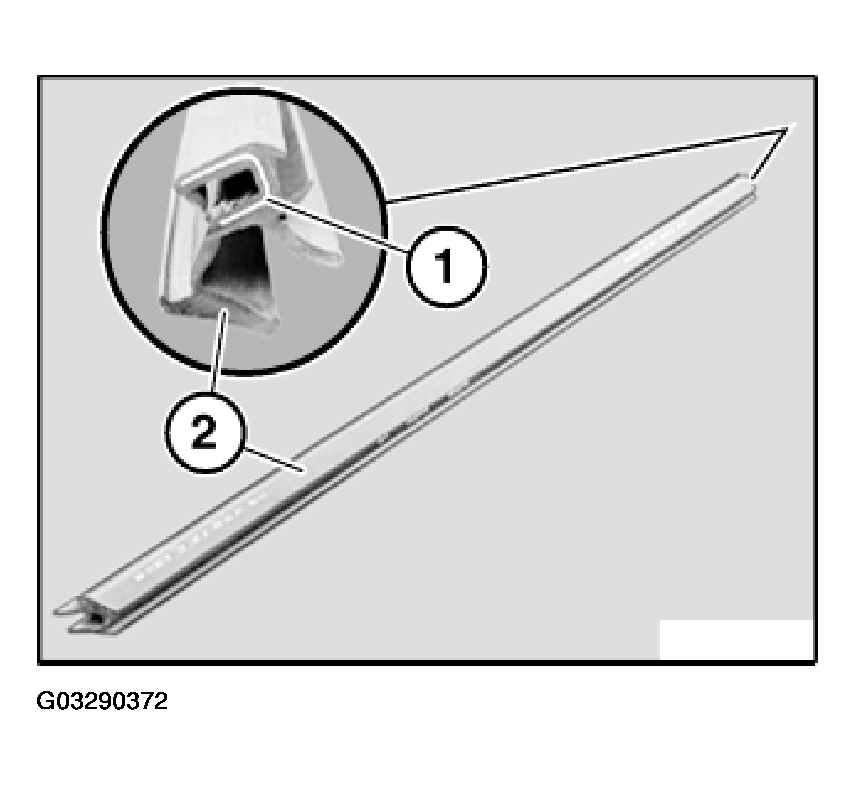

Fig 2: Identifying Aluminum Insert Of Window Cavity Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .
