51 21 280 Removing and installing or replacing door brake on left or right front door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close door windows
Detach door brake from door pillar, refer to 51 21... RELEASING DOOR RETAINER FROM LEFT OR RIGHT DOOR PILLAR
Remove function carrier, refer to 51 21 035 REMOVING AND INSTALLING/REPLACING FUNCTION CARRIER ON LEFT OR RIGHT FRONT DOOR , 51 22 035 REMOVING AND INSTALLING FUNCTION CARRIER (WITHOUT ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR or 51 22 435 REMOVING AND INSTALLING FUNCTION CARRIER (WITH ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR

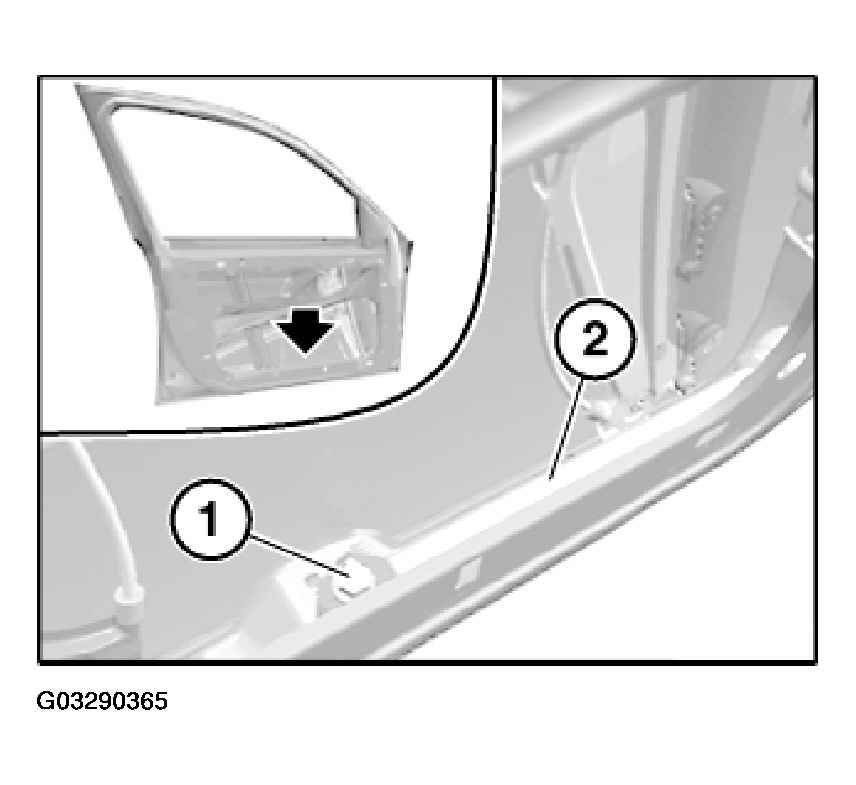

Release screw (1) and remove door brake (2).

Fig 1: Removing Door Brake

Courtesy of BMW OF NORTH AMERICA, INC.

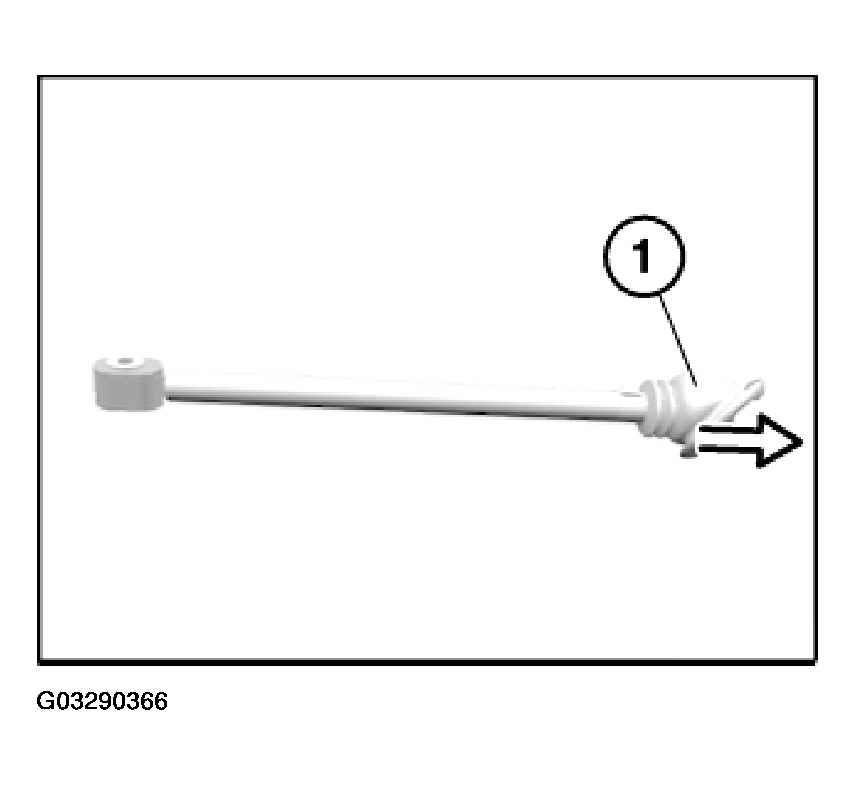

If necessary, detach seal (1).

Fig 2: Detaching Seal

Courtesy of BMW OF NORTH AMERICA, INC.
