26 11 160 Replacing constant-velocity joint for propeller shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

23 1 040
24 1 040
26 1 070
26 1 110

Remove propeller shaft. Refer to 26 11 000 Removing And Installing Complete Propeller Shaft .

Lift out retainer.

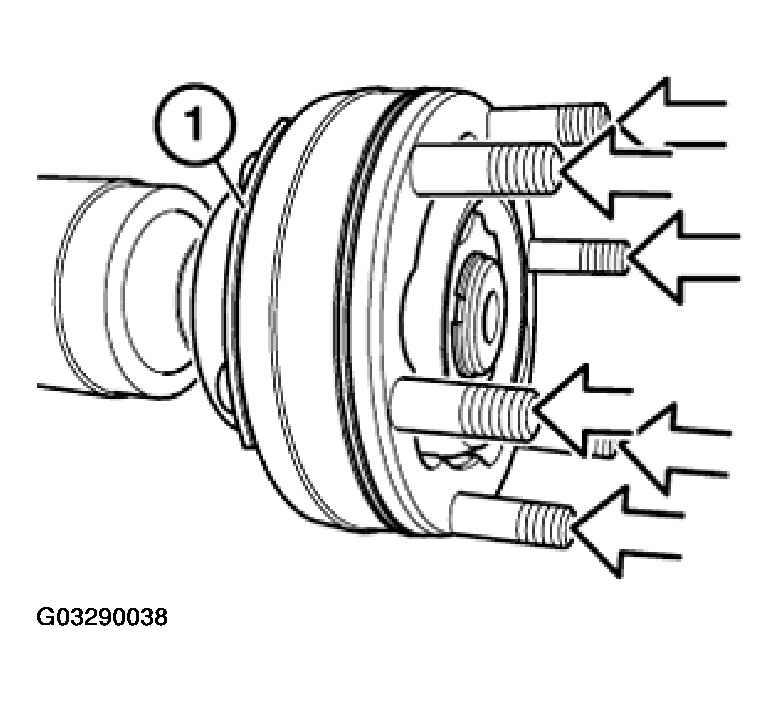

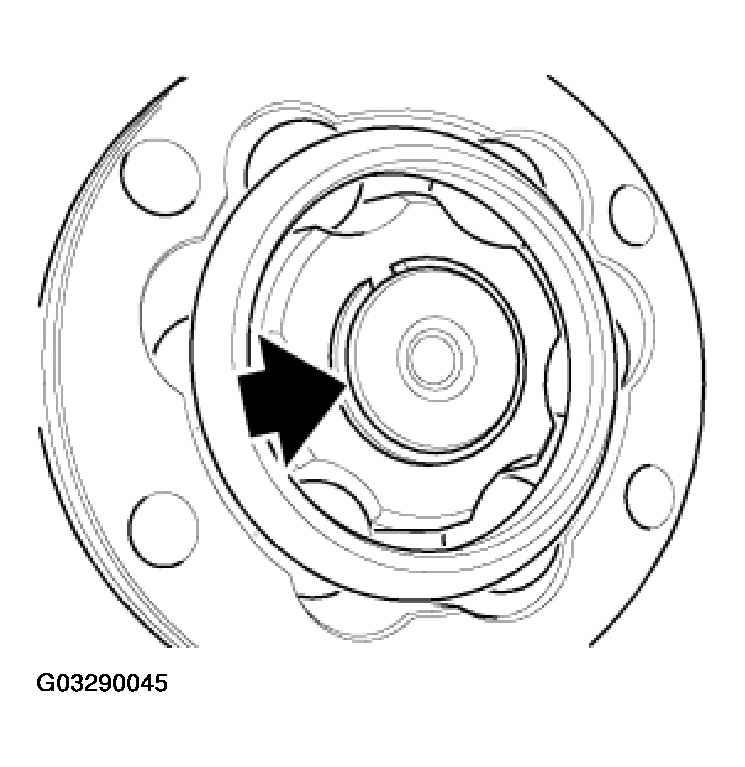

Fig 1: Locating Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace retaining ring.

Drive out knurled pin.

Installation:

Install shims (1).

Fig 2: Identifying Shims

Courtesy of BMW OF NORTH AMERICA, INC.

Press gaiter off constant velocity joint.

Installation:

Inject new grease into constant velocity joint from rubber gaiter and flange sides.

Insert sealing washer (1) in constant velocity joint.

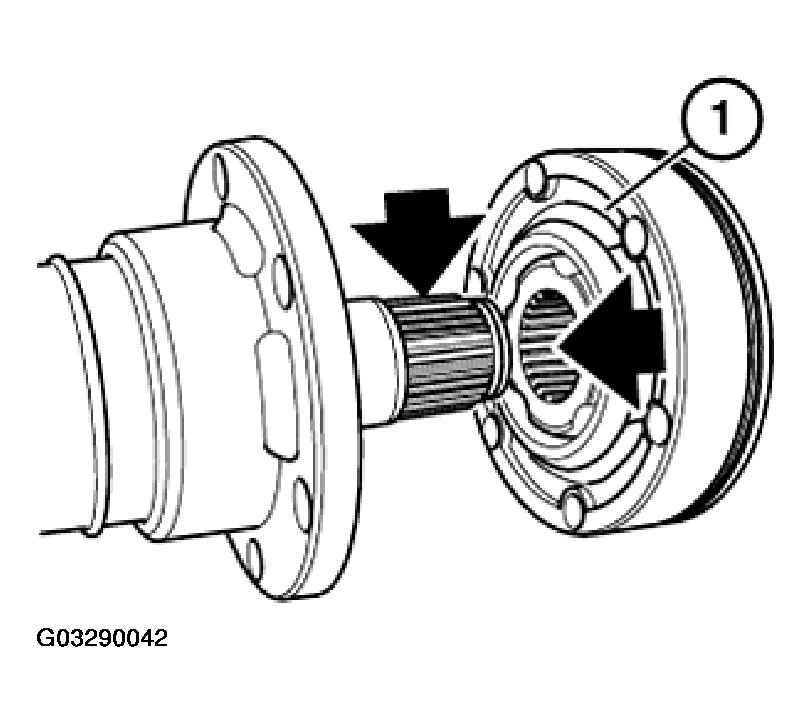

Fig 3: Locating Sealing Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Detach constant velocity joint with special tool 26 1 070 or 26 1 110.

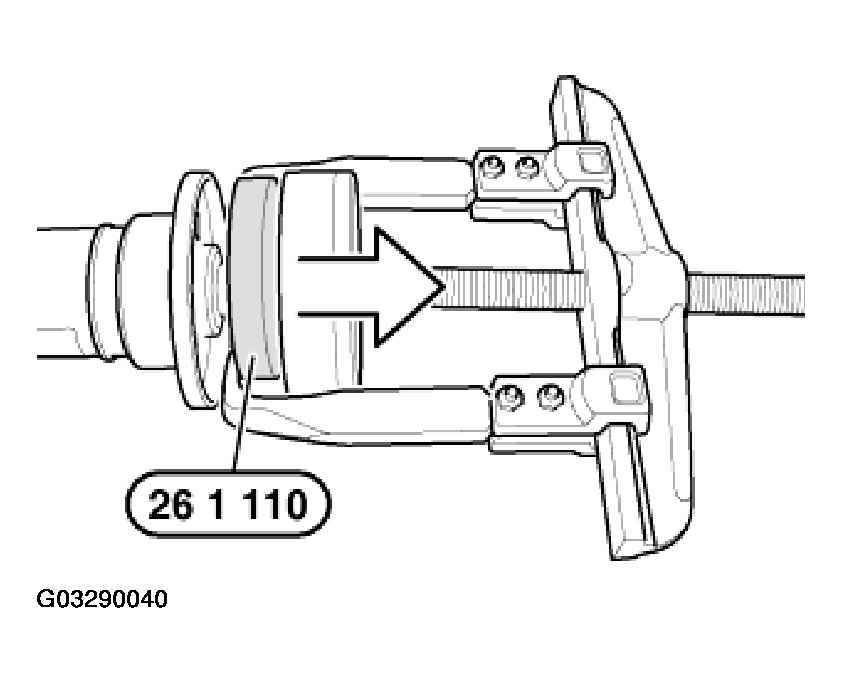

Fig 4: Detaching Constant Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Drive on constant velocity joint with special tool 23 1 040 or 24 1 040 as far as it will go.

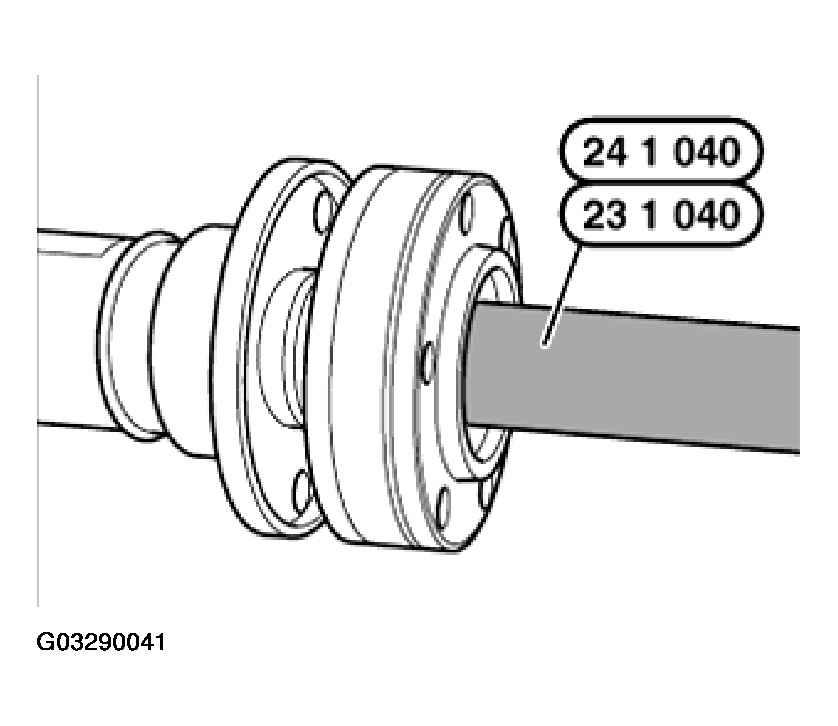

Fig 5: Driving On Constant Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

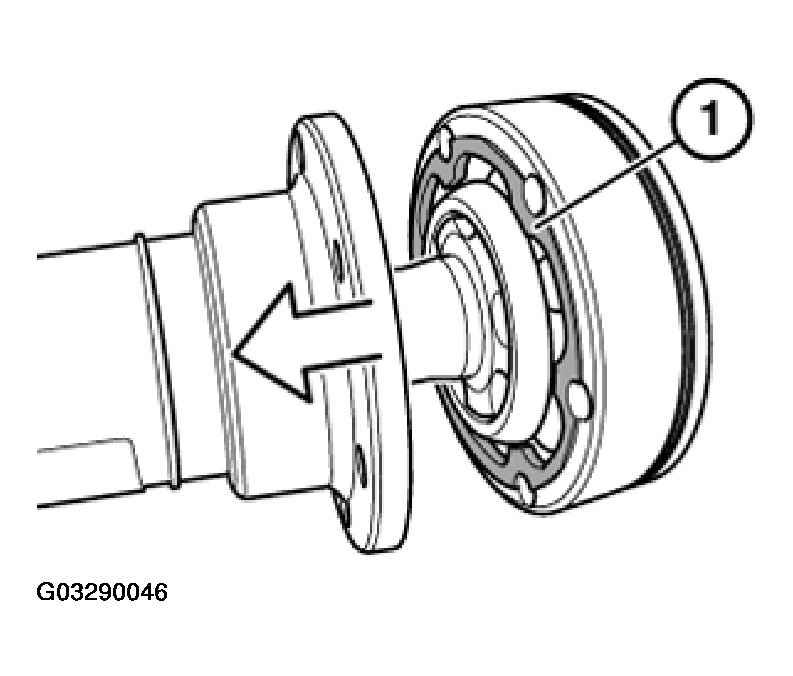

Shoulder (1) for sealing washer must point to gaiter.

Fig 6: Identifying Shoulder For Sealing Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Toothing must be free from grease.

Thread locking: apply Loctite 648.

IMPORTANT: Keep Loctite out of ball paths.
Clean toothing and apply a light coating of oil.

Special tools required:

23 1 160
26 1 110
26 1 121
26 1 122
31 2 102
31 2 104

Necessary preliminary tasks:

Remove propeller shaft. Refer to 26 11 000 Removing And Installing Complete Propeller Shaft .

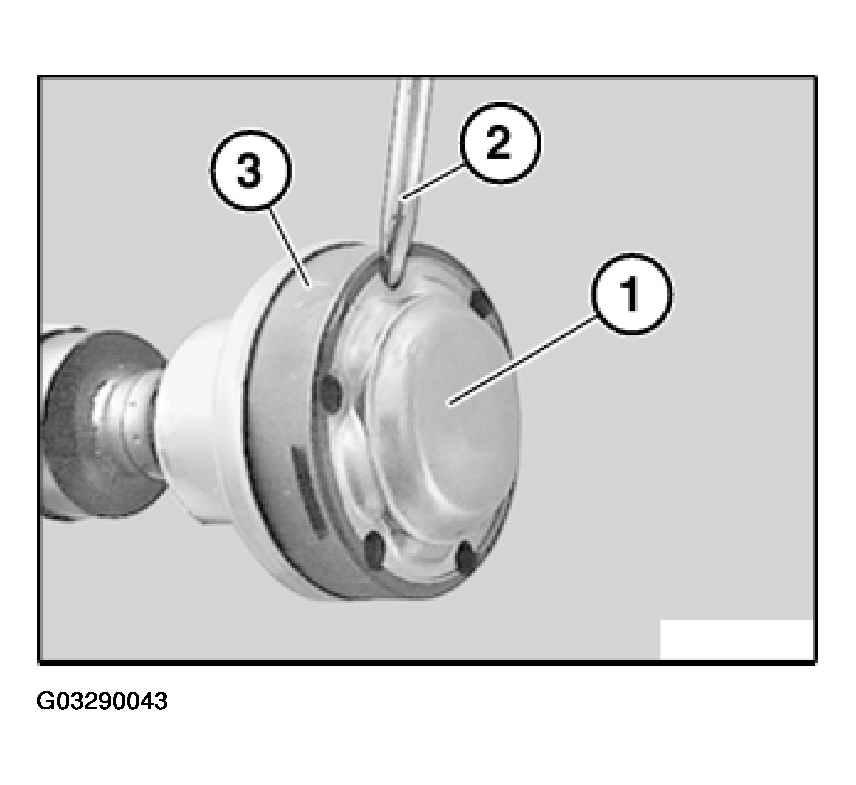

Lever sealing cap (1) with screwdriver (2) out of constant-velocity joint (3).

Fig 1: Levering Sealing Cap Out Of Constant-Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Replace sealing cap (1) with seal.

NOTE: Installation sequence

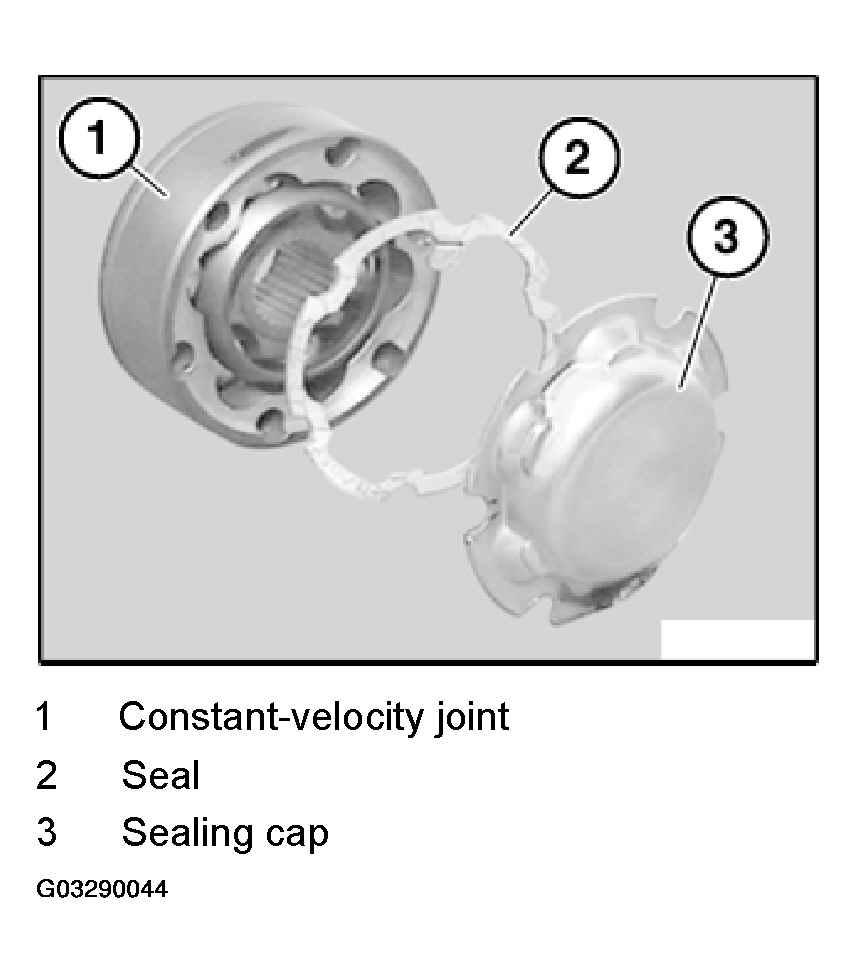

Fig 2: Identifying Installation Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off retainer

Installation:

Replace circlip.

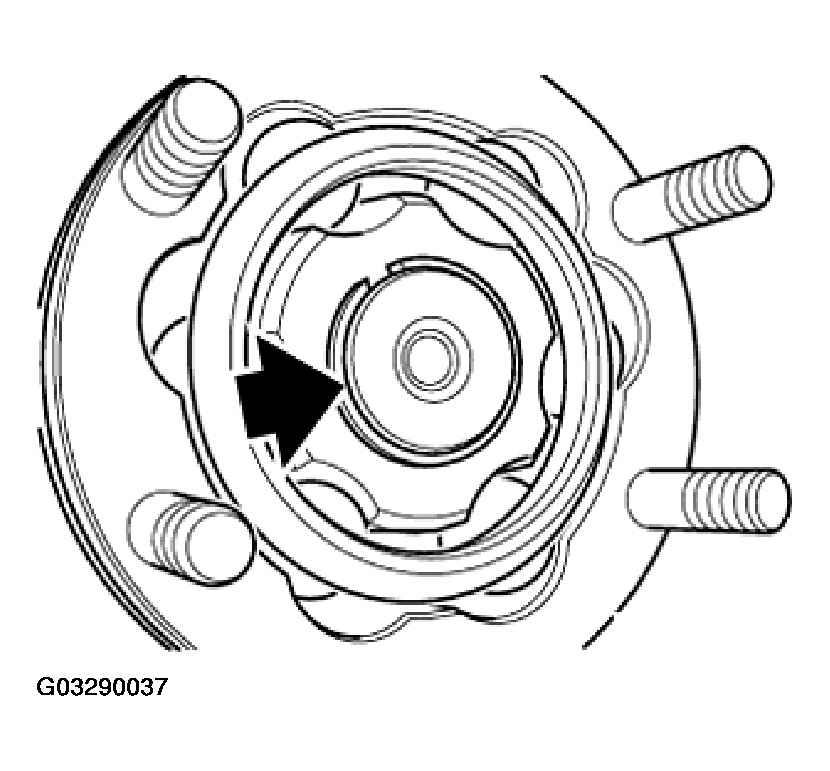

Fig 3: Replacing Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

Force cap off constant velocity joint.

Installation:

Insert sealing washer (1) into constant-velocity joint.

Fig 4: Inserting Sealing Washer Into Constant-Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.

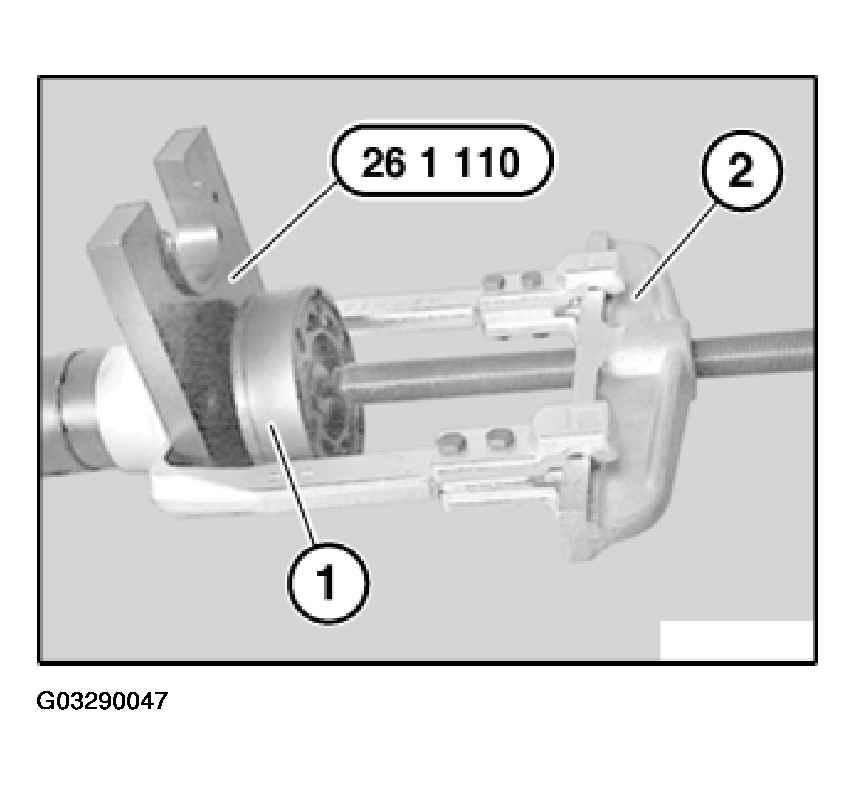

Detach constant-velocity joint (1) with special tool 26 1 110 and commercially available special tool (2).

Fig 5: Detaching Constant-Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1) and detach cap with gaiter.

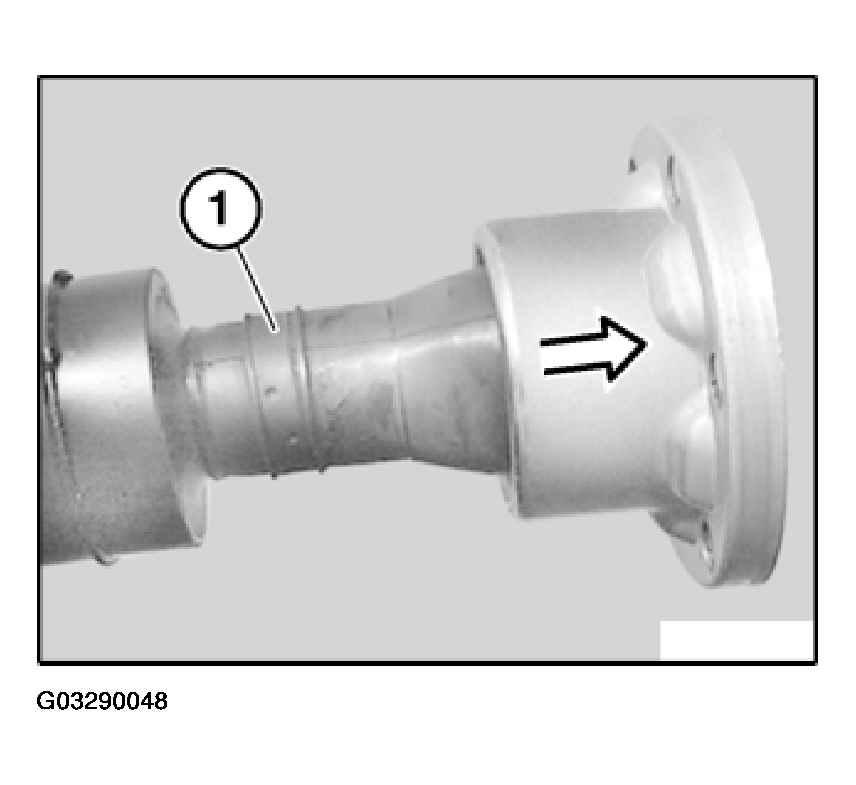

Fig 6: Detaching Cap With Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Push on new cap with gaiter.

NOTE: Do not tighten down clamp (1) yet.

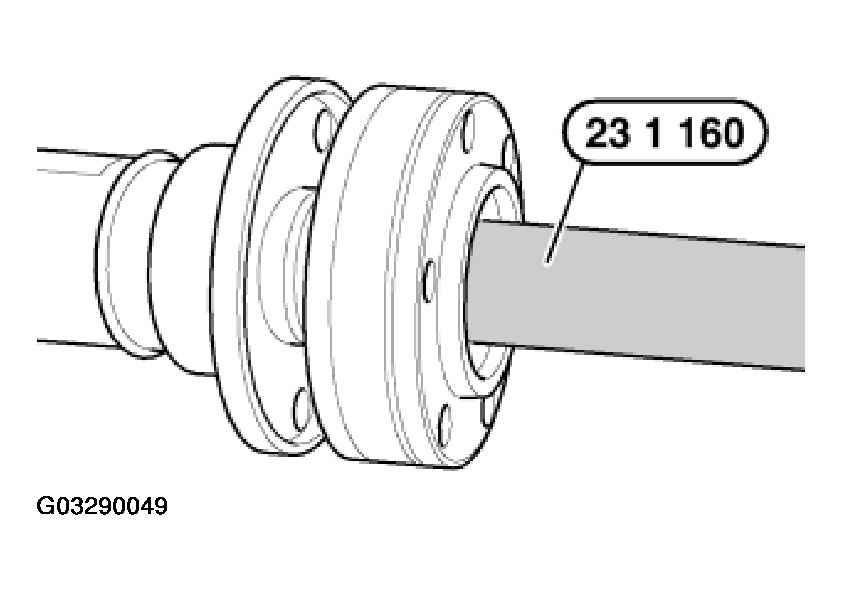

Mount constant-velocity joint with special tool 23 1 160 up to stop.

Fig 7: Mounting Constant-Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Align bores of constant velocity joint and cap to each other.

Tighten down clamp on gaiter.

NOTE: Keep toothing free of grease.
Inject new grease into constant velocity joint from rubber gaiter and flange sides.

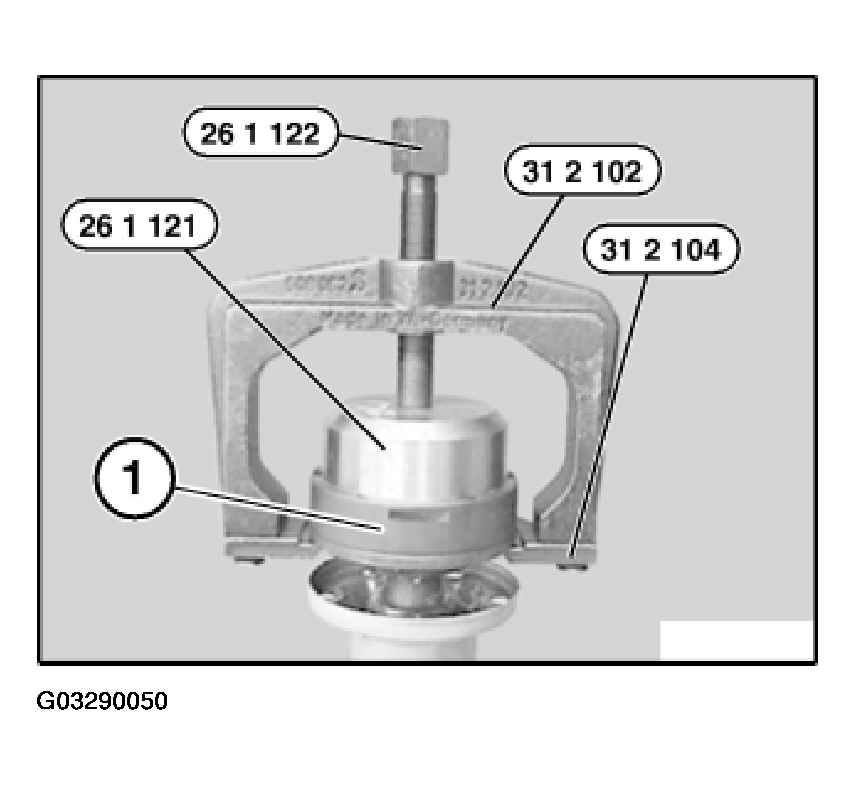

Press sealing cap with special tools 26 1 121, 26 1 122, 31 2 102 and 31 2 104 into constant-velocity joint (1).

Fig 8: Pressing Sealing Cap Into Constant-Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Align sealing cap and seal to bores of constant-velocity joint with screw.

NOTE: Prepare special tools 31 2 102 and 31 2 104.

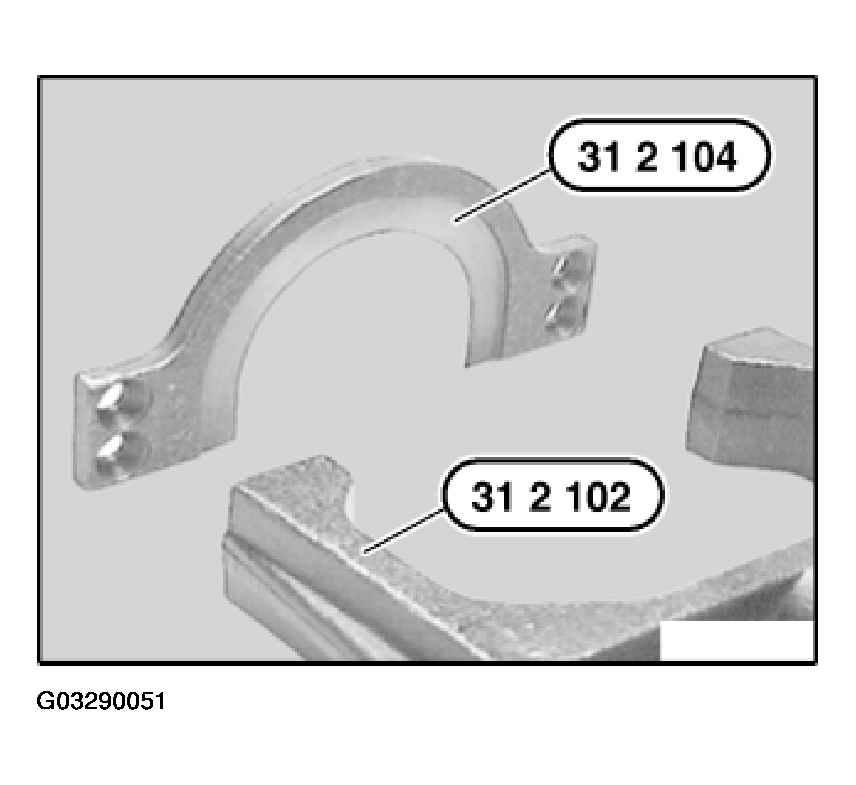

Fig 9: Preparing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Push cap (1) onto constant-velocity joint (2).

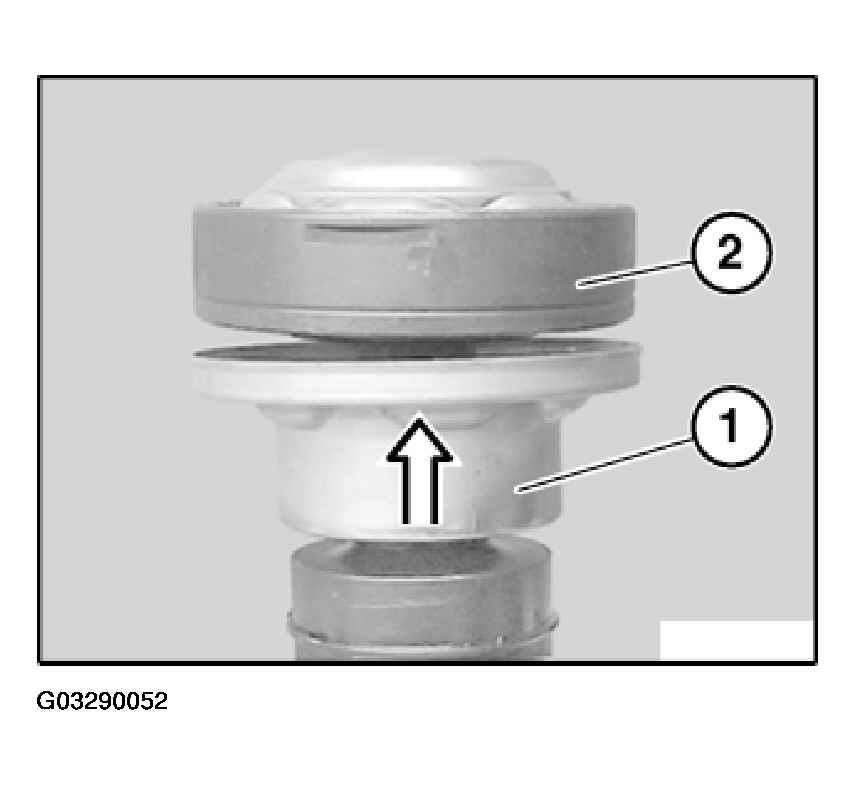

Fig 10: Pushing Cap Onto Constant-Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.
