26 12 001 Replacing complete propeller shaft center bearing (constant-velocity joint)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 7 500
24 0 090
24 1 050
33 1 307

Remove propeller shaft. Refer to 26 11 000 Removing And Installing Complete Propeller Shaft .

IMPORTANT: Propeller shaft is balanced as a unit.

Mark front propeller shaft relative to rear propeller shaft with paint stick.

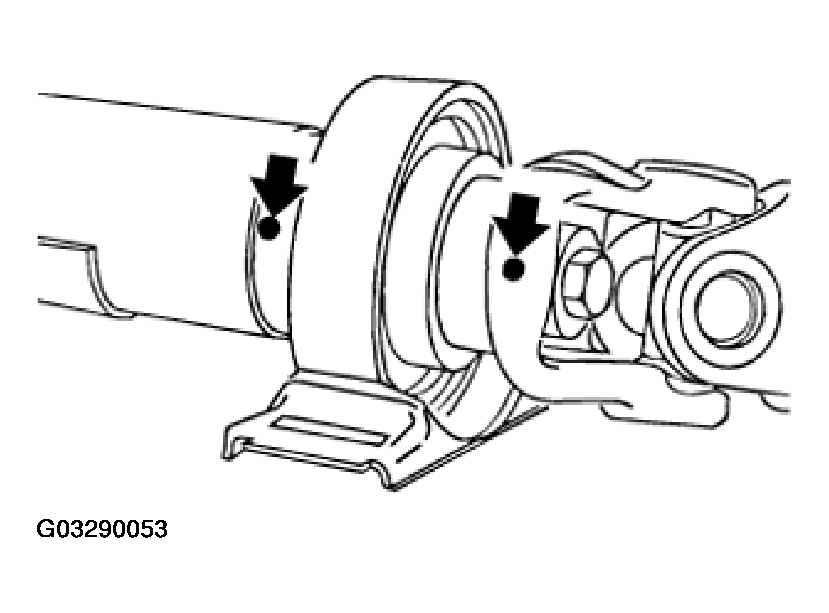

Fig 1: Marking Front Propeller Shaft

G03290053

Courtesy of BMW OF NORTH AMERICA, INC.

Marking by means of engraving which causes surface damage (e.g. center mark) is not permitted.

Release screw (1).

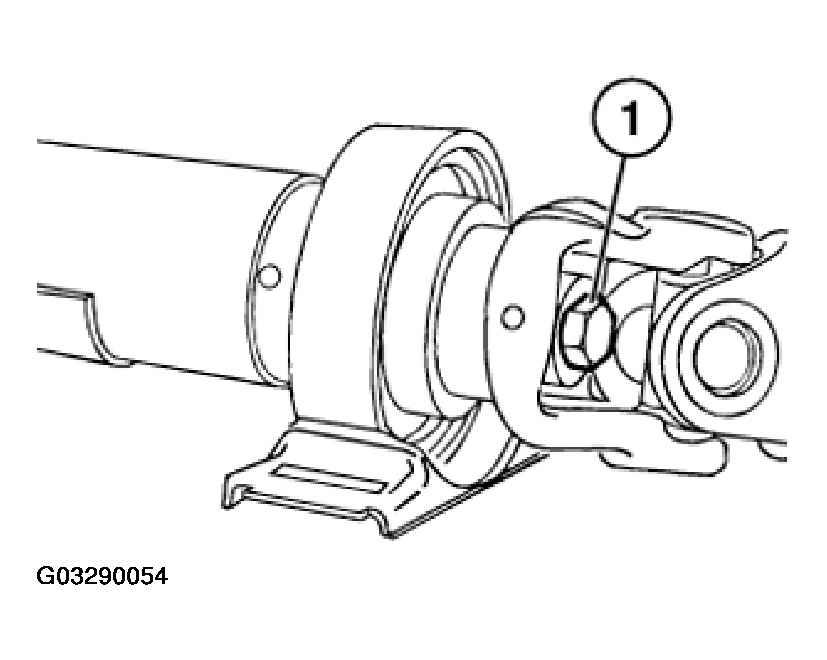

Fig 2: Releasing Screw

G03290054

Courtesy of BMW OF NORTH AMERICA, INC.

Pull propeller shaft apart.

Installation:

Thread free from grease.

When pushing shaft together, make sure that markings match up.

Insert bolt (1) with thread-locking liquid.

Tightening torque Refer to PROPELLER SHAFT - TIGHTENING TORQUES .

Remove shim and dust gaiter.

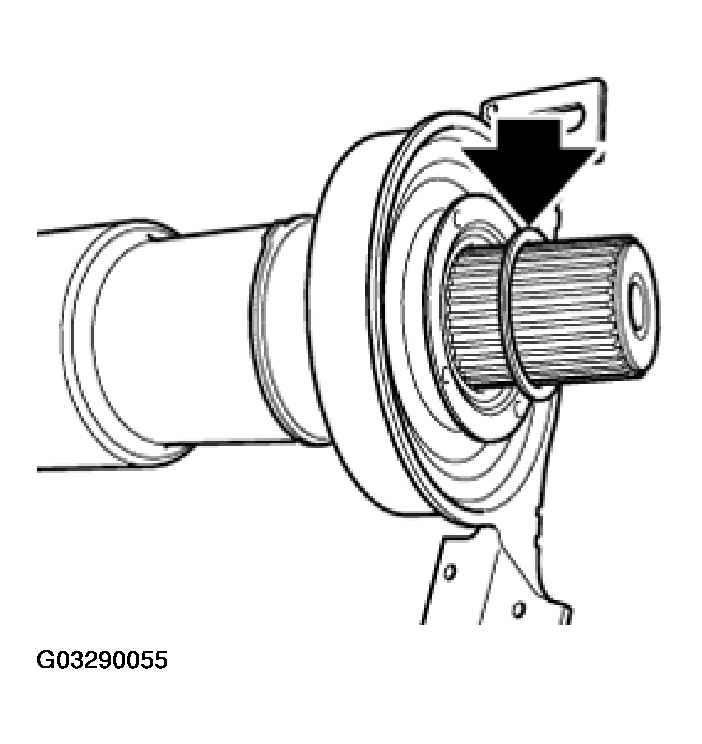

Fig 3: Removing Shim And Dust Gaiter

G03290055

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off center bearing with special tool 00 7 500 / 33 1 307 and commercially available puller.

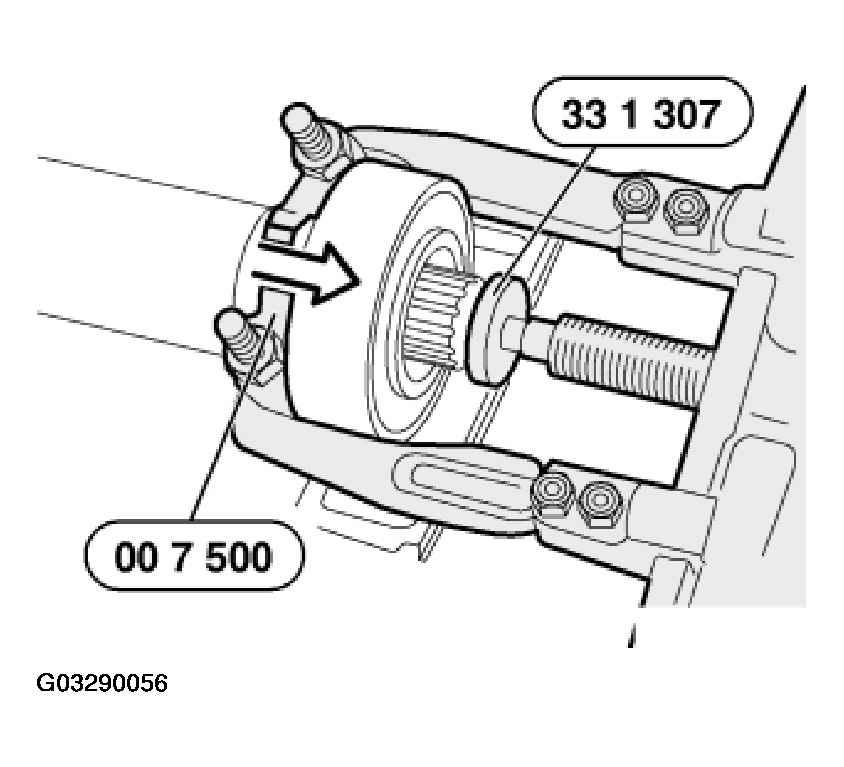

Fig 4: Pulling Off Center Bearing

G03290056

Courtesy of BMW OF NORTH AMERICA, INC.

Drive new center bearing firmly home with special tool 24 0 090. or 24 1 050.

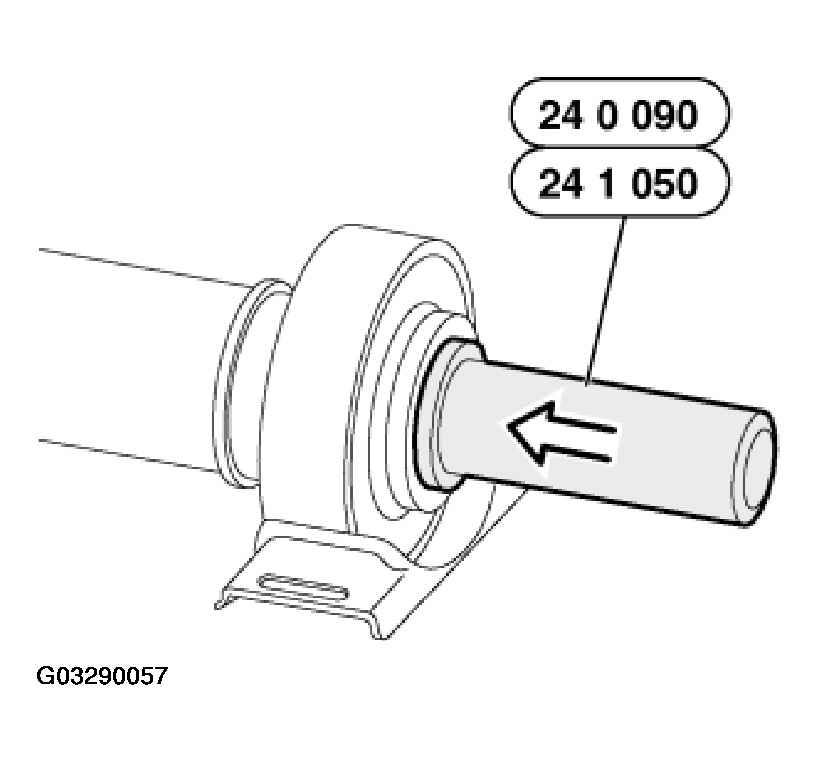

Fig 5: Driving In New Centre Bearing

G03290057

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Bearing inside diameter 30 mm, use special tool 24 0 090.
Bearing inside diameter 35 mm, use special tool 24 1 050.
