16 11 030 Removing and installing fuel tank

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

16 1 060

CAUTION: After installation of fuel tank/prior to first engine start-up:
Check the electrical resistance between the ground lug (tank filling pipe) and the wheel hub.
Measured value approx. 0.6 Ω
Fill fuel tank with min. 5 l fuel.

Draw off fuel from fuel tank. Refer to 16 00 005 Draining and filling fuel tank .

Remove rear right wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Remove rear right wheel arch trim. See 51 71... REMOVING AND INSTALLING/REPLACING FRONT BOTTOM RIGHT WHEEL ARCH TRIM

Remove heat shield (1) from tank.

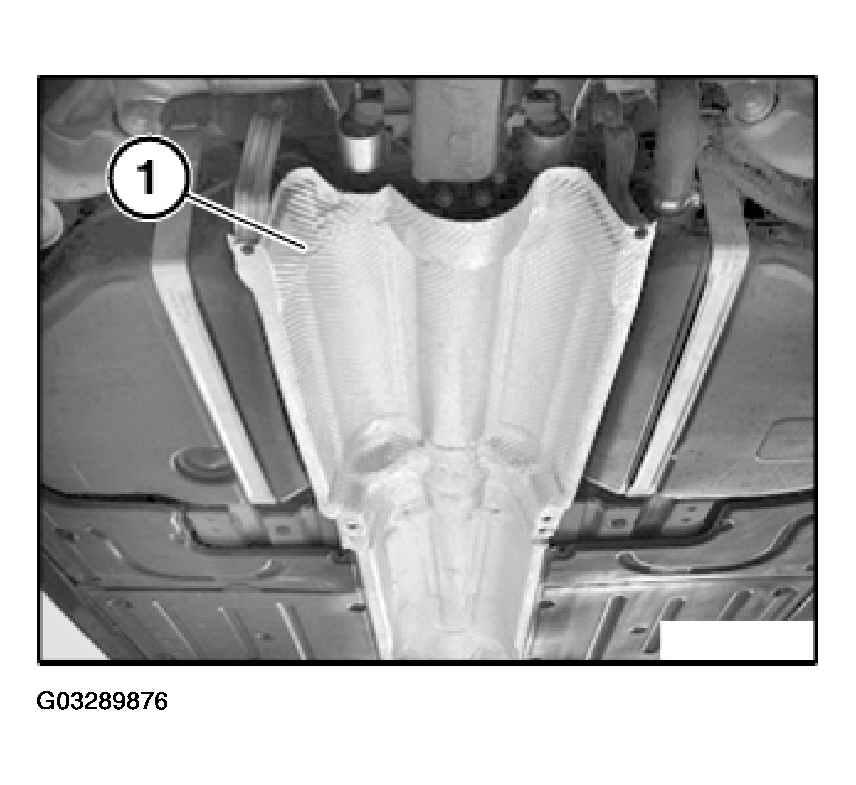

Fig 1: Removing Heat Shield From Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Remove complete propeller shaft. Refer to 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT .

Release screws (1).

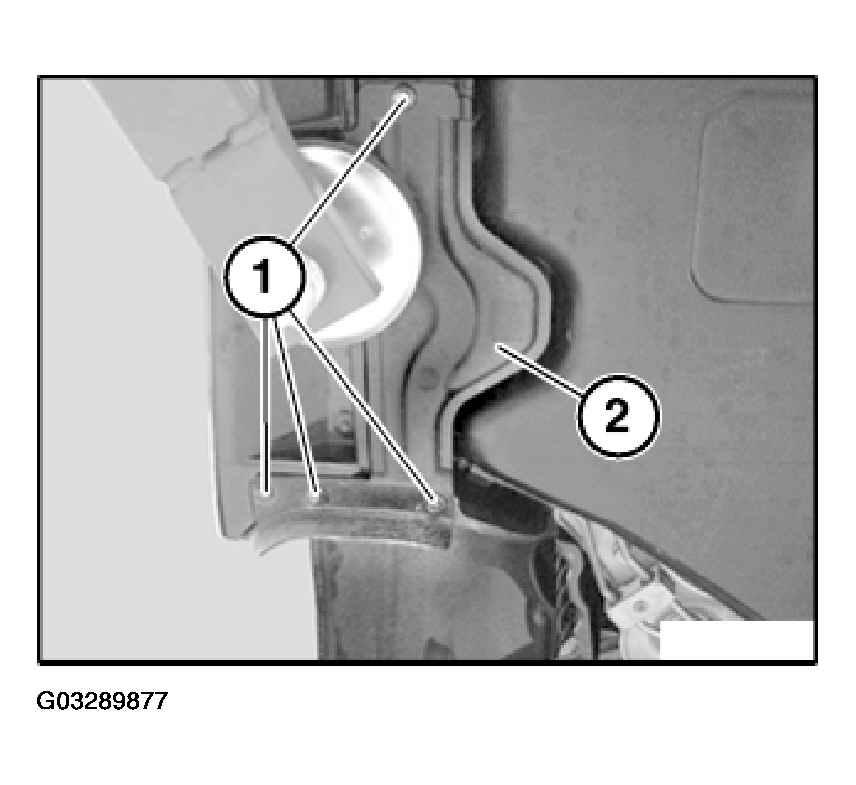

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lip (2) at rear left.

Release screws (1).

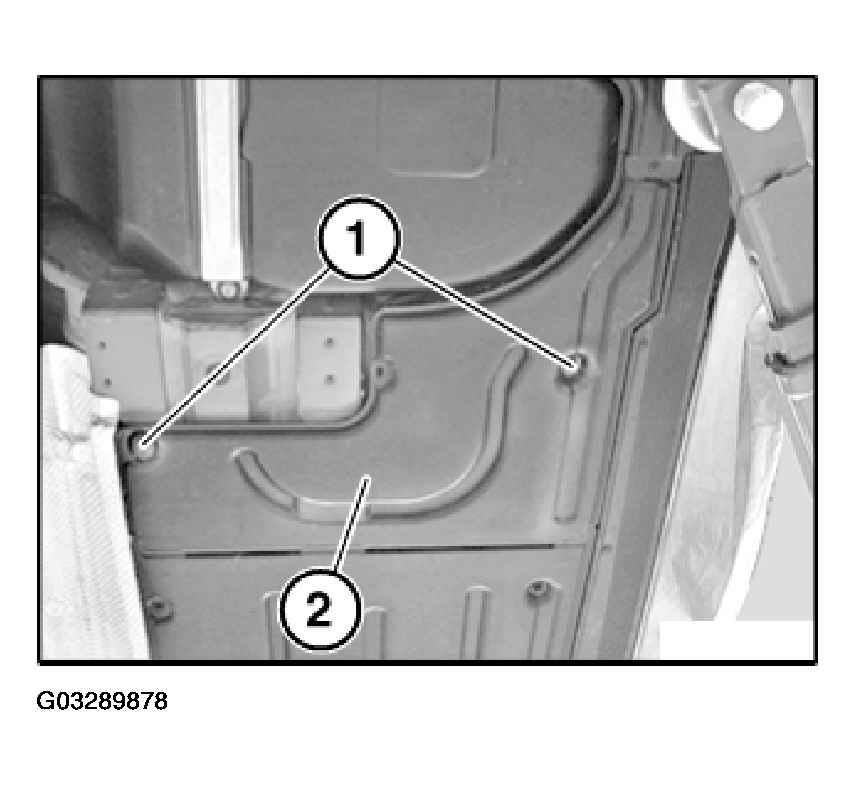

Fig 3: Removing Lower Panel At Rear Left

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lower panel (2) at rear left.

Unfasten hose clip (1).

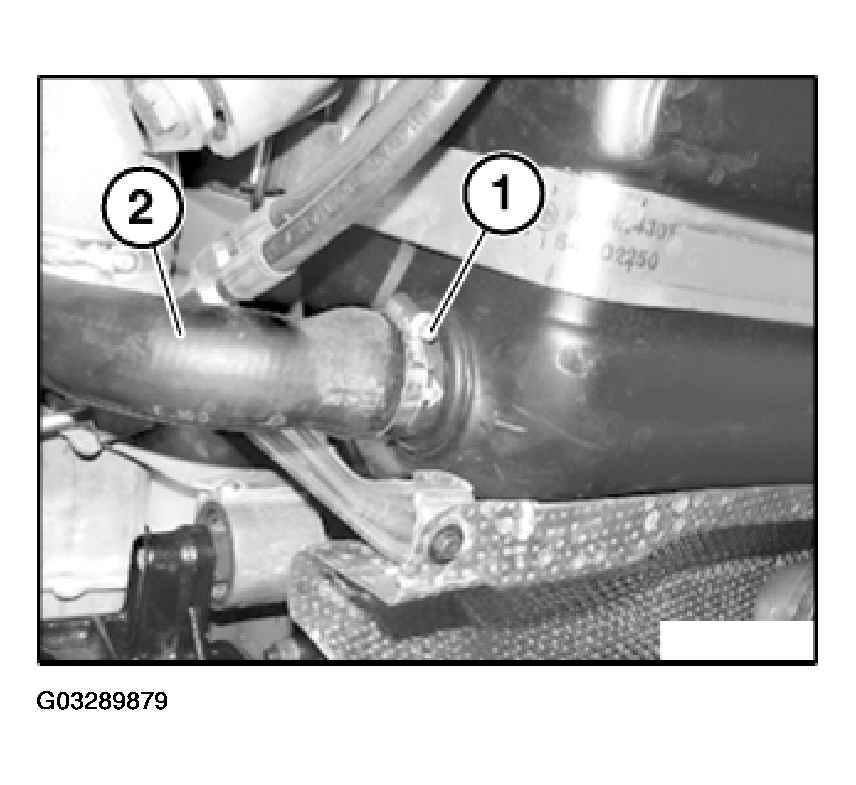

Fig 4: Detaching Hose From Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose (2) from tank.

Installation:

Replace hose clip.

Seal hose with special tool 16 1 060.

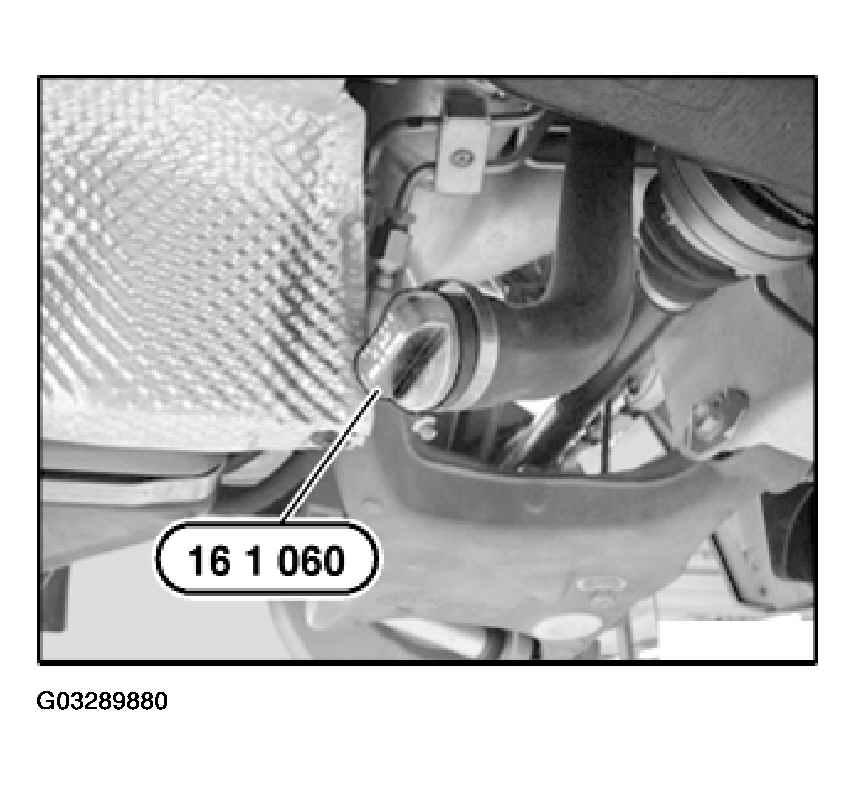

Fig 5: Sealing Hose With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamps (1 and 2).

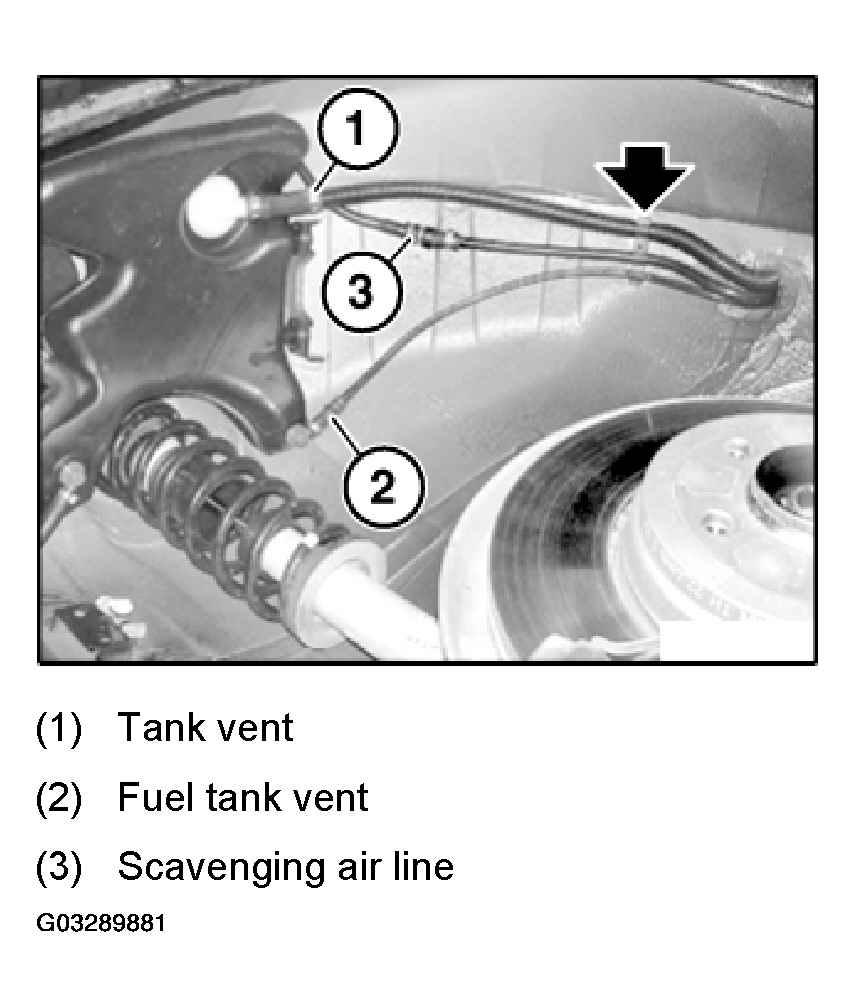

Fig 6: Releasing Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect lines and unclip from holder.

Installation:

Replace hose clips.

Unlock plug connections (1 and 2) and disconnect lines.

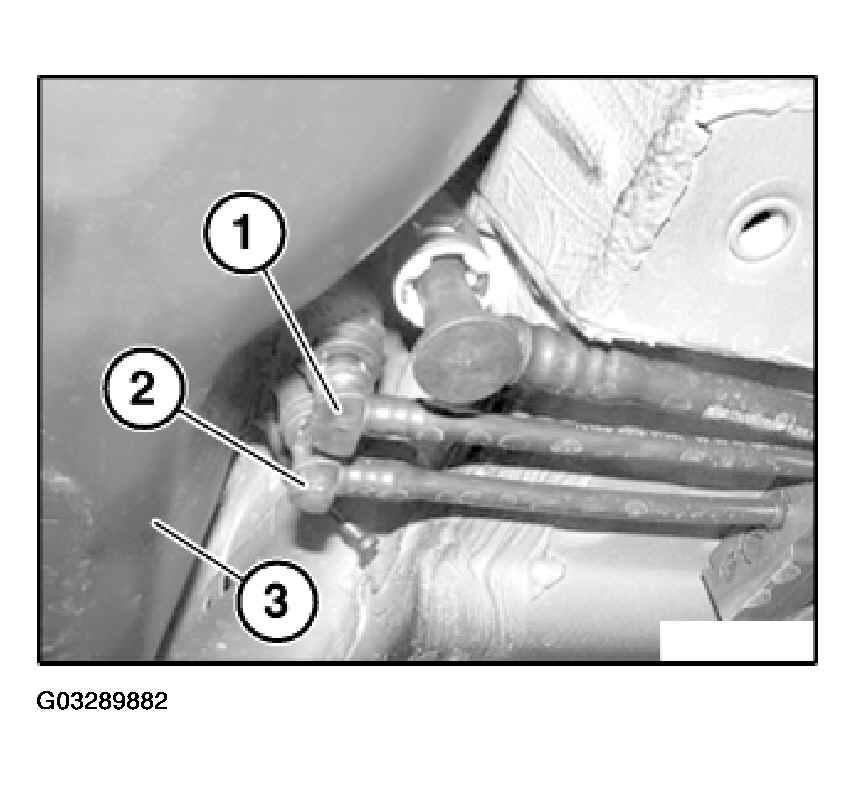

Fig 7: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Feed line
Return line

Release screw (1).

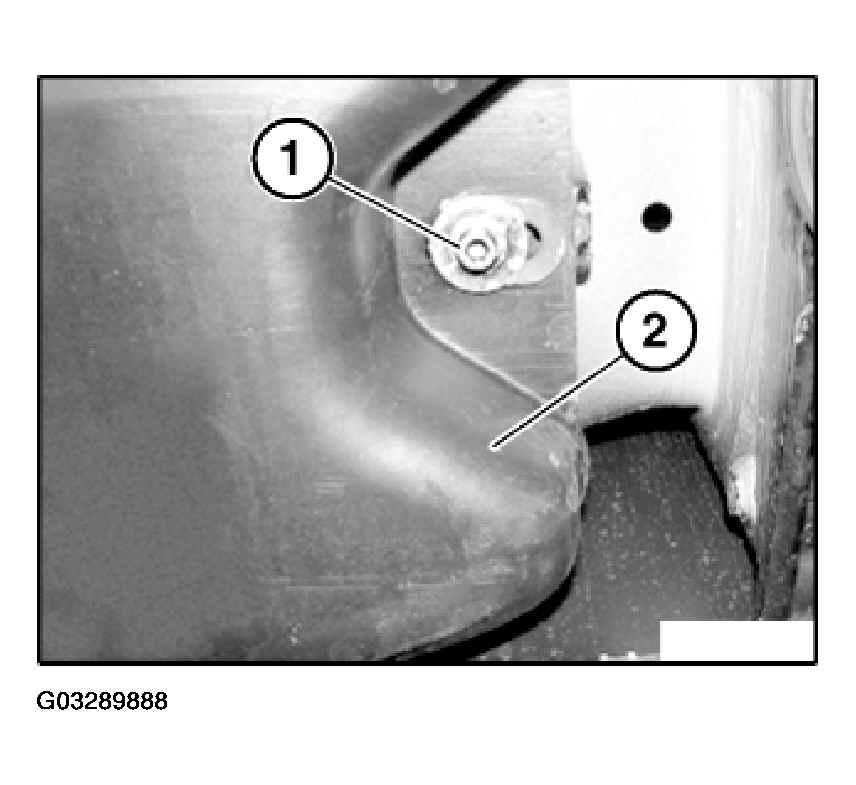

Fig 8: Removing Holder For Heat Shield On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holder for heat shield (2) on left and right.

Heavily support the fuel tank.

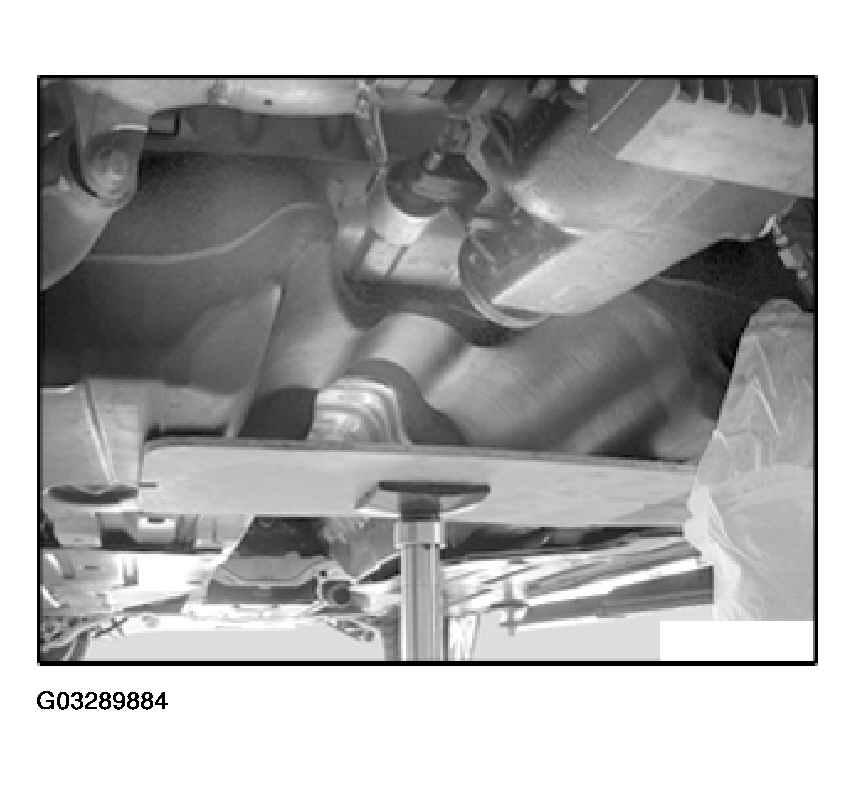

Fig 9: Supporting Fuel Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) for tightening straps (2) on left and right and remove tightening straps.

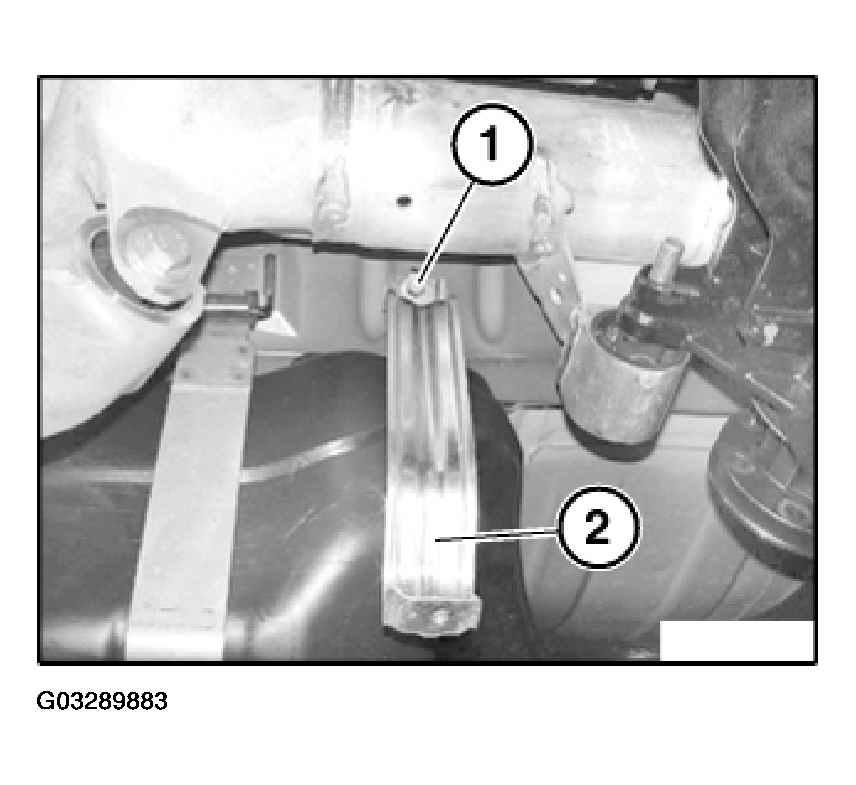

Fig 10: Removing Tightening Straps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note rubber mount with spacer bush.

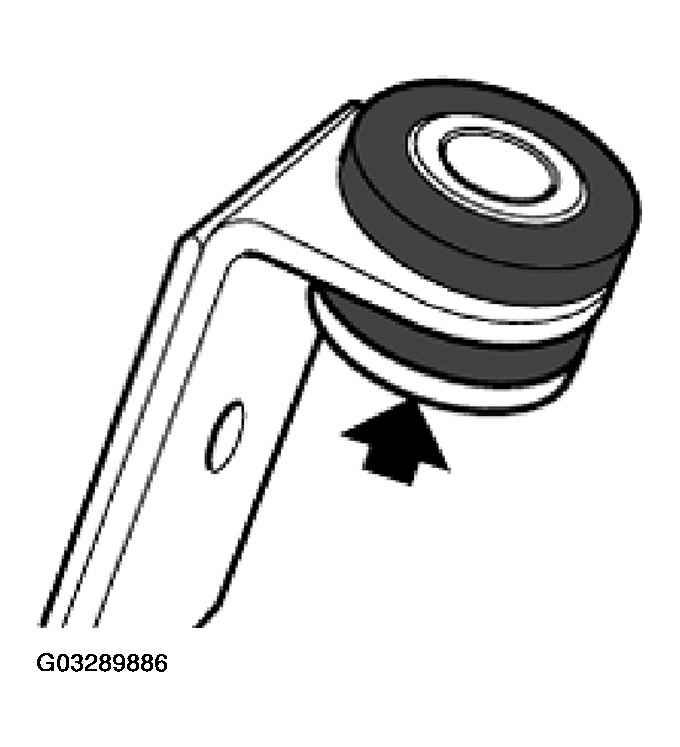

Fig 11: View Of Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Wide collar on spacer bush faces towards screw head.

Tightening torque, 16 11 1AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

Note shim in locating tab.

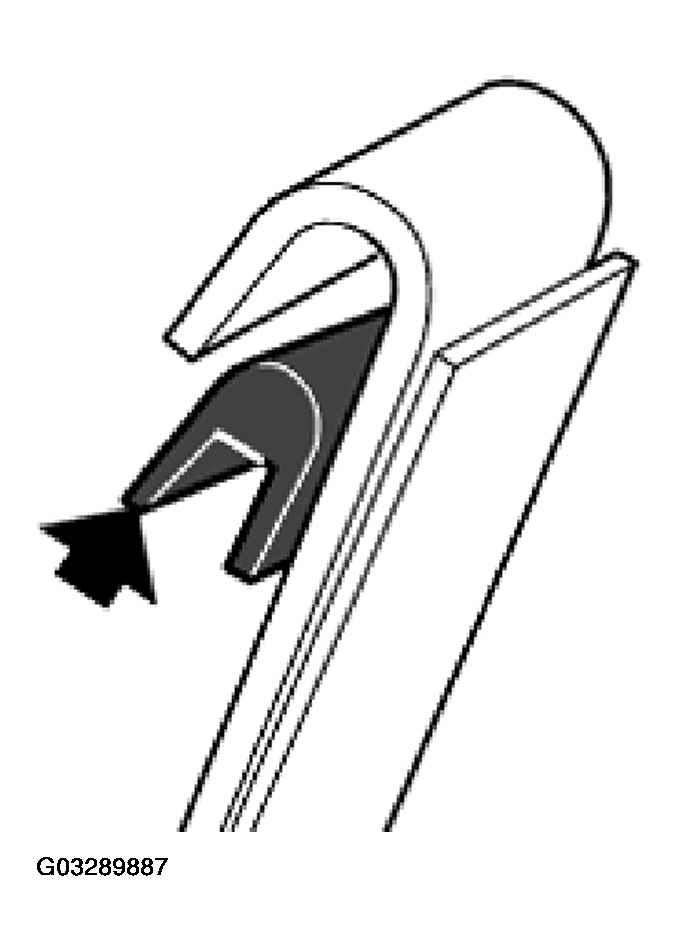

Fig 12: Locating Shim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) for tank mounting on left and right, lower tank (2) until hose and plug connections are accessible.

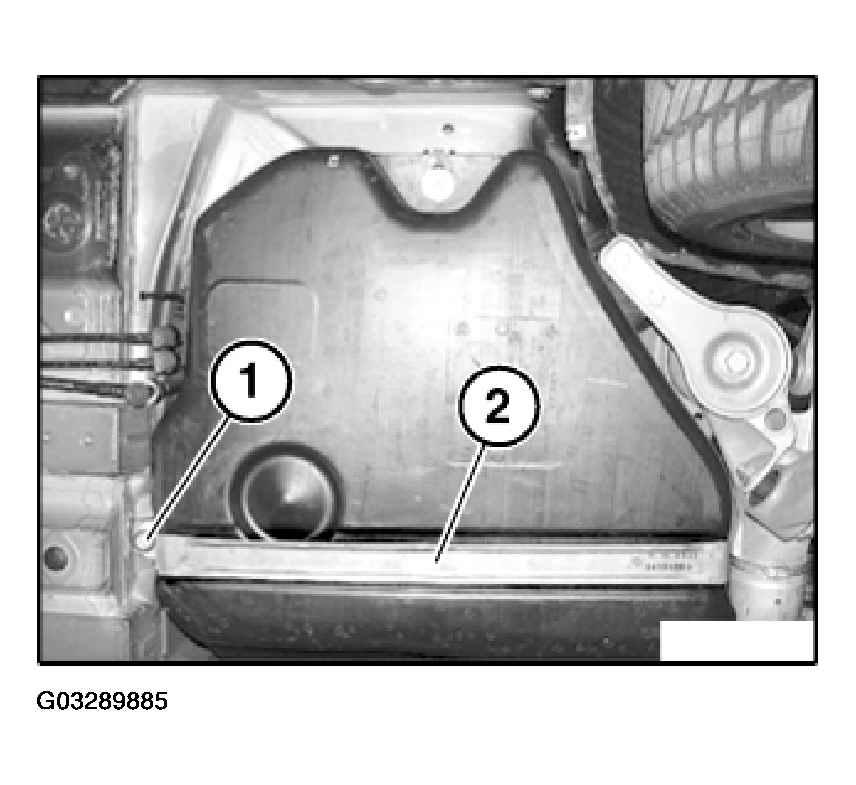

Fig 13: Releasing Screws For Tank Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Right half of tank,

Unlock plug (1) and detach from delivery unit.

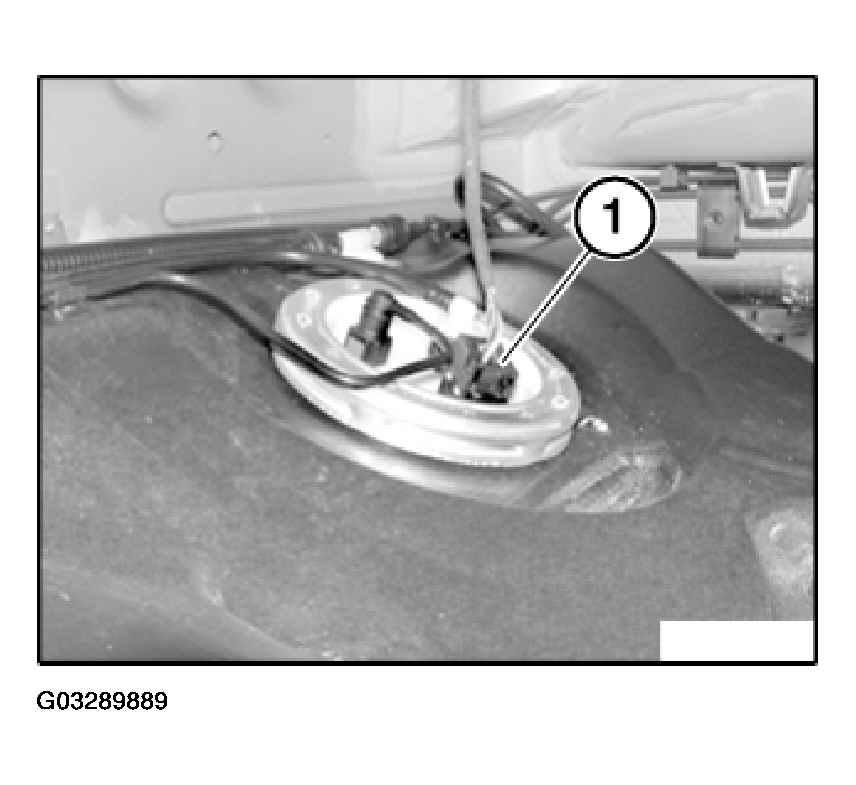

Fig 14: Unlocking Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Left half of tank,

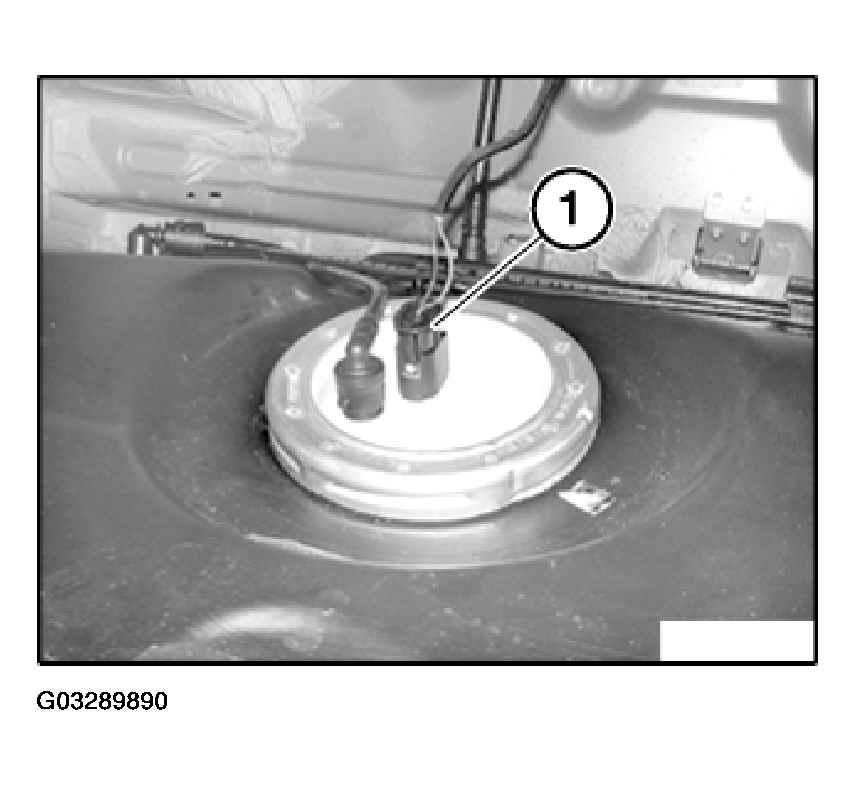

Unlock plug (1) and detach from fuel level sensor.

Fig 15: Unlocking Plug And Detaching From Fuel Level Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Lower the fuel tank and remove downwards.
