11 13 010 Removing and installing/replacing oil sump top section (N62): Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 17 0 030
OIL SUMP TOP SECTION (N62) WORK STEPS
| Work step | Note: |
|---|---|
| Remove design cover. | |
| Remove center of front wall. | |
| Remove fan clutch. (E65 only). Refer to 11 52 020 Removing and installing or replacing fan clutch (N62) . | |
| Remove fan cowl. (E65 only). Refer to 17 11 031 REPLACING FAN COWL (N62) . | |
| Remove electric fan. (E60 only). | |
| Remove alternator drive belt. Refer to 11 28 010 Replacing alternator drive belt (N62) . | |
| Remove A/C compressor drive belt. Refer to 11 28 050 Replacing A/C compressor drive belt with belt tensioner (N62) . | |
| Remove acoustic cover. | |
| Secure engine in installation position with special tool. Refer to Securing engine in installation position with special tool (N62) . | |
| Release nuts on left and right engine mounts at top. | |
| Remove reinforcement plate. Refer to SUSPENSION - FRONT . | |
| Drain off engine oil. Refer to 00 00 610 Engine oil service (N62) . | |
| Remove lower oil sump section. Refer to 11 13 020 Removing and installing/replacing oil sump bottom section (N62) . | |
| Lower front axle support. Refer to FRONT AXLE SUPPORT . | Note: To remove the oil sump, you must lower the front axle support. There is no need to perform a front axle alignment check. |
| Release power steering pump on bracket, hydraulic lines remain connected. Secure power steering pump against falling down. | |
| Unlock and disconnect hydraulic lines from heat exchanger with special tool 17 0 030. Release hydraulic lines on automatic transmission. Release holder for hydraulic lines. Remove hydraulic lines. |
Installation location: on radiator at bottom left. Transmission fluid emerges when hydraulic lines are released. Catch and dispose of escaping transmission fluid. Installation: Check fluid level in automatic transmission; top up if necessary. |
| Unclip cable duct of oxygen sensors from automatic transmission. |

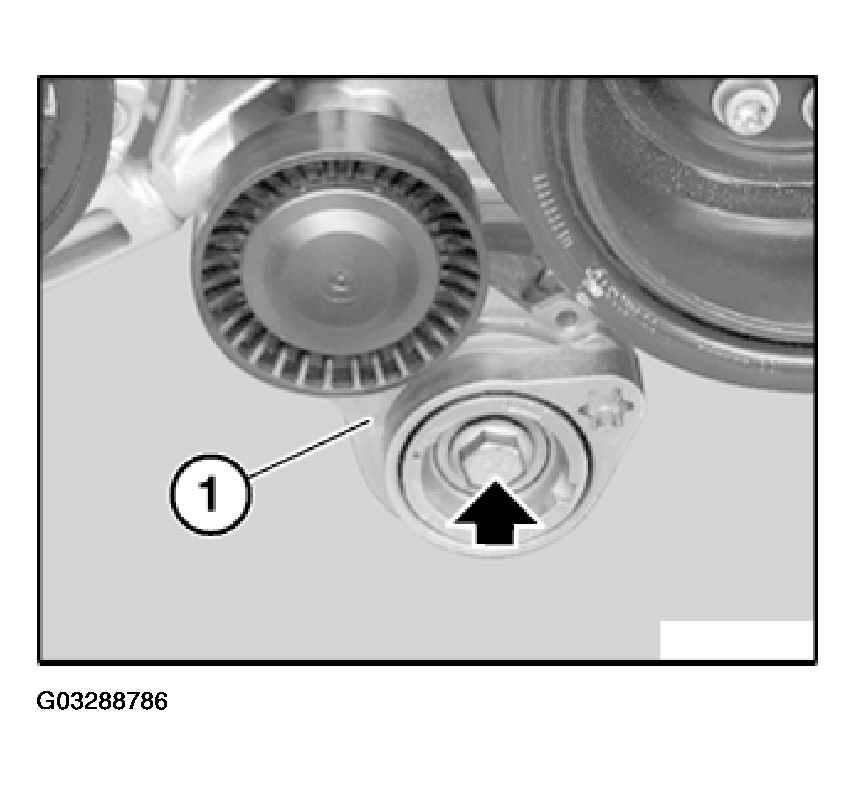

Release screw, remove tensioner (1) from A/C compressor drive belt (E65 only).

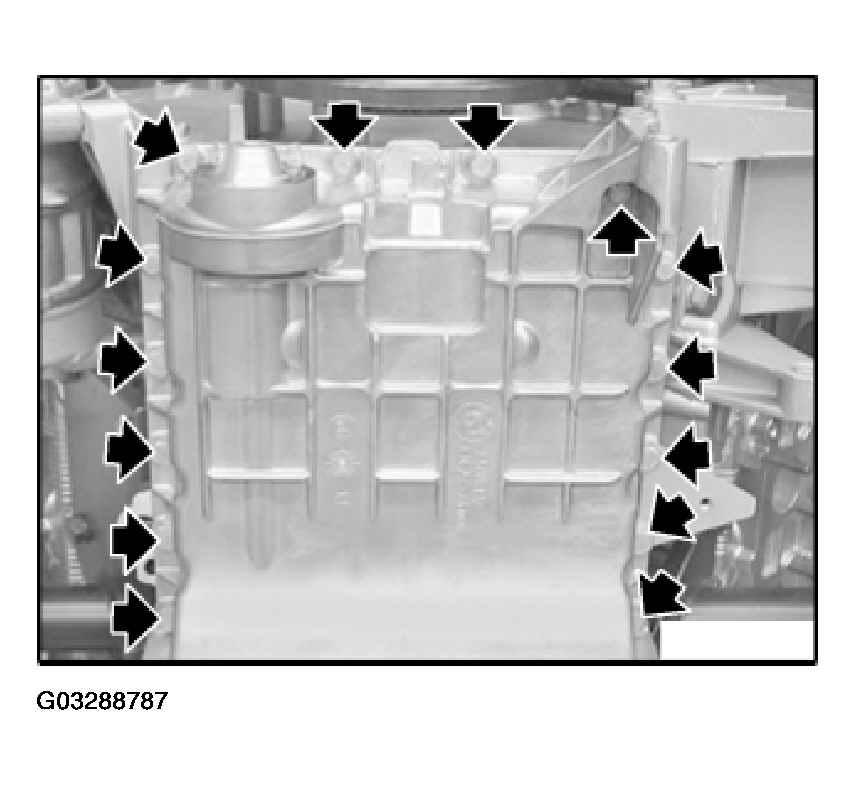

Unfasten screws.

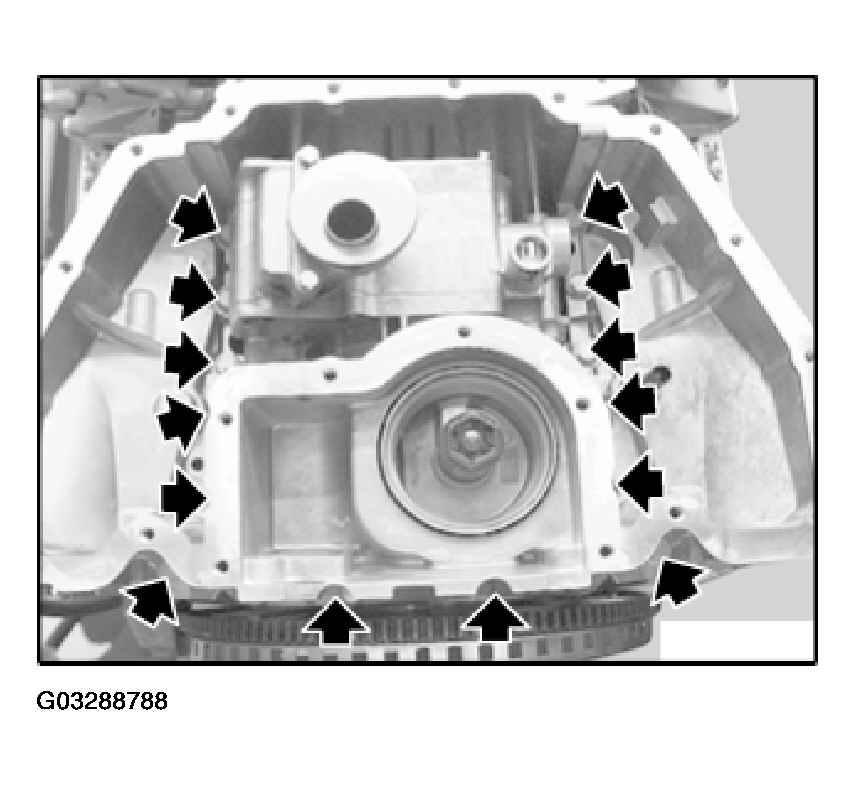

Release screws and remove oil sump top section.
