11 52 020 Removing and installing or replacing fan clutch (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 5 040
11 5 050

CAUTION: Left-hand threads.

Using special tool 11 5 050 brace against pulley and unfasten cap nut from water pump using special tool 11 5 040.

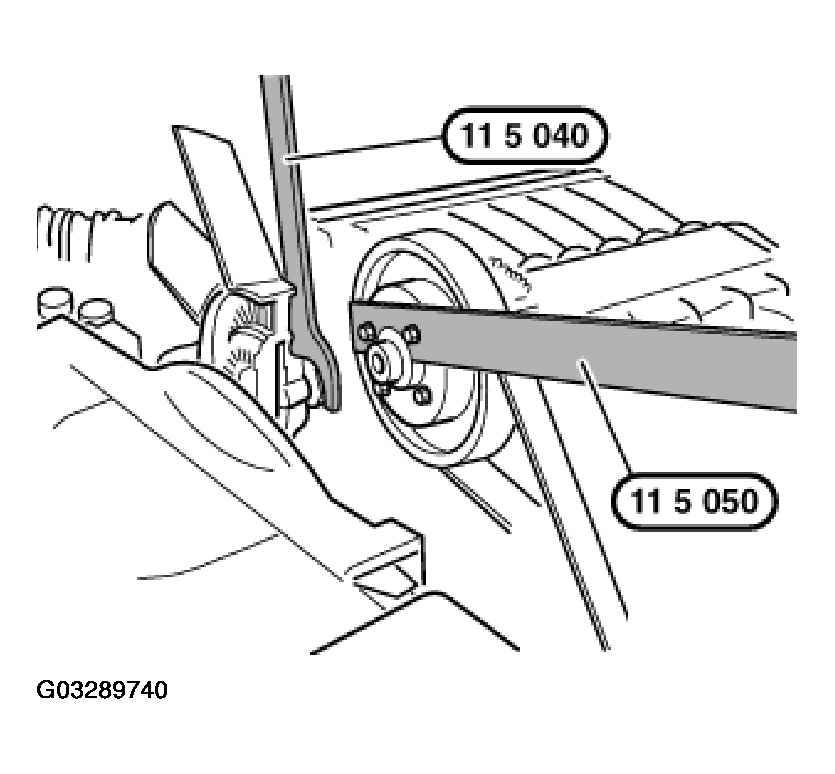

Fig 1: Removing Fan Wheel With Fan Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan wheel with fan coupling from water pump.

Installation:

Tighten down fan impeller using special tool 11 5 040.

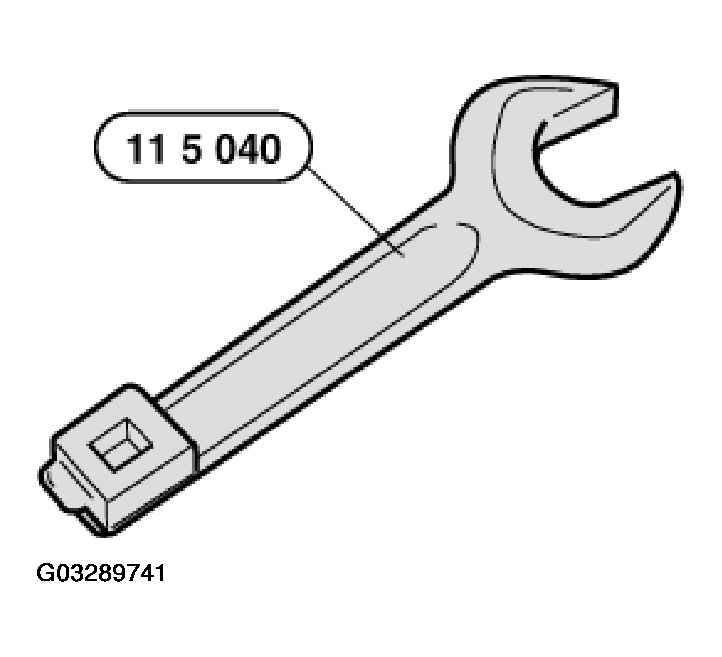

Fig 2: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 52 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

NOTE: When using special tool 115 040, 30 Nm on the torque wrench scale are equivalent to a tightening torque of 40 Nm.

Release screws, detach fan from fan clutch.

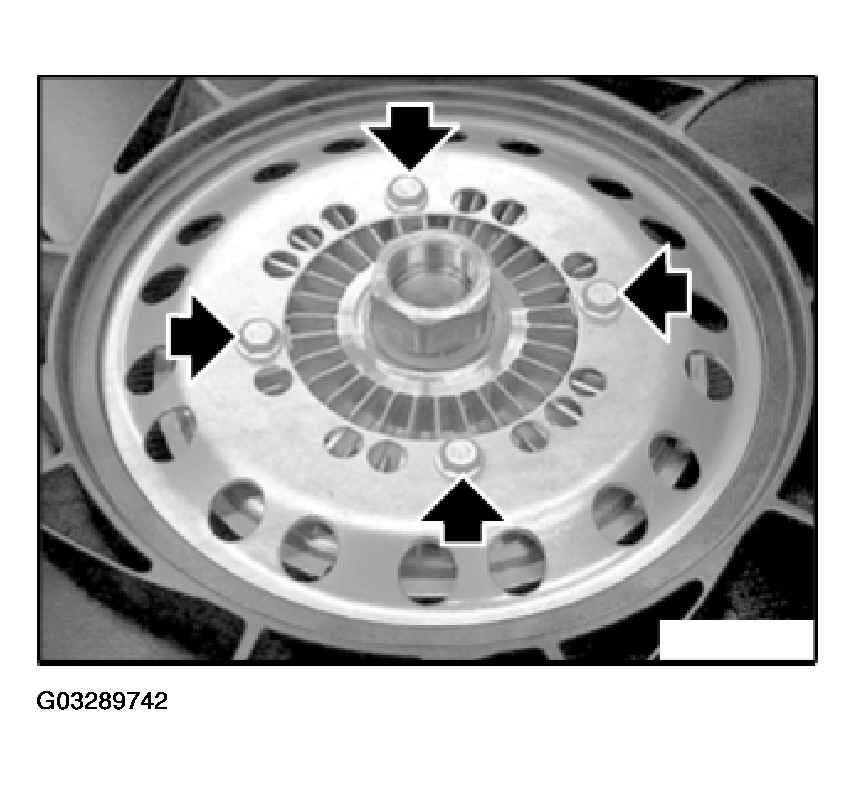

Fig 3: Detaching Fan From Fan Clutch

Courtesy of BMW OF NORTH AMERICA, INC.
