67 16 010 Removing and installing/replacing left headlight vertical aim adjuster (up to 09/2000)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lens/reflector. See 63 12 034 REMOVING AND INSTALLING/REPLACING LENS/REFLECTOR FOR LEFT HEADLIGHT (UP TO 09/2000) .

Detach high beam cover cap (1) and low beam cover (2) in direction of arrow.

Installation instructions:

Make sure high beam cover cap (1) and low beam cover (2) are correctly seated.

Fully release adjusting screws (3).

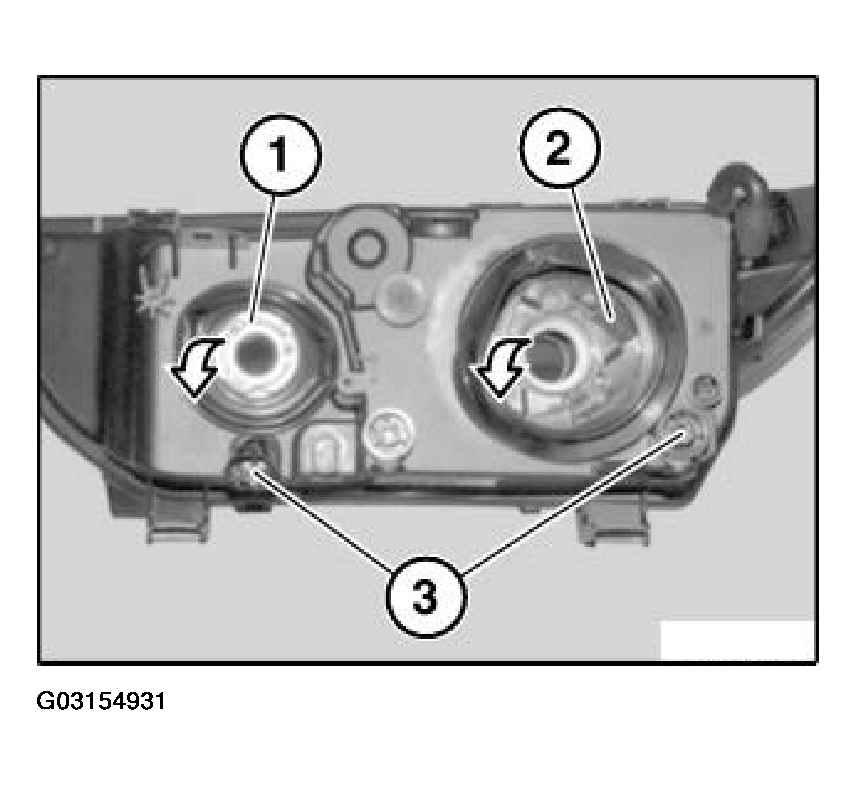

Fig 1: Removing High Beam Cover Cap And Low Beam Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 01/1997:

Detach insert (1) at bottom from interior headlight vertical aim adjuster in direction of arrow.

Installation:

Ensure insert (1) is correctly seated on interior headlight vertical aim adjuster.

From 01/1997:

In addition, turn lower holder through approx. 90° and lever out at headlight vertical aim adjuster underneath.

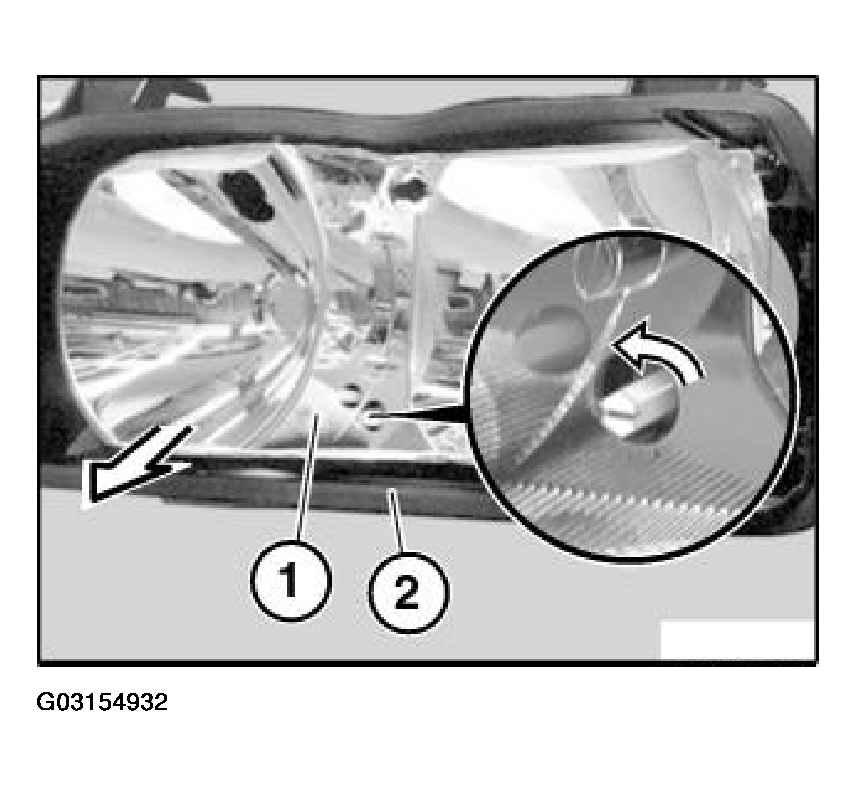

Fig 2: Detaching Insert At Bottom From Interior Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Pull insert (1) in direction of arrow out of headlamp housing (2).

Installation:

Make sure guides (1) and (2) are correctly seated in headlamp housing (3).

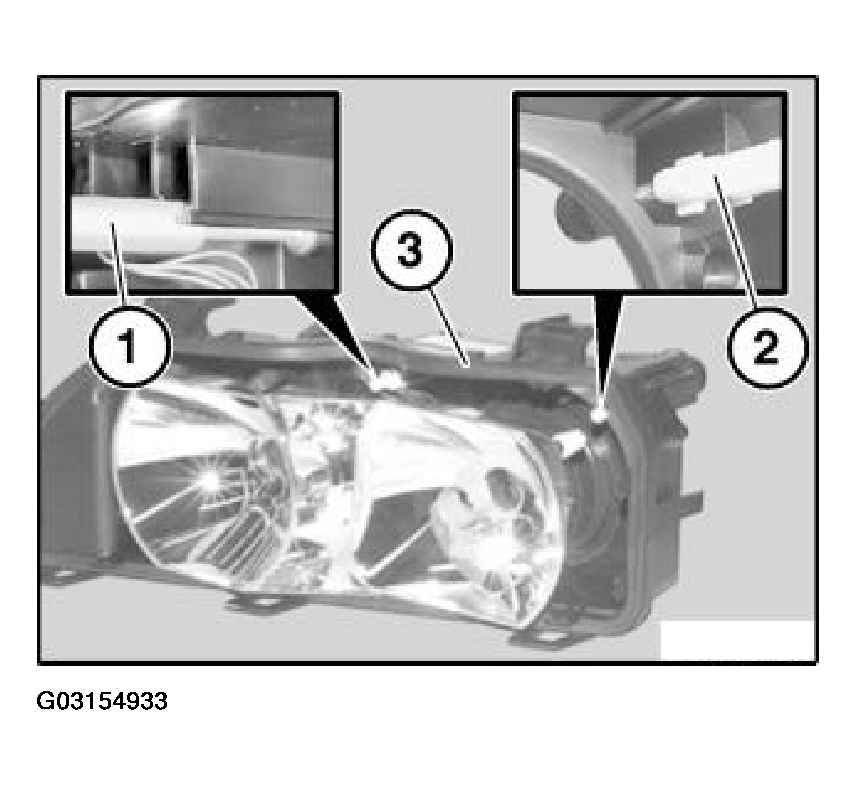

Fig 3: Checking Correct Seating Of Headlamp Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 01/1997:

When converting the headlight vertical aim adjuster from a headlight (old version), you must clip the supplied holder onto the headlight vertical aim adjuster.

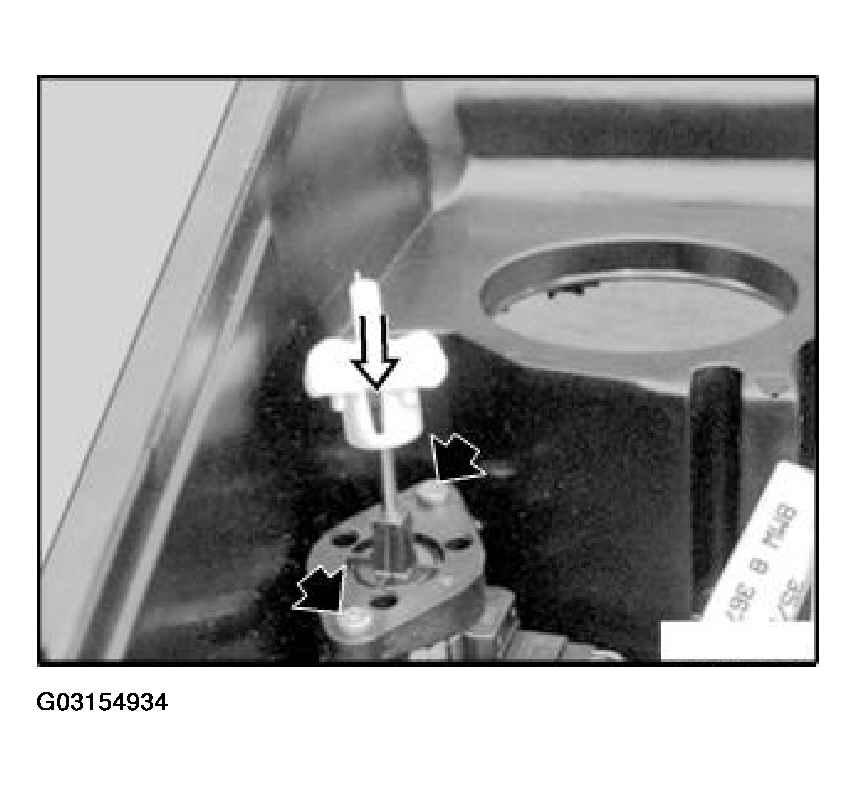

Fig 4: Identifying Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Unfasten screws.

Disconnect plug connection and remove headlight vertical aim adjuster.

Installation:

Adjust headlights.

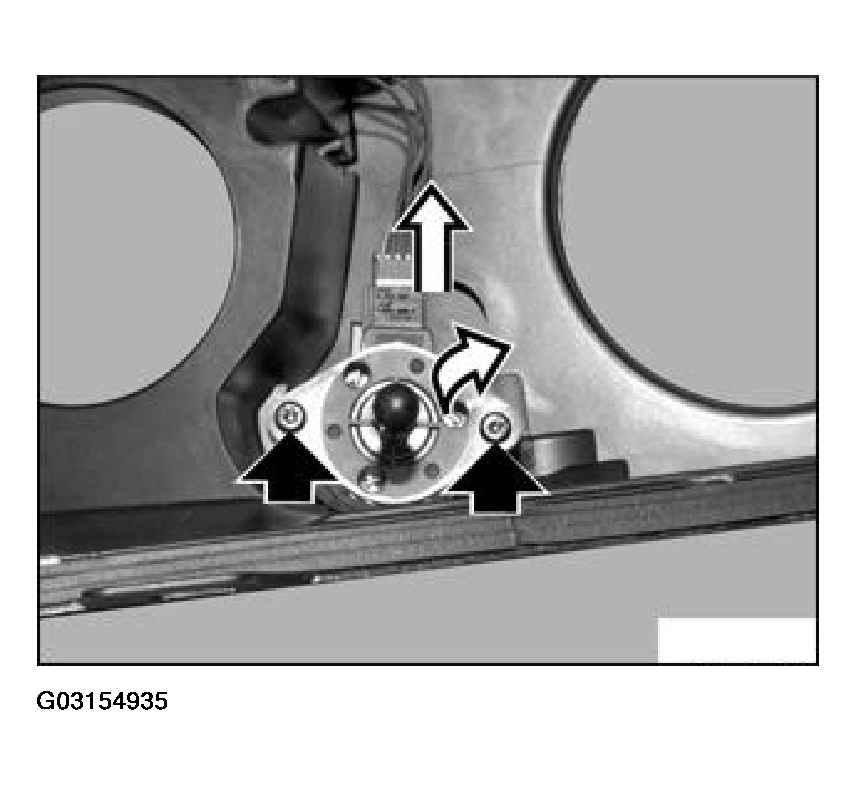

Fig 5: Disconnecting Plug Connection And Removing Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.
