63 12 034 Removing and installing/replacing lens/reflector for left headlight (up to 09/2000)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete left headlight. See 63 12 001 Removing And Installing/Replacing Left Headlight .

Release all clips and remove lens/reflector for left headlight.

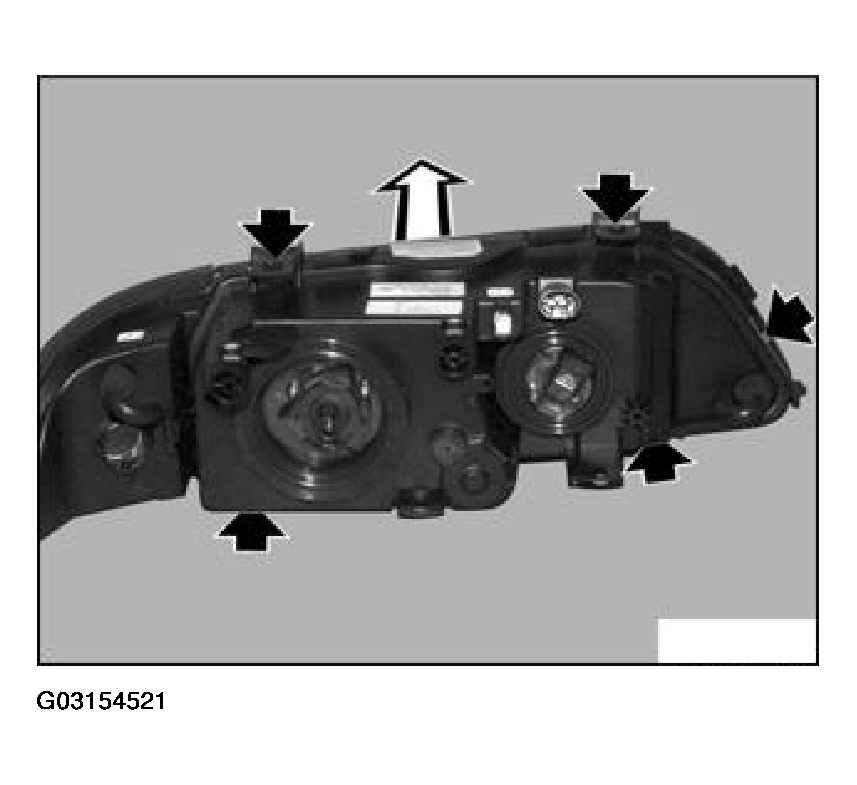

Fig 1: Releasing All Clips And Removing Lens/Reflector
G03154521Courtesy of BMW OF NORTH AMERICA, INC.
