67 61 510 Removing and installing or replacing drive with gear for actuating slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ceiling light. See 63 31 000 REMOVING AND INSTALLING/REPLACING CEILING LIGHT .

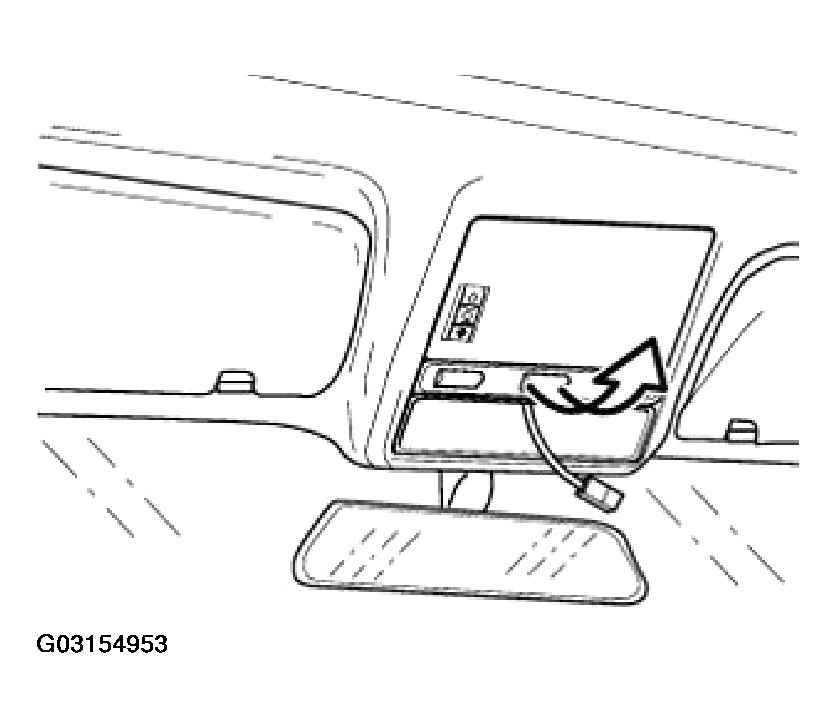

Remove panel and disconnect plug connection.

Fig 1: Removing Panel And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

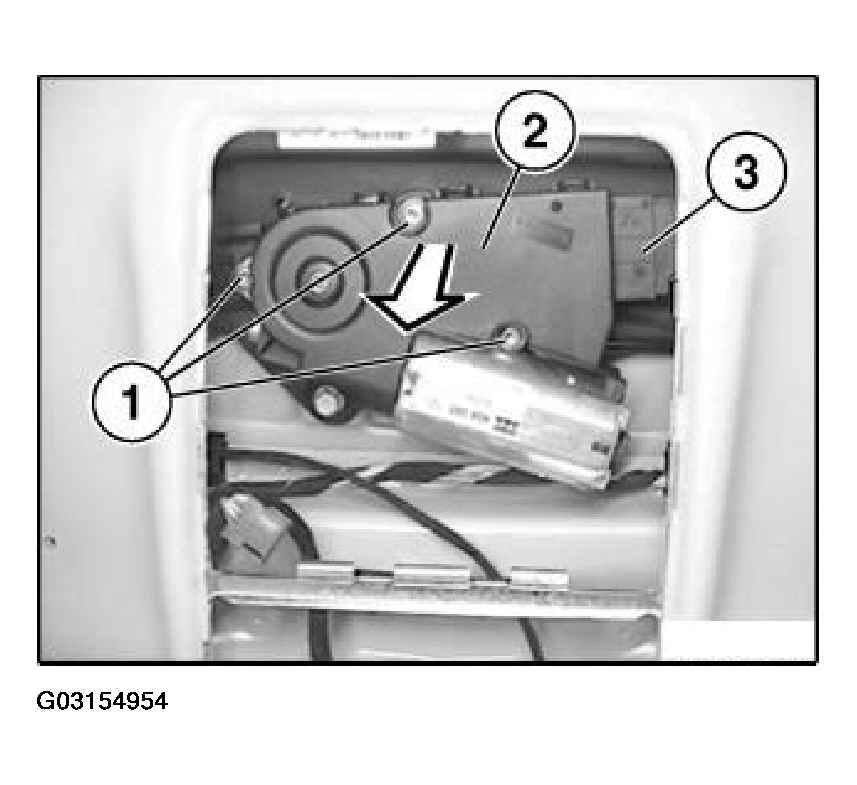

NOTE: Secure drive with gear for actuating slide/tilt sunroof (2) against falling out.

Release screws (1). For tightening torque see 54 13 1AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUE .

NOTE: Screws (1) are microencapsulated.

Lower drive with gear for actuating slide/tilt sunroof (2).

Unlock plug connection (3), disconnect and remove drive with gear for actuating slide/tilt sunroof (2).

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

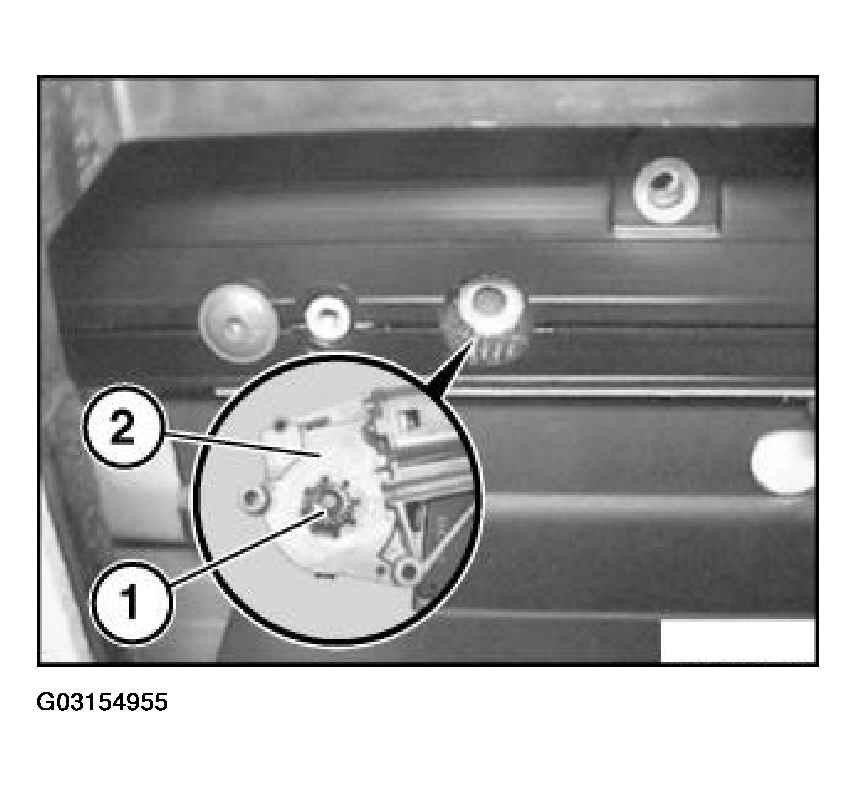

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) in gear teeth.

Fig 3: Insert Gear Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

E38 from 9/98 for replacement only:

Carry out programming/coding.

IMPORTANT: Important!

There is a risk of permanent battery discharge if programming/coding is not carried out!

NOTE: After installing/coding drive for actuating slide/tilt sunroof:

Initialize slide/tilt sunroof.
