63 31 000 Removing and installing/replacing complete interior light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Front:

Lever out ceiling light in direction of arrow.

Disconnect plug connection underneath and remove ceiling light.

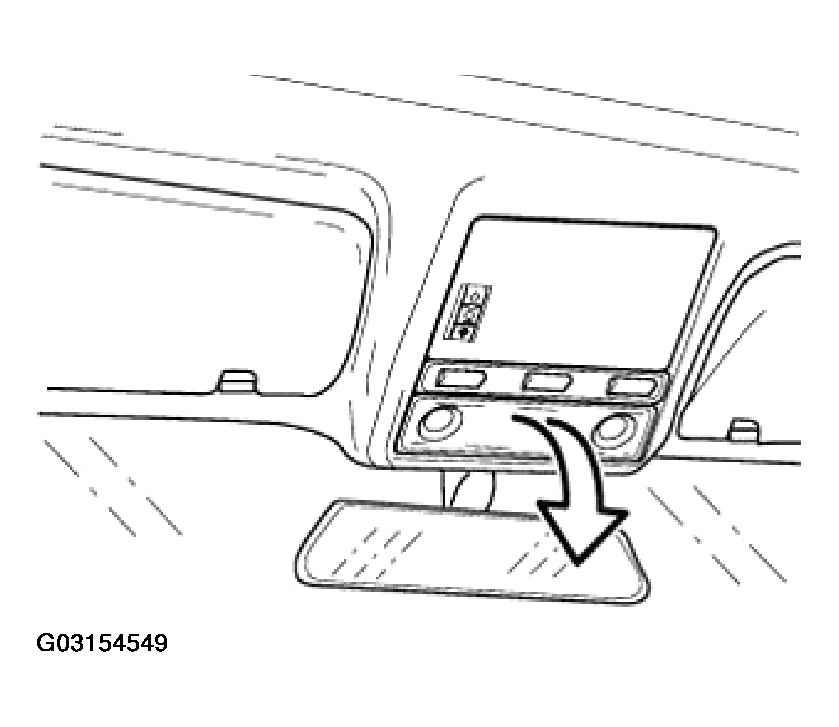

Fig 1: Levering Out Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.

Rear (touring only):

Lever out ceiling light (1) in direction of arrow.

Disconnect plug connection underneath and remove ceiling light (1).

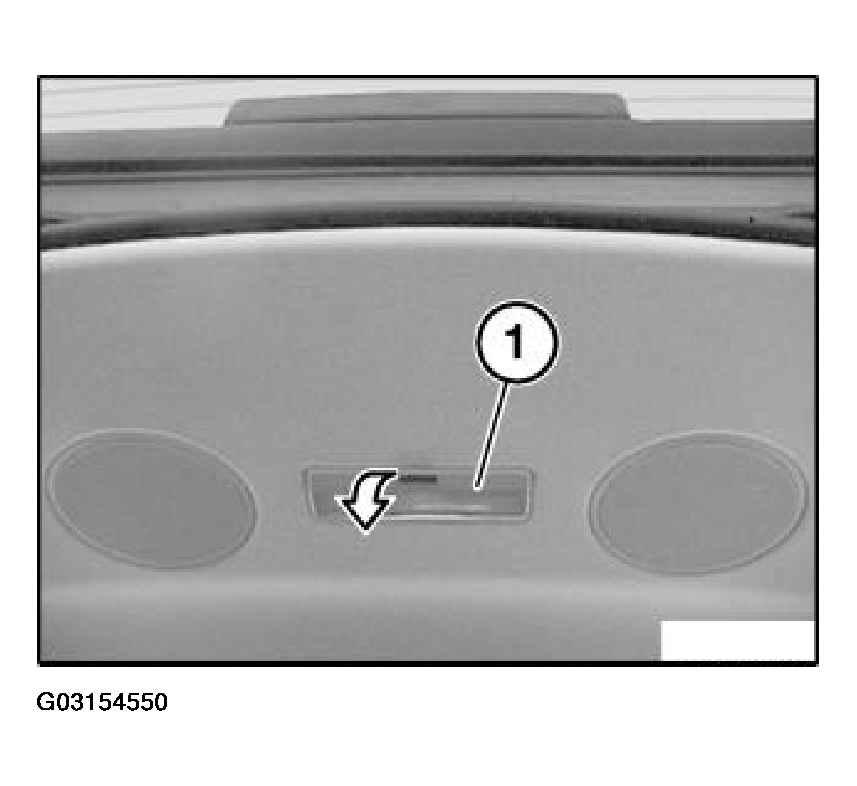

Fig 2: Levering Out Ceiling Light And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
