65 52 520 Replacing trim panel for on-board monitor (control panel)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

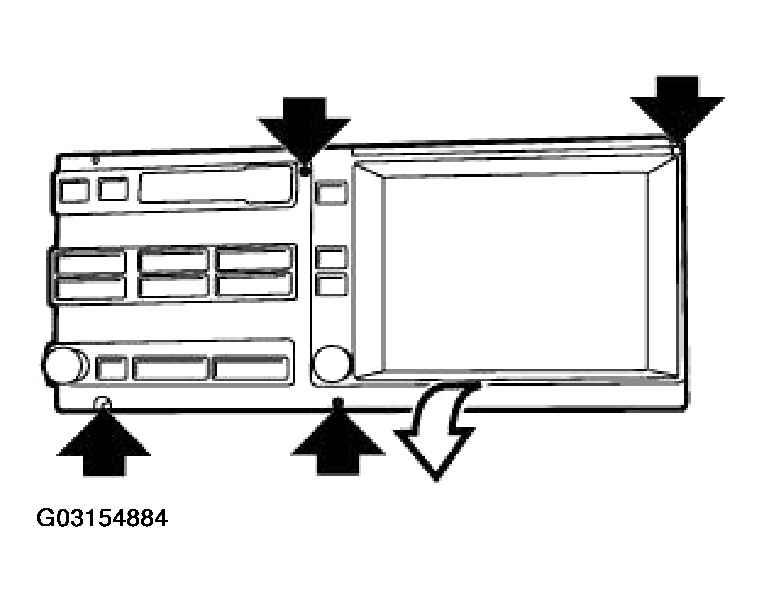

Remove on-board monitor, refer to 65 52 510 REMOVING AND INSTALLING ON-BOARD MONITOR .
CAUTION:
Place trim panel on special tool 12 7 192 (anti-static mat) and ground in order to avoid a static charge.

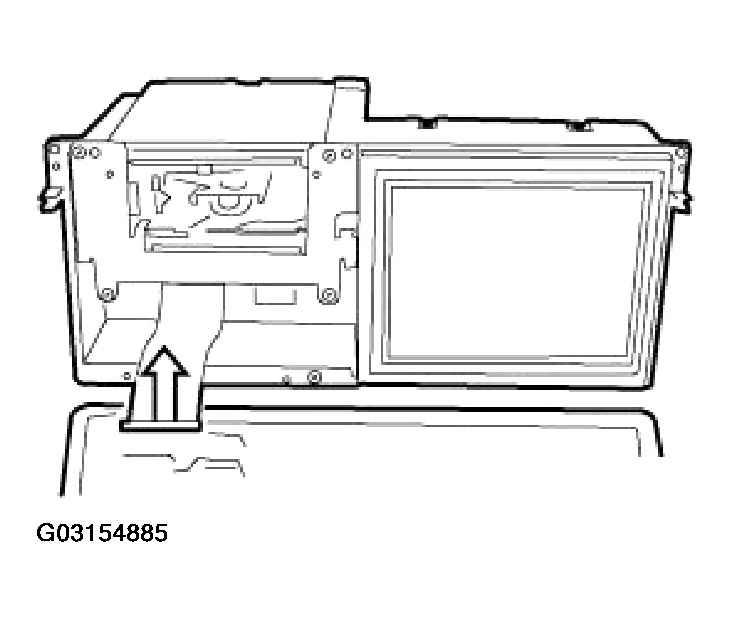

Unfasten screws. Turn over frame.
Pull off connectors. Remove trim panel.
