65 52 510 Removing and installing on-board monitor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Pull off right wooden finisher.

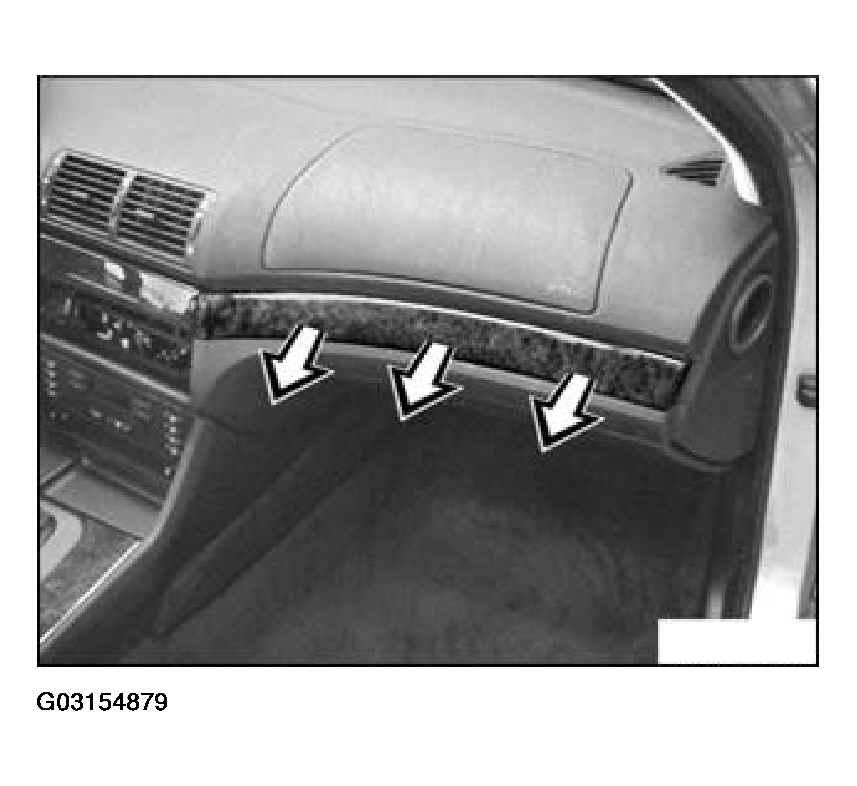

Fig 1: Removing Right Wooden Finisher

G03154879

Courtesy of BMW OF NORTH AMERICA, INC.

Remove top left wooden finisher by pulling upwards.

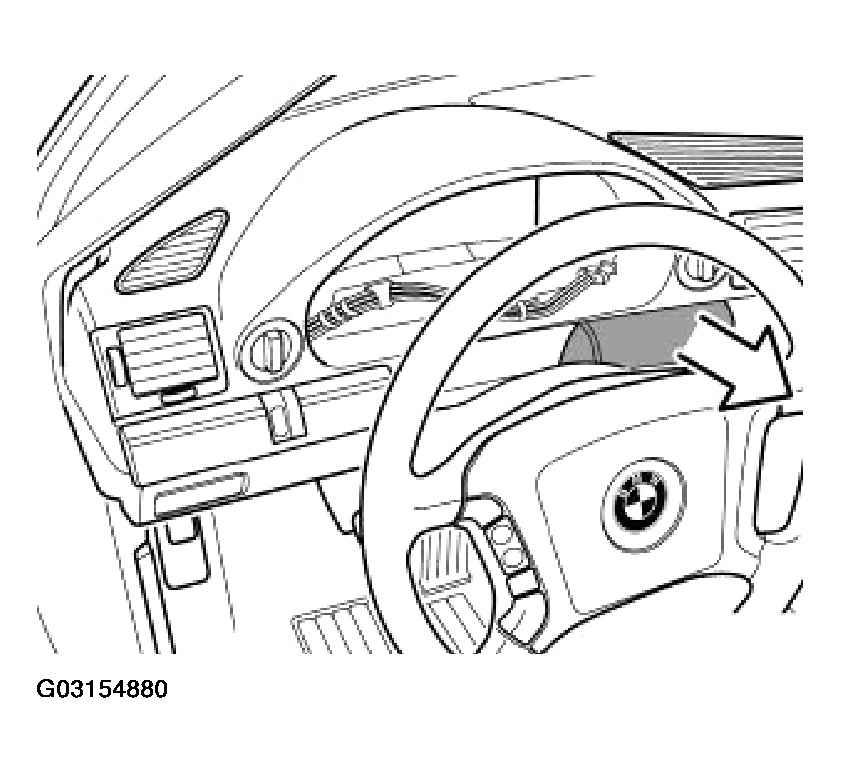

Fig 2: Removing Wooden Finisher

G03154880

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left and right screw. Raise left and right levers with screwdriver and pull down finisher, then remove completely.

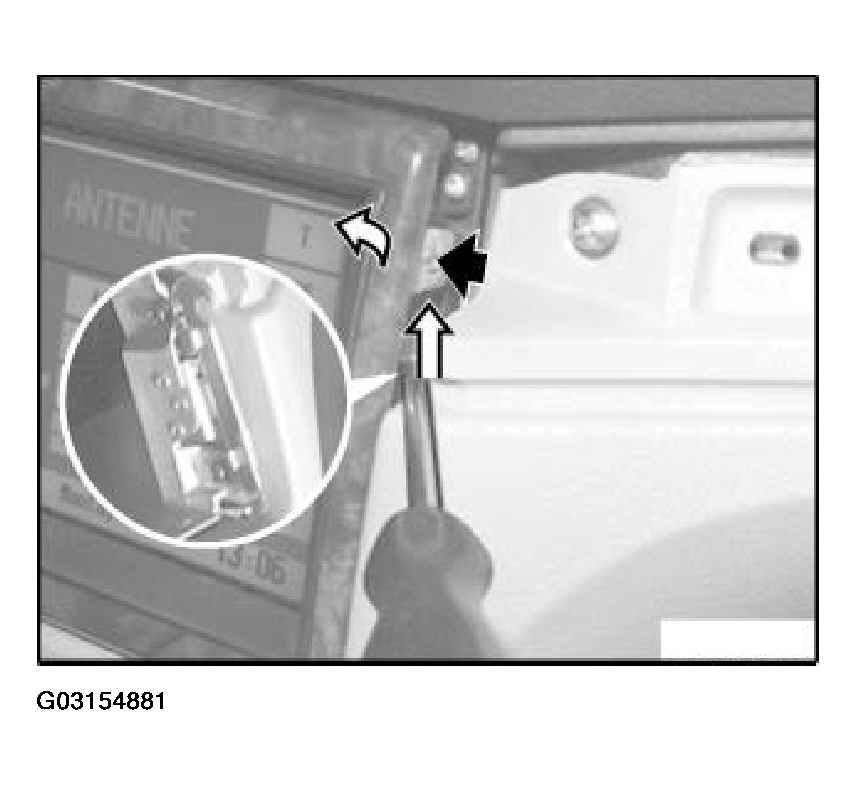

Fig 3: Raising Levers With Screwdriver

G03154881

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Pull out on-board monitor towards front.

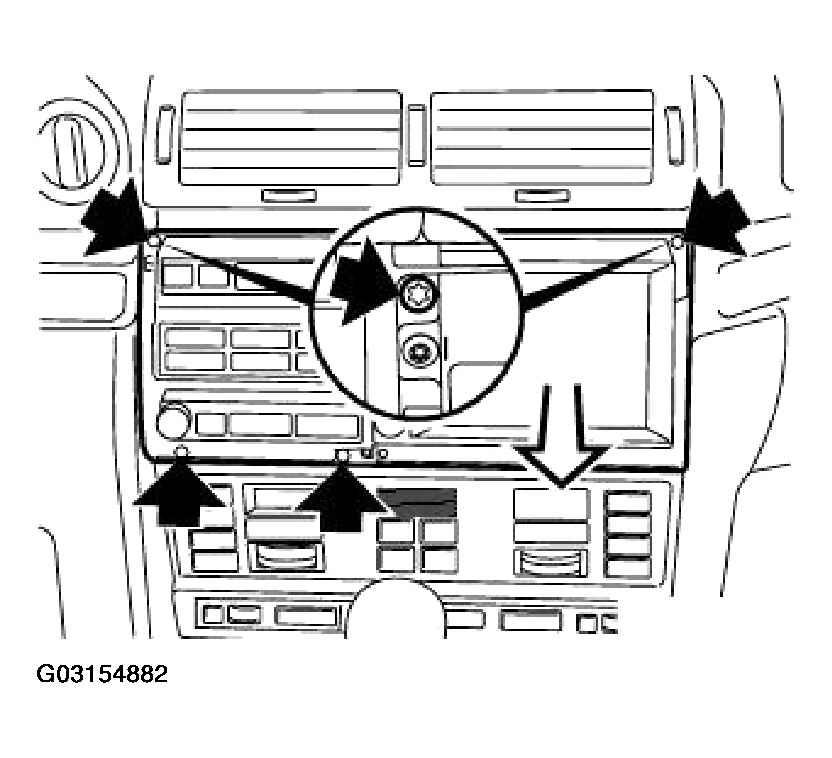

Fig 4: Removing Screws

G03154882

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plug and unfasten wiring harness from clips.

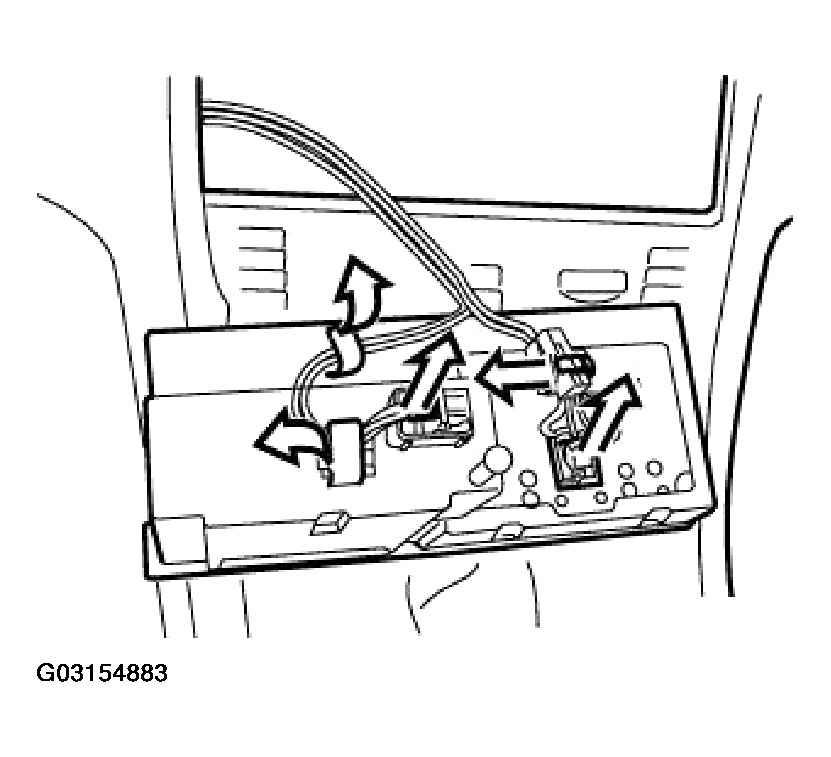

Fig 5: Removing Plug And Wiring Harness From Clips

G03154883

Courtesy of BMW OF NORTH AMERICA, INC.
