65 52 023 Replacing panel for on-board monitor (control panel, widescreen)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESP protection).
Necessary preliminary tasks:
- Remove complete on-board monitor (widescreen). See 65 52 013 Removing and installing complete on-board monitor (widescreen)

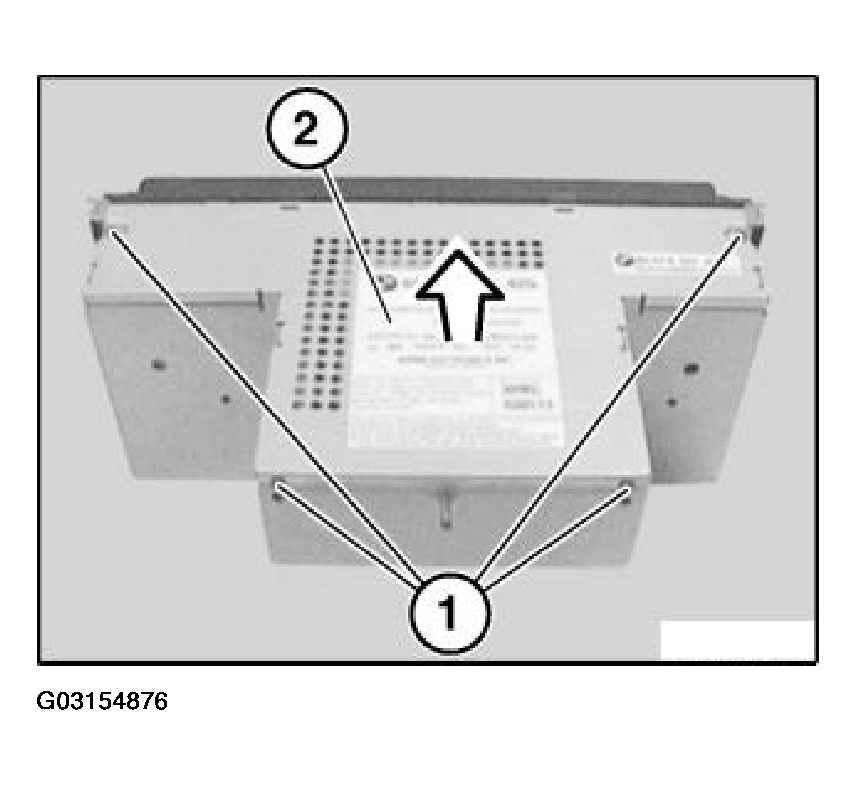

Release screws (1).
Remove upper housing section (2) in direction of arrow.

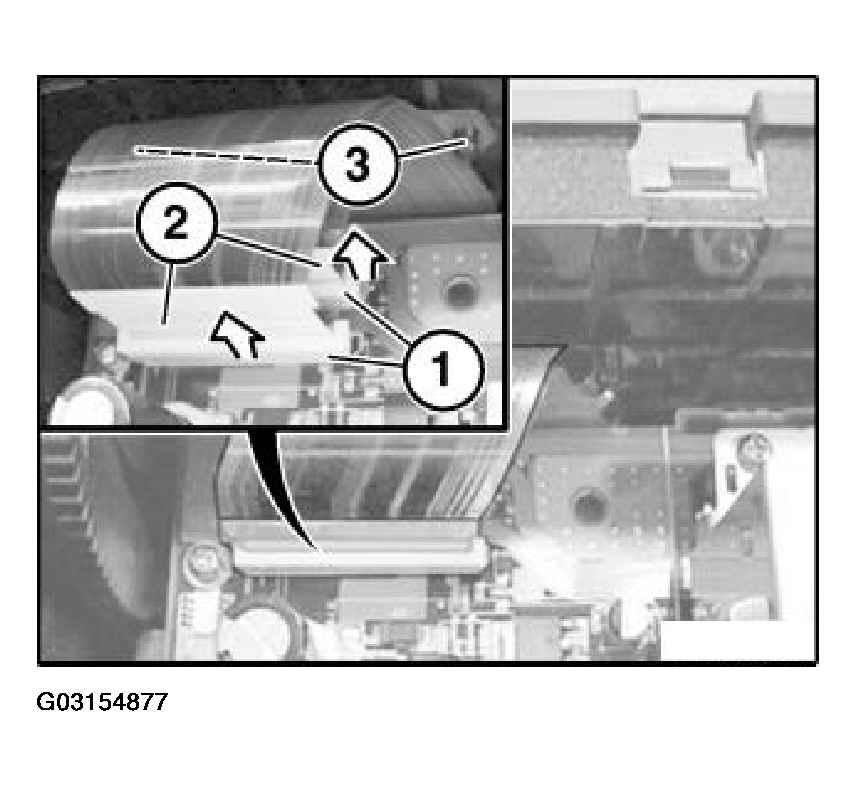

Raise locks (1) in direction of arrow.
Detach ribbon cables (2) and feed out at catches (3).
Installation:
Make sure ribbon cables are correctly seated.
NOTE:
Carefully feed out ribbon cables when removing panel for on-board monitor (control panel).

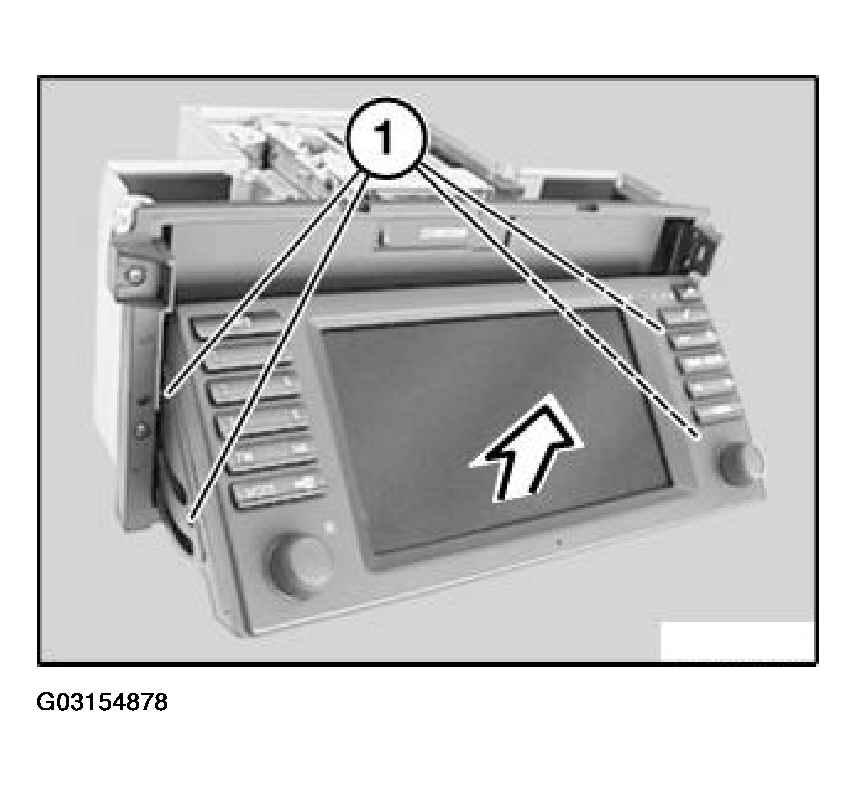

Release screws (1).
Remove panel for on-board monitor (control panel) in direction of arrow.
