65 52 013 Removing and installing complete on-board monitor (widescreen)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Lower panel for on-board monitor (control panel).

NOTE: Panel for on-board monitor (control panel) returns to its initial position after 15 seconds.

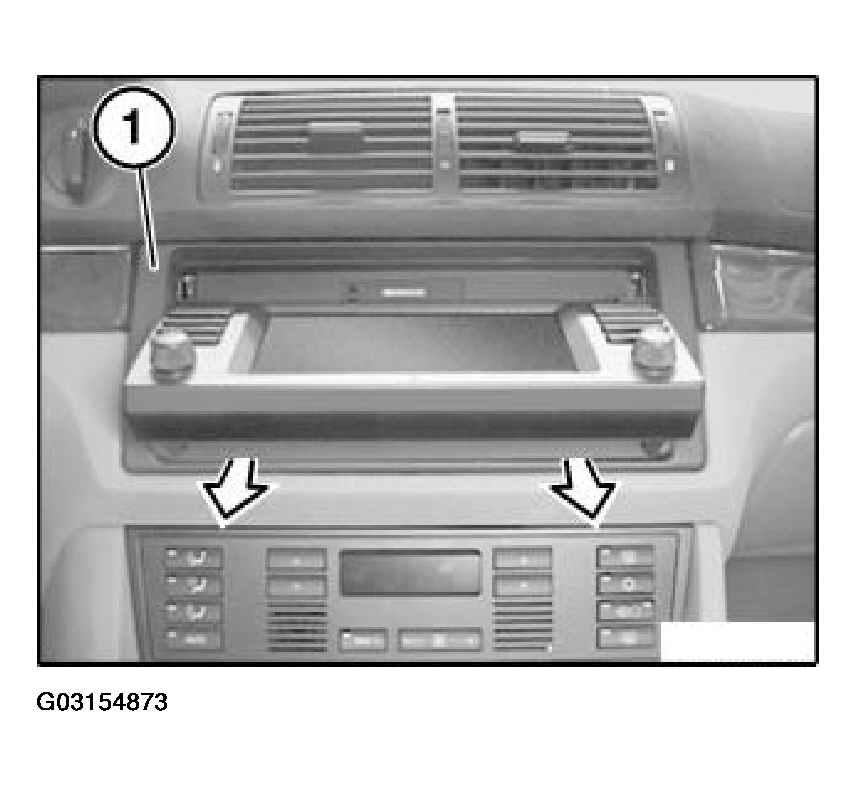

Detach frame for on-board monitor (1) in direction of arrow.

Fig 1: Detaching Frame For On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

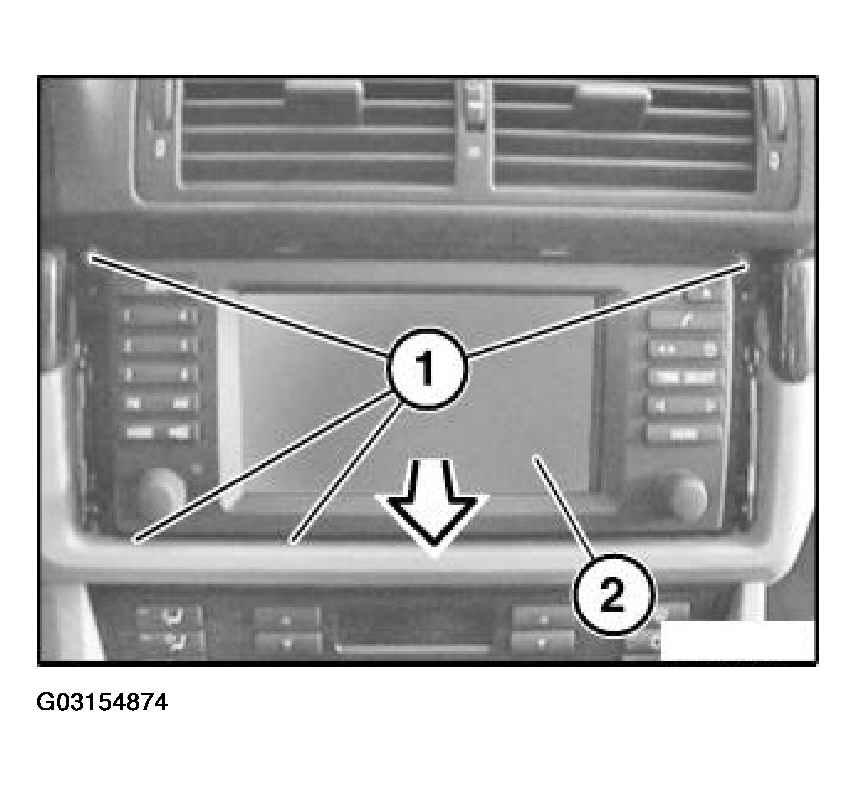

Release screws (1).

Pull out complete on-board monitor (2) in direction of arrow.

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

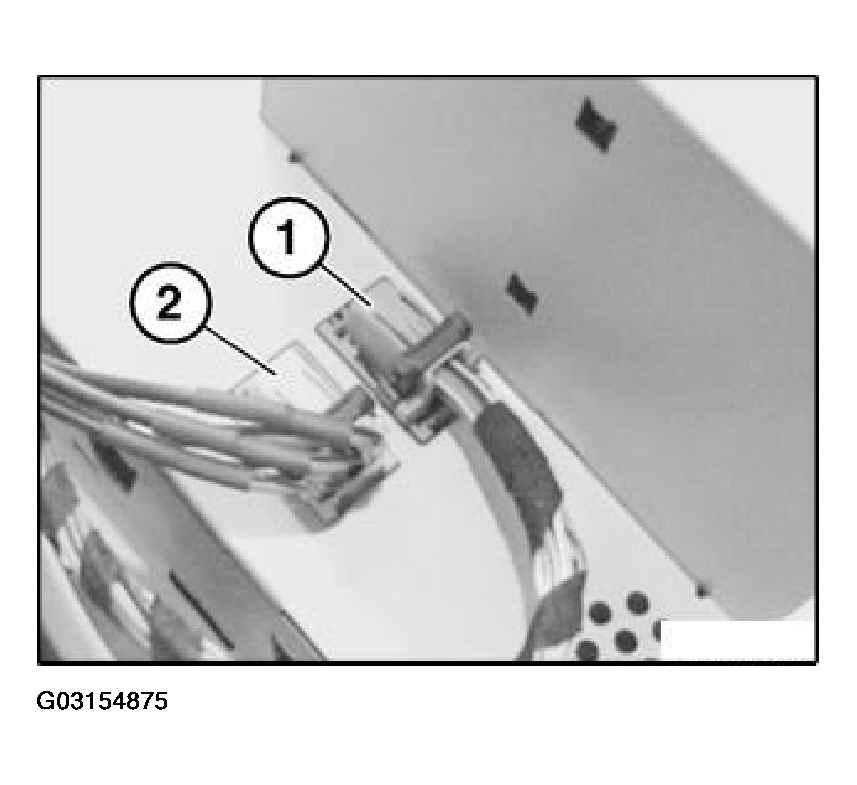

Unlock plug connections (1) and (2) and disconnect.

Remove complete on-board monitor.

Fig 3: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
