65 13 071 Removing and installing or replacing loudspeakers (rear shelf): Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove rear parcel shelf, refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF) .

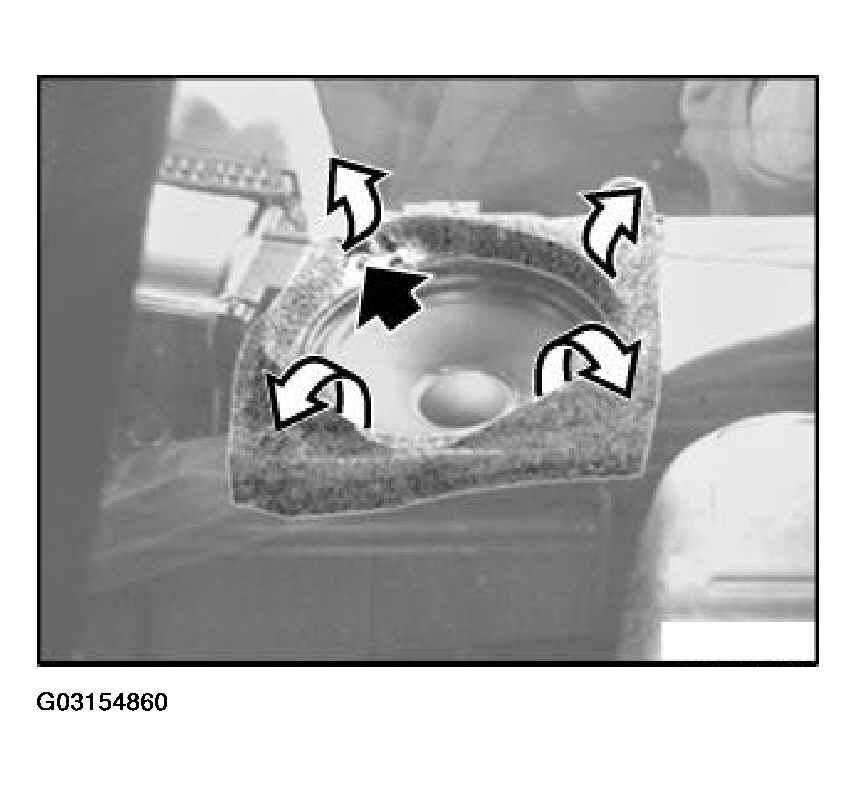

Lift foam rubber at all four corners, unfasten screws and lift out loudspeaker. Pull off connectors.
