65 90 540 Removing and installing/replacing antenna for Global Positioning System (GPS)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for oddments tray, see 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY .

Open flap in rear left side panel. Remove rear left wheel arch trim. Remove connector X01008.

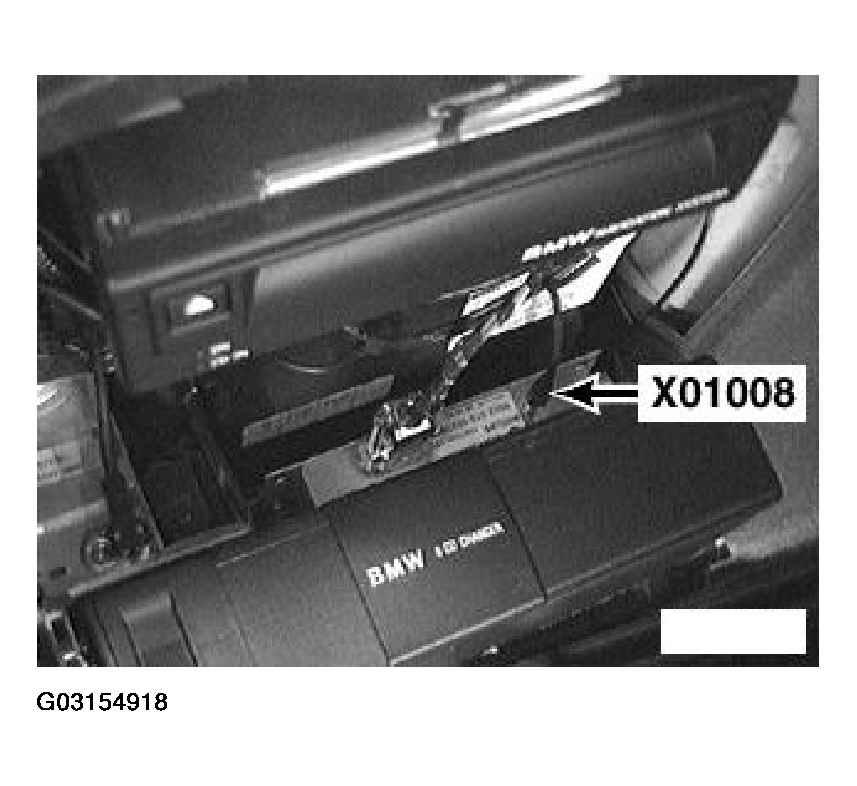

Fig 1: Removing Connector X01008

Courtesy of BMW OF NORTH AMERICA, INC.

Route line from trunk out to oddments tray.

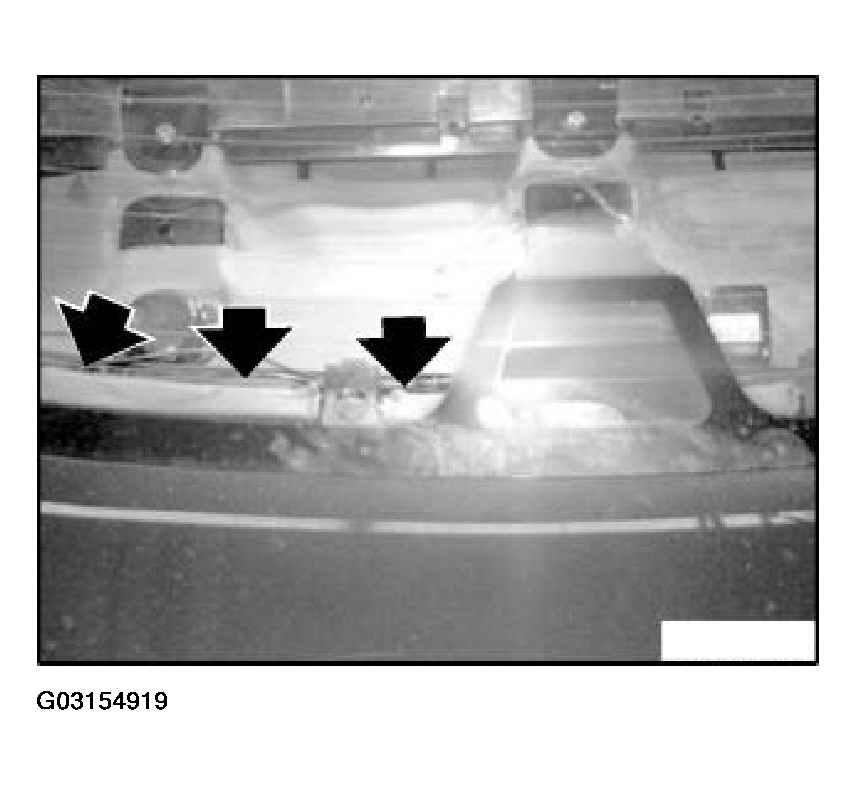

Fig 2: Routing Line From Trunk

Courtesy of BMW OF NORTH AMERICA, INC.

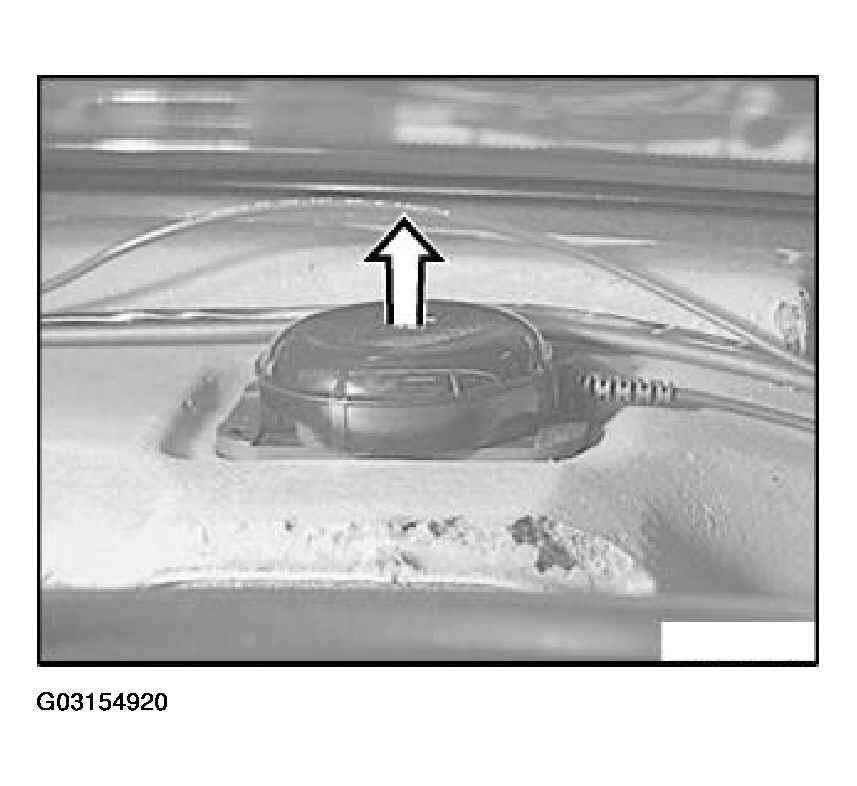

Pull antenna upwards to detach.

Fig 3: Detaching Antenna Source \\Ranger\Data\Conversion\Sgml_Wip\Jm1063\Scripts\Personal\Base\Base_Editor.Txt

Courtesy of BMW OF NORTH AMERICA, INC.
