65 90 530 Removing and installing magnetic field sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing trim for oddments tray, see 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY .

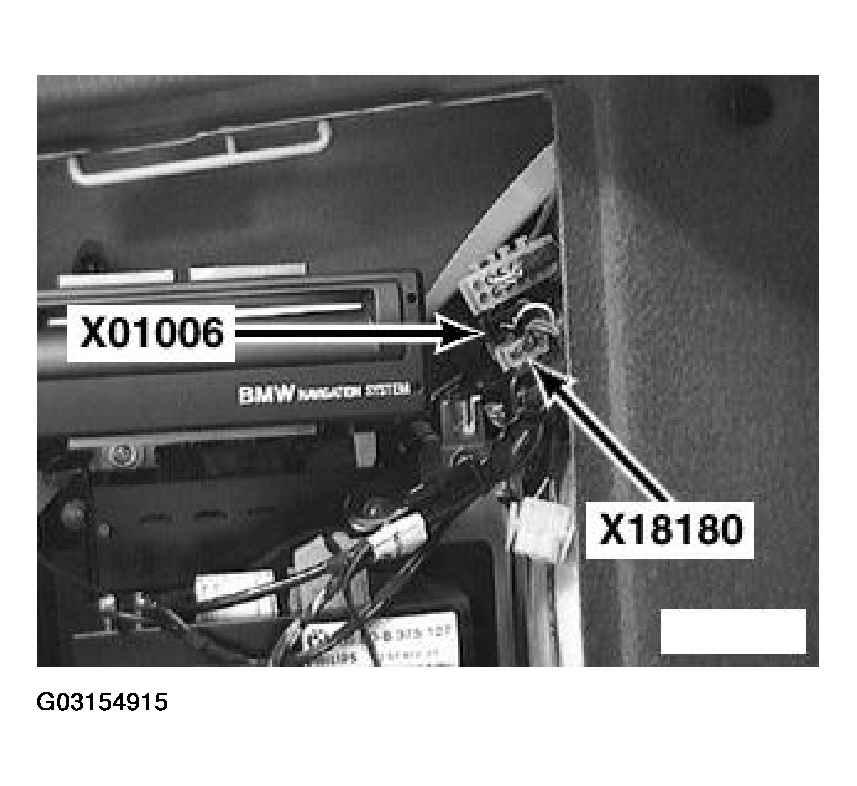

Open flap in rear left side panel. Remove rear left wheel arch trim. Disconnect plug-in connection.

Fig 1: Disconnecting Plug-In Connection

Courtesy of BMW OF NORTH AMERICA, INC.

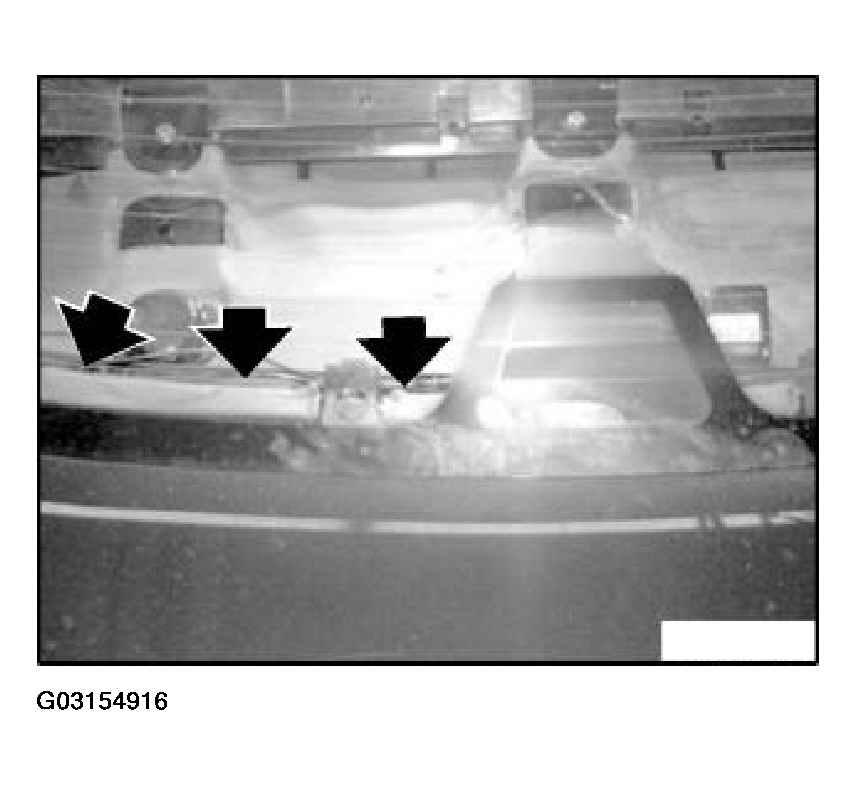

Route lines from trunk out to the oddments tray.

Fig 2: Routing Lines From Trunk

Courtesy of BMW OF NORTH AMERICA, INC.

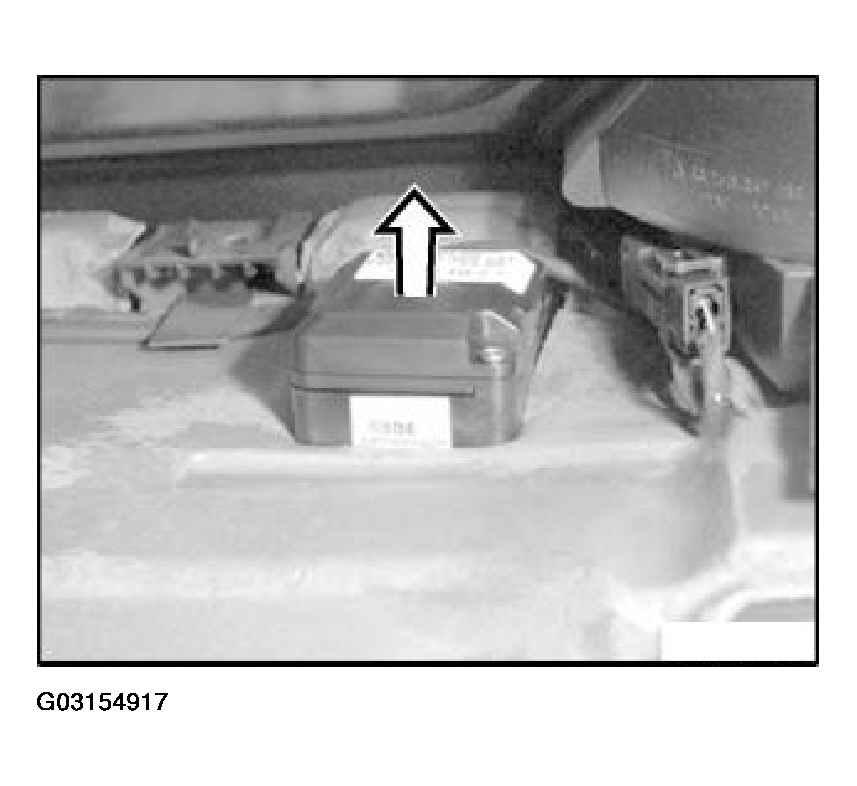

Pull magnetic field sensor upwards to unclip.

Fig 3: Removing Magnetic Field Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
