64 22 140 Removing and installing / replacing fresh-air grille on front door trim panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove door trim panel,

refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT DOOR TRIM PANEL

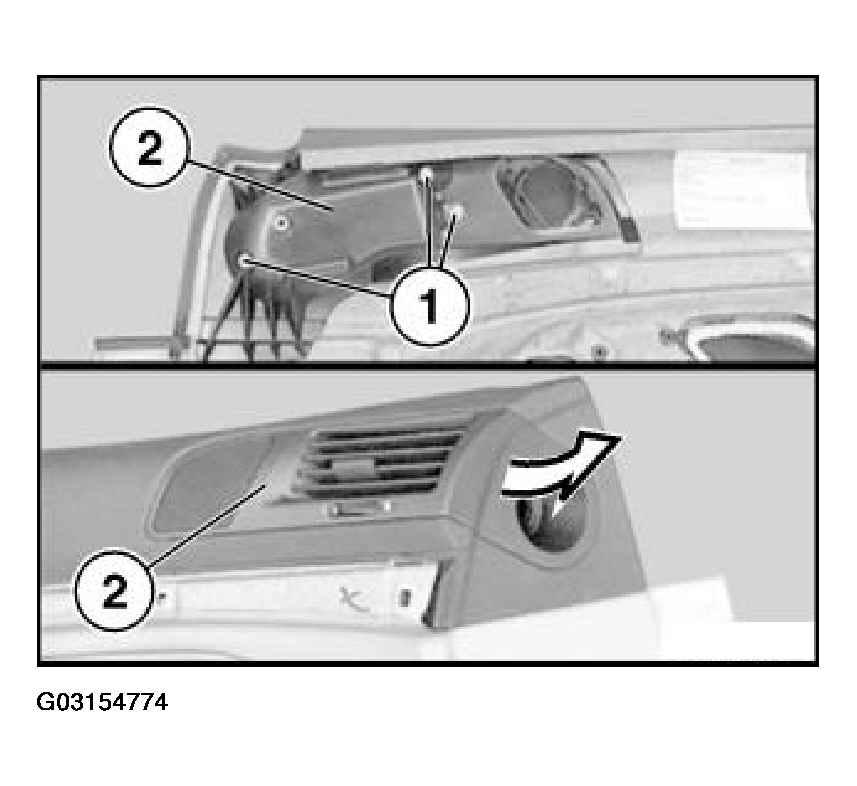

Unfasten screws (1) and lift out fresh-air grill (2) toward front out of door trim panel.

Fig 1: Removing Fresh-Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When replacing fresh-air grill, observe the following:

Version up to 3/96.
Version from 3/96.

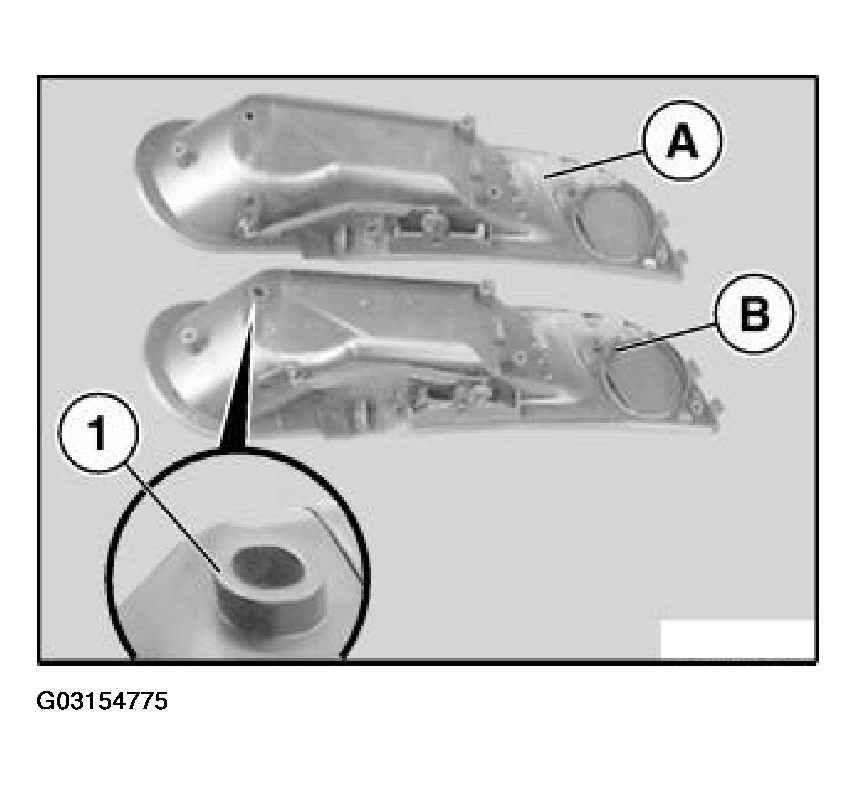

The new version (B) has an additional dome (1) which must protrude through the cover in the door trim.

Fig 2: Identifying Fresh-Air Grill (Version Up To And 3/96 Onwards)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When replacing fresh-air grill, observe the following:

Version up to 3/96.

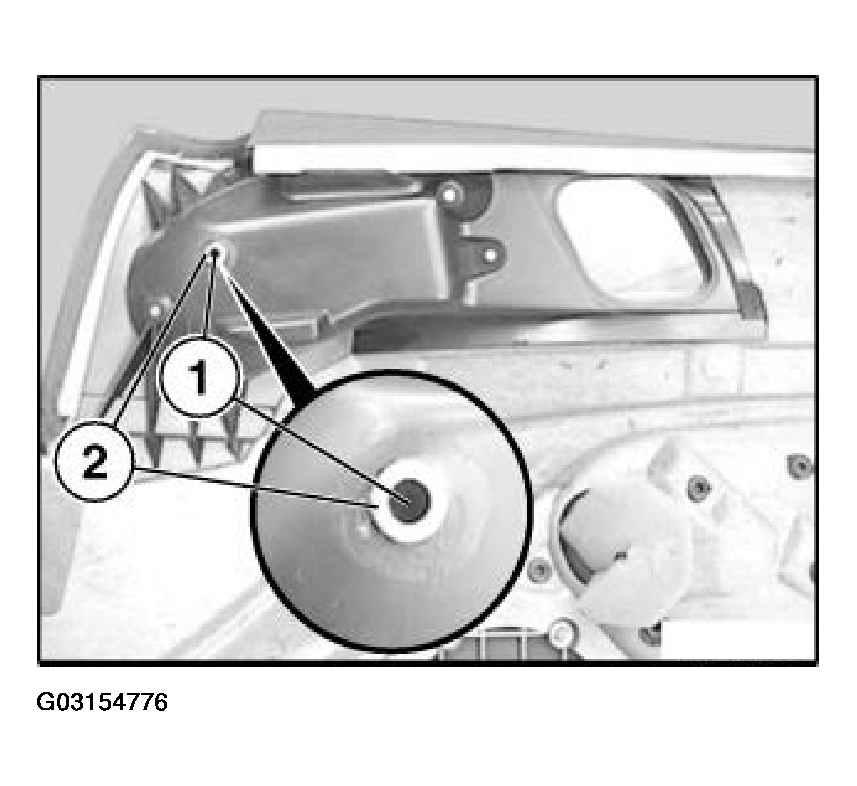

If a new fresh air grill is fitted to a door trim panel (version up to 3/96), the bore (1) in the door trim must be drilled out "PHI" to 14 mm. Unfasten disk (2) if necessary.

Fig 3: Identifying Fresh Air Grill Bore Diameter (Version Up To 3/96)

Courtesy of BMW OF NORTH AMERICA, INC.
