51 41 000 Removing and installing left or right front door trim panel

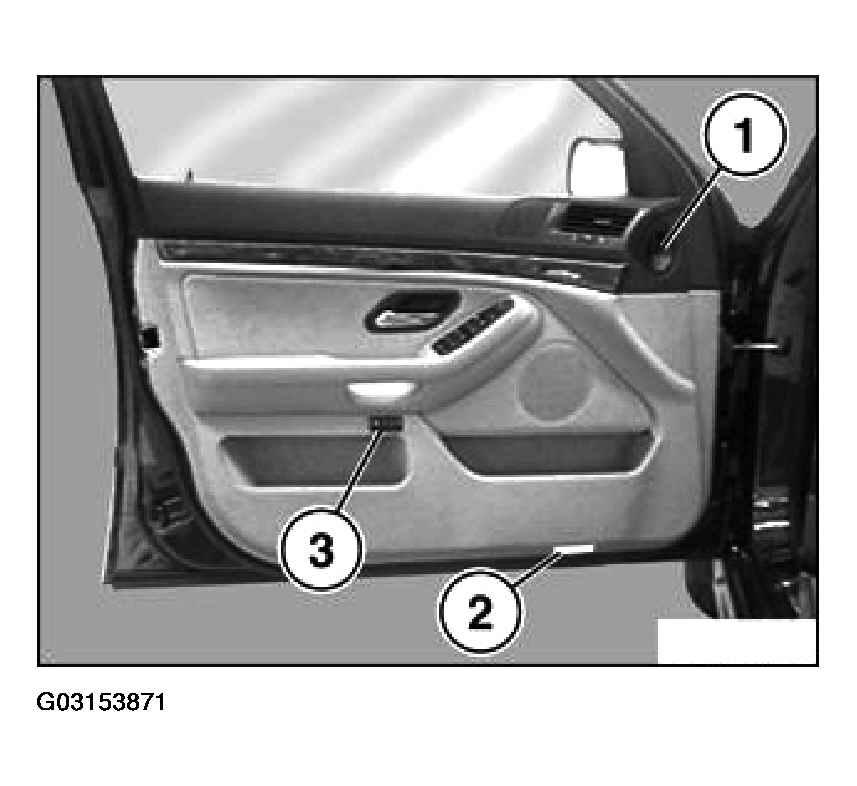

Unfasten screw (1) in air duct.

If necessary lift out footwell light (2) and remove connector.

Version with seat memory:

If necessary, lift out memory switch (3) and remove connector.

Fig 1: Lifting Out Memory Switch And Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.

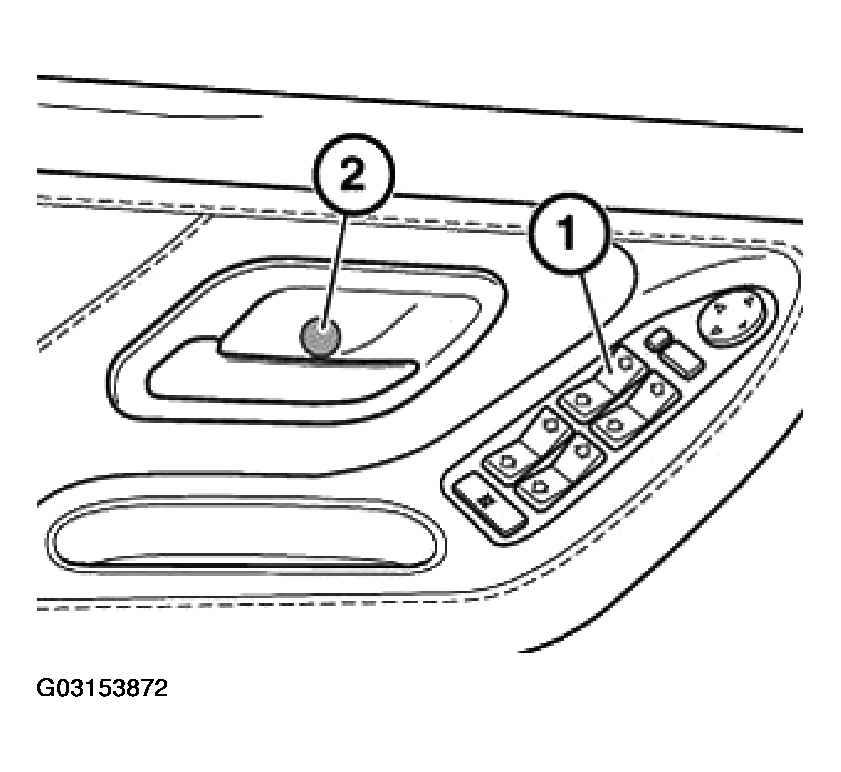

Remove toggle switch (1) for side-window operation,

refer to 61 31 115 REPLACING ROCKER SWITCH FOR SIDE-WINDOW OPERATION .

Lift out seal cap (2) and unfasten screw.

Fig 2: Removing Toggle Switch For Side-Window Operation

Courtesy of BMW OF NORTH AMERICA, INC.

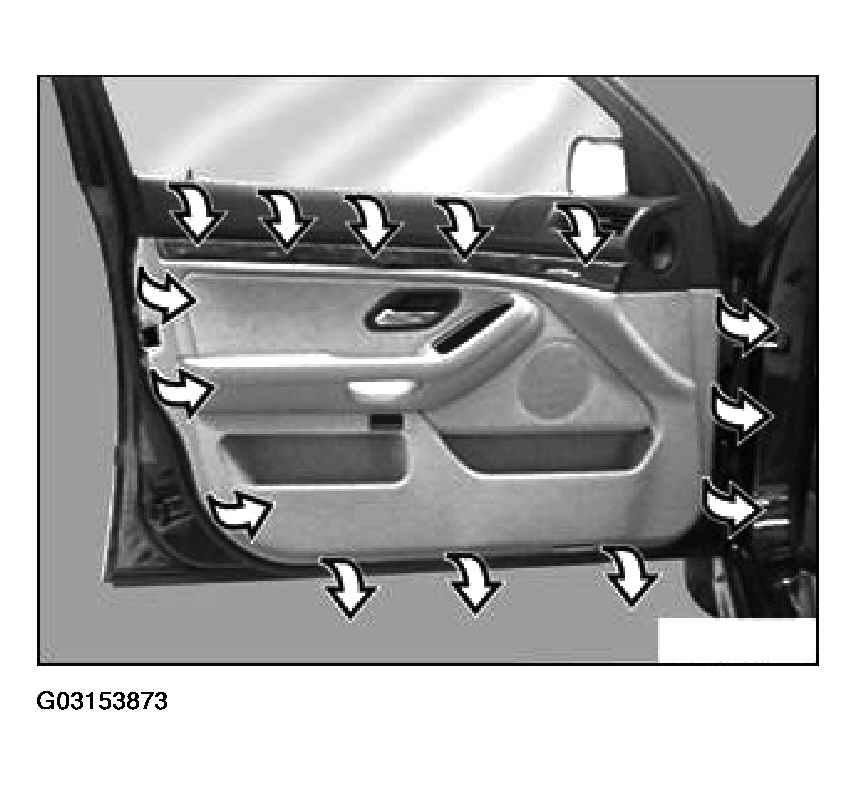

Unclip door trim panel all around.

Fig 3: Unclipping Door Trim Panel All Around

Courtesy of BMW OF NORTH AMERICA, INC.

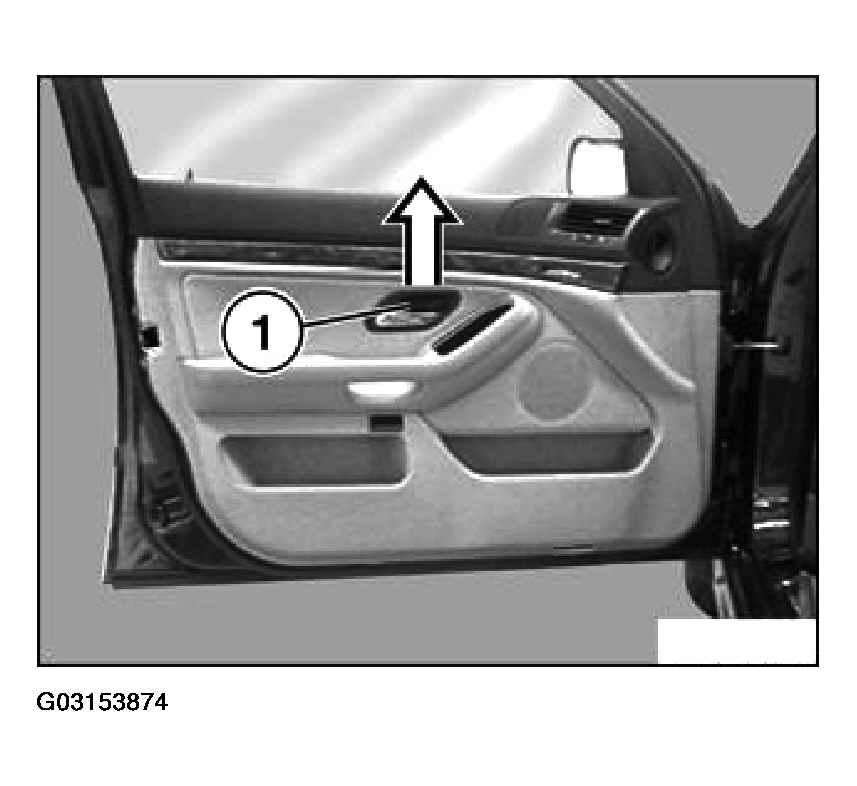

Pull door trim upwards out of door clip and slide door handle (1) through the door trim.

Fig 4: Pulling Door Trim Upwards Out Of Door Clip And Slide Door Handle Through Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

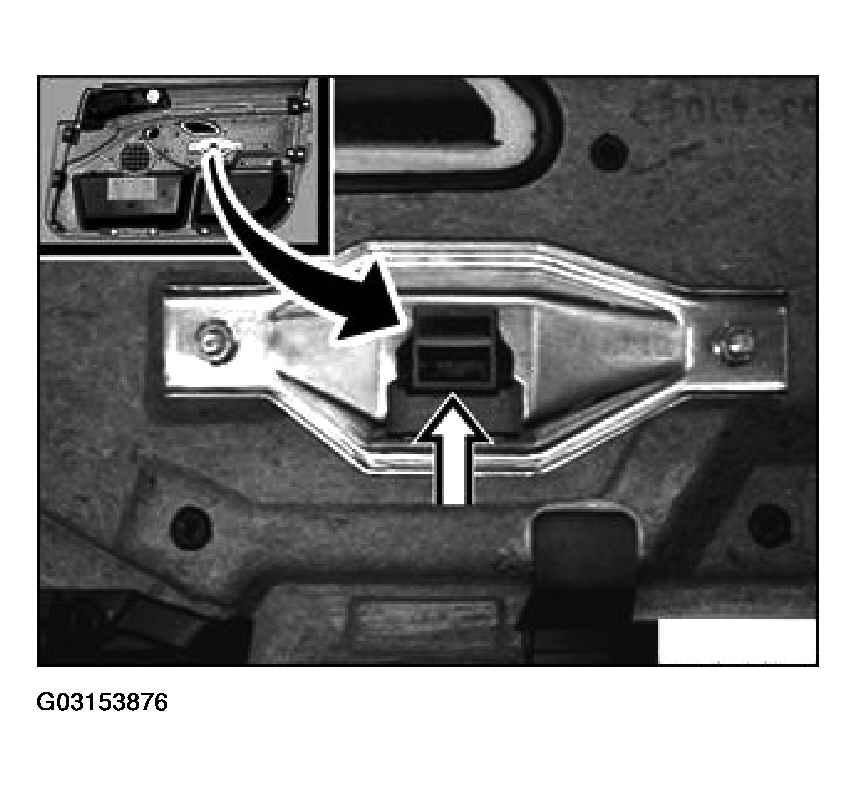

Remove door clip.

Fig 5: Removing Door Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

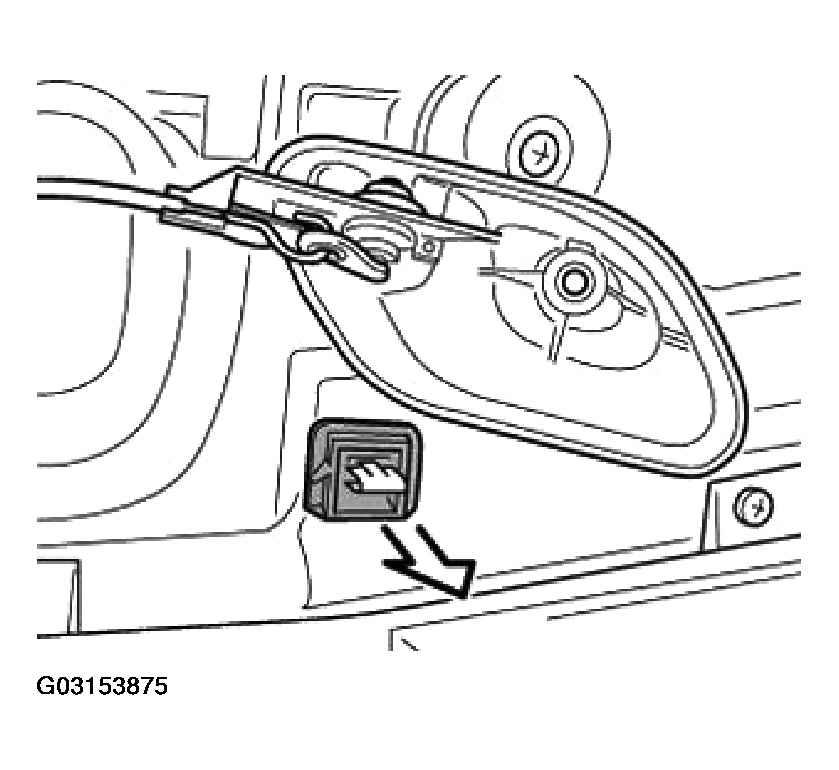

1. Install door clip in bracket of door trim.

Fig 6: Installing Door Clip In Bracket Of Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

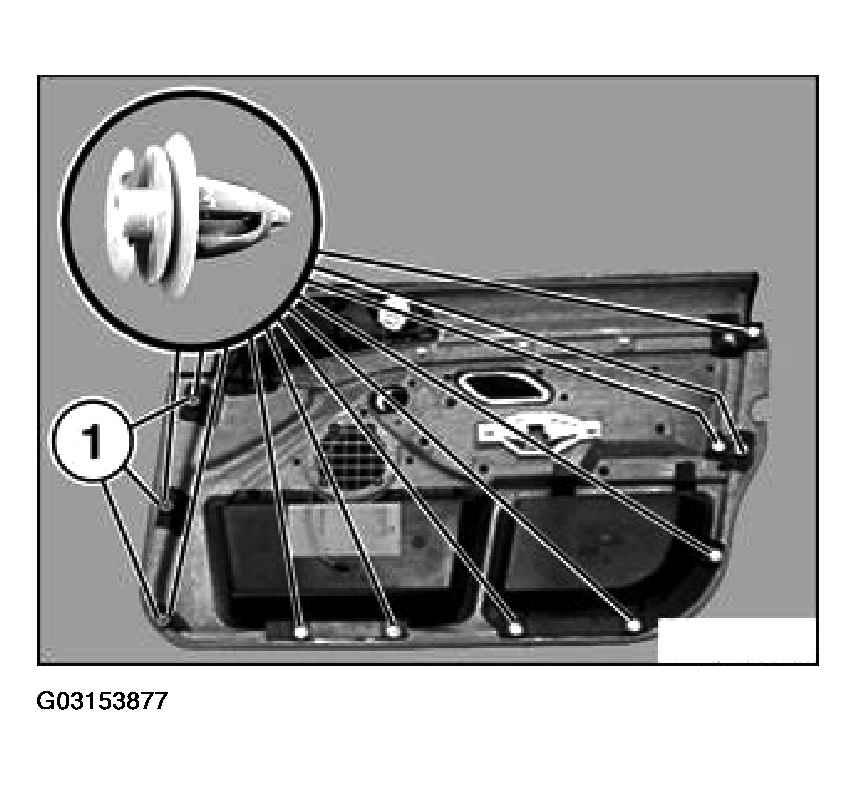

1. Clips (1) are longer than the other clips.
2. If necessary, replace damaged clips.

Fig 7: Installing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

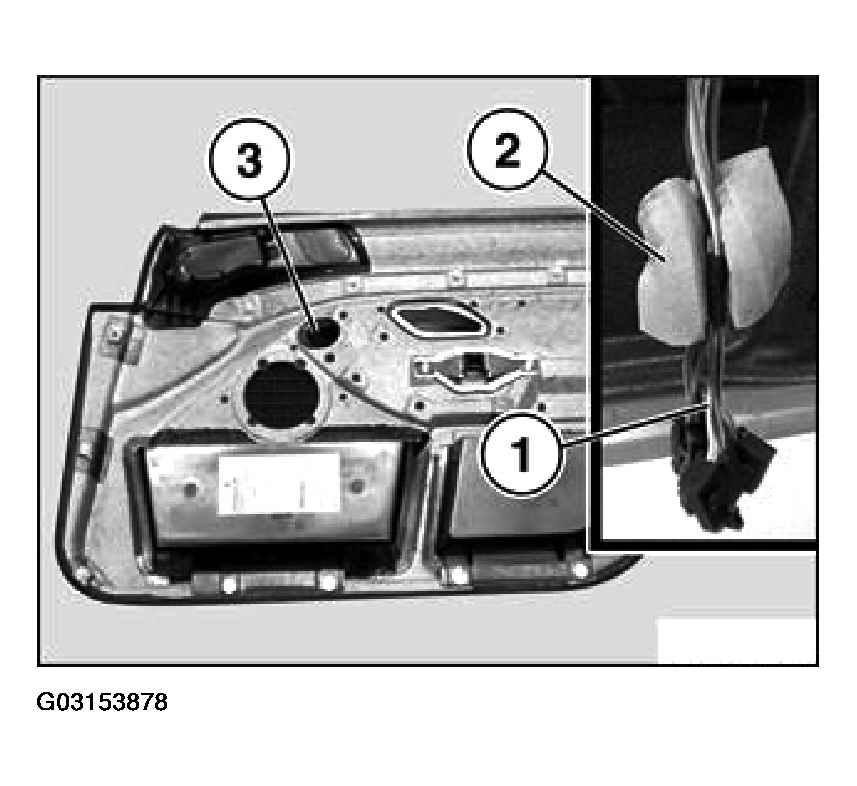

1. Slide cable (1) with acoustic insulation (2) through the bore (3).

Fig 8: Identifying Slide Cable With Acoustic Insulation Through Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

After assembling the door trim panel proceed as follows:

1. Open door window
2. Close door
3. Lock with vehicle key
4. Check whether the linkage on the retaining knob can move freely.
5. If necessary, dismantle door trim panels and align the linkage
6. If necessary, mount door trim
7. If necessary, repeat steps 1 to 4
