64 11 937 Replacing evaporator temperature sensor (climate control, from 03/2000))

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

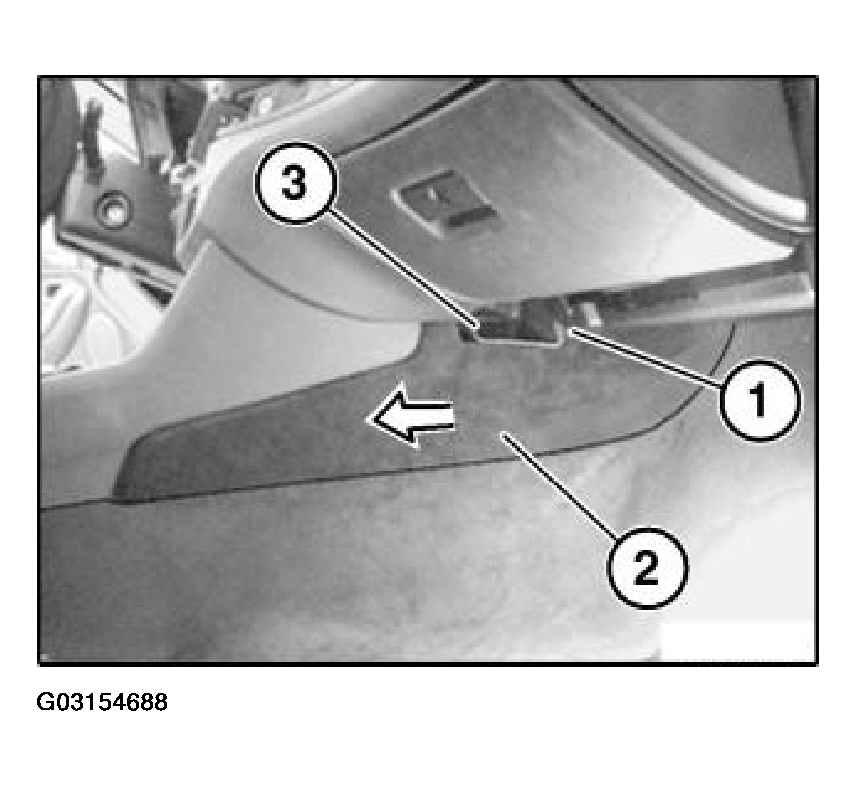

Unscrew bolt (1).

Remove side carpet (2) in direction of arrow towards rear.

Unclip air duct for right footwell (3) and remove towards right.

Fig 1: Removing Right Footwell Air Duct (Climate Control, From 03/2000)

G03154688

Courtesy of BMW OF NORTH AMERICA, INC.

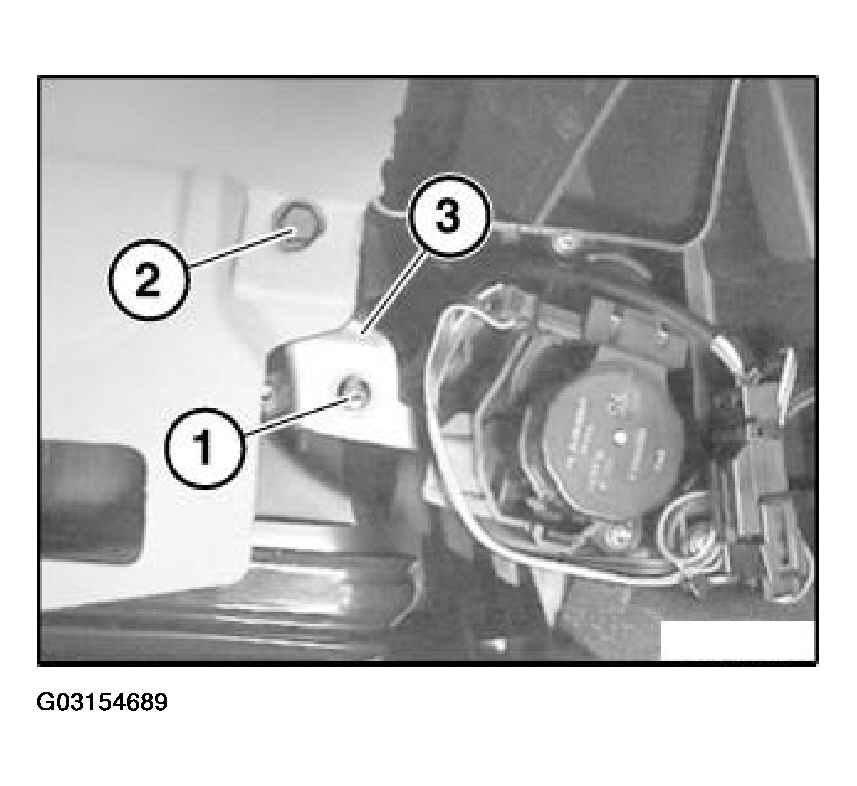

Remove screws (1) and (2).

Remove retaining bracket (3).

Fig 2: Removing Screws And Retaining Bracket (Climate Control, From 03/2000)

G03154689

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove servodrive of rear compartment flap. See 64 11 850 Replacing Servodrive Of Rear Compartment Flap (Automatic A/C, From 09/97) .

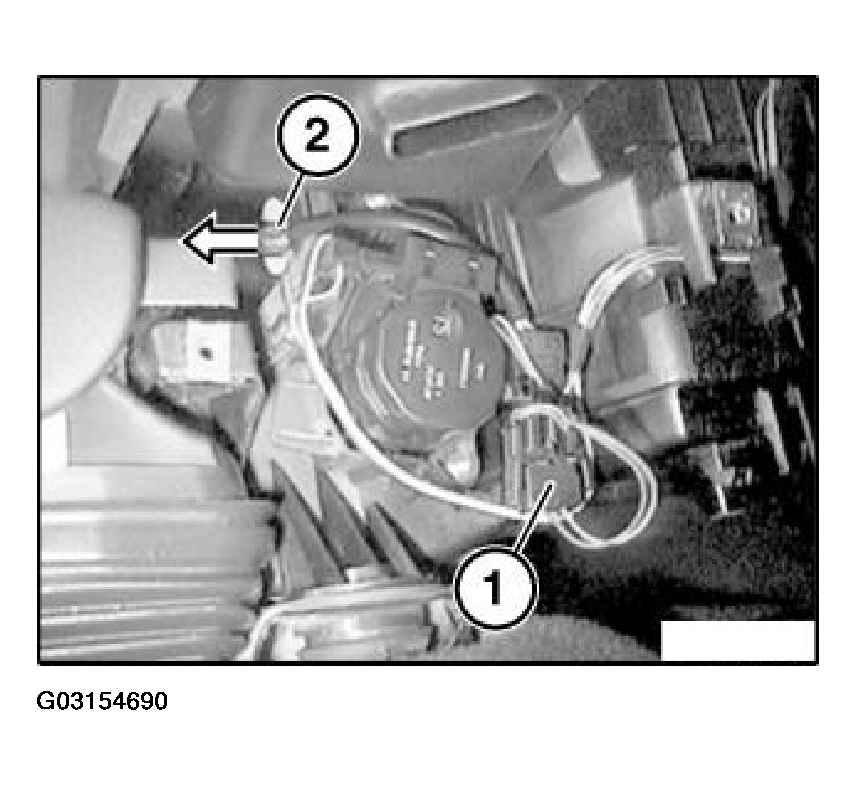

Disconnect plug connection (1).

Pull out evaporator temperature sensor (2) in direction of arrow.

Fig 3: Removing Evaporator Temperature Sensor (Climate Control, From 03/2000)

G03154690

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

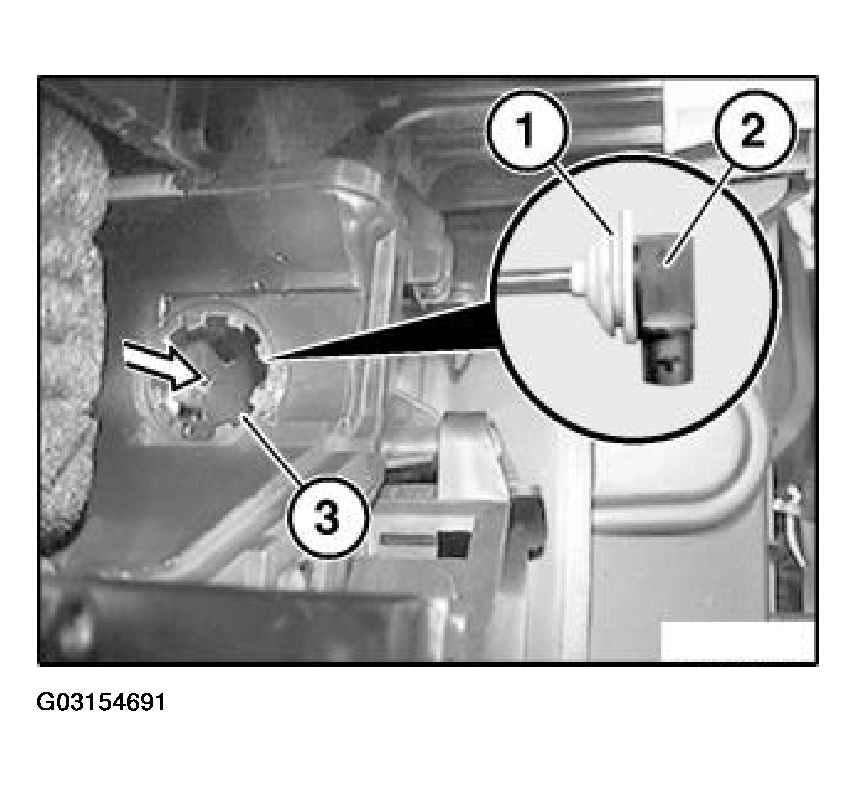

Slide gasket (1) as far as it will go onto evaporator temperature sensor (2).

Slide evaporator temperature sensor (2) centrally into opening (3) until gasket (1) snaps into place.

Fig 4: Installing Evaporator Temperature Sensor (Climate Control, From 03/2000)

G03154691

Courtesy of BMW OF NORTH AMERICA, INC.
