64 11 850 Replacing servodrive of rear compartment flap (automatic A/C, from 09/97)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove side carpet on right side of center console. See 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY .

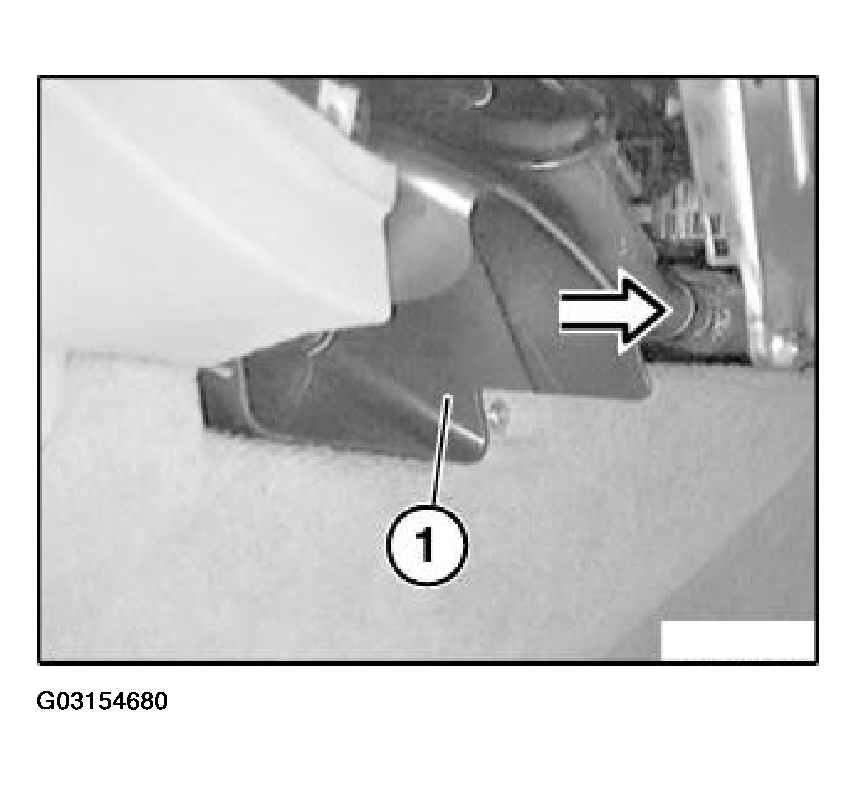

Unclip air duct for right footwell (1) and pull out in direction of arrow.

Fig 1: Removing Right Footwell Air Duct (Automatic A/C, From 09/97)

Courtesy of BMW OF NORTH AMERICA, INC.

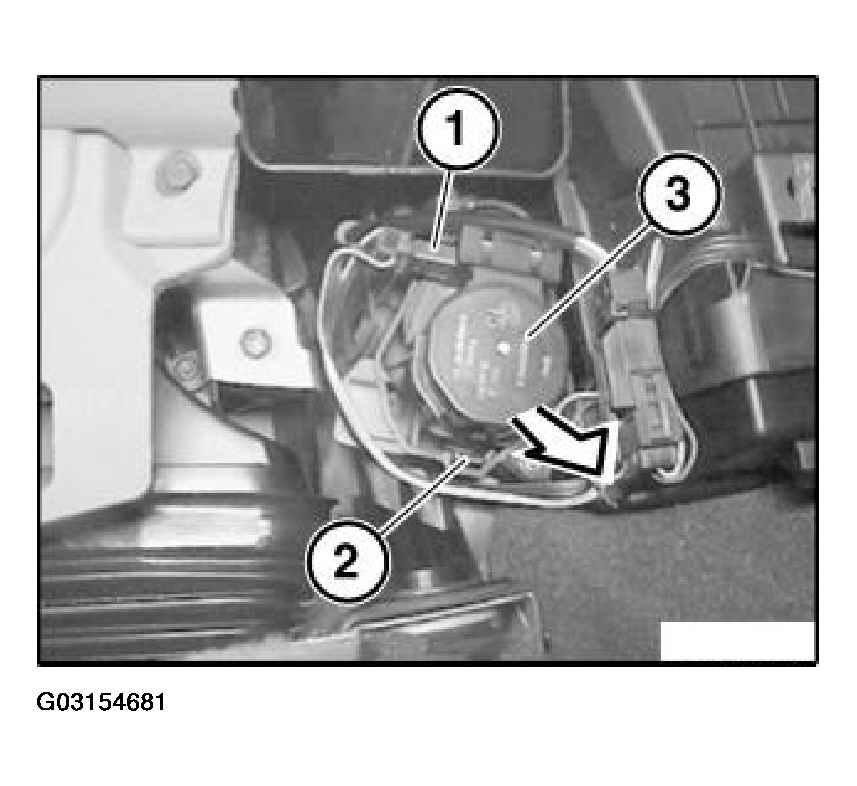

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Fig 2: Removing Servodrive (Automatic A/C, From 09/97)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of rear compartment flap to position of servodrive.

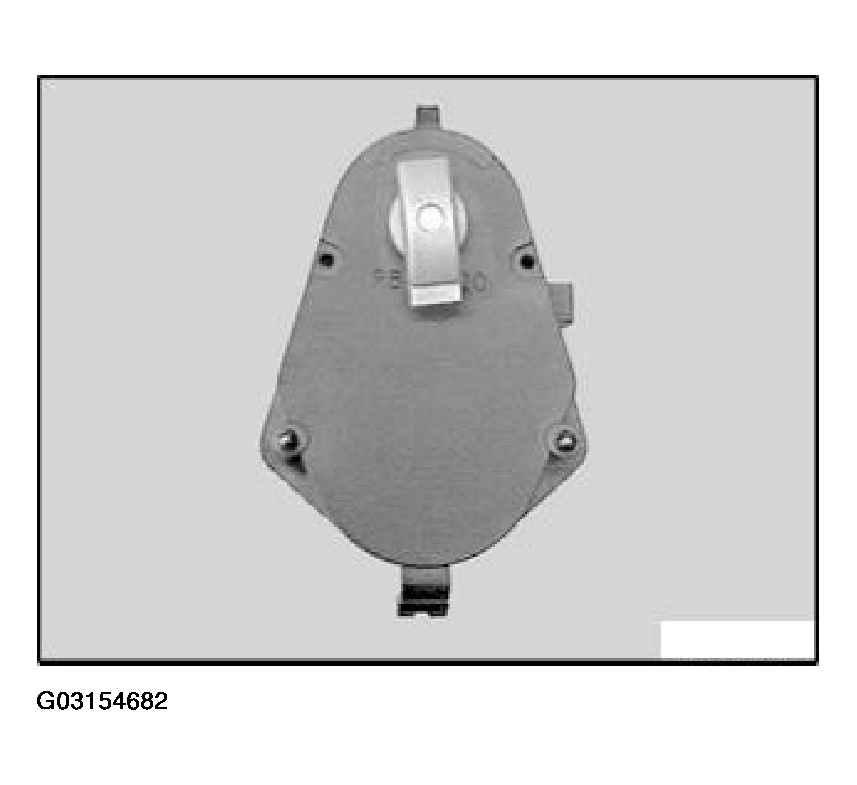

Fig 3: Identifying Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
