64 11 932 Replacing evaporator temperature sensor (A/C control)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

E39 only:

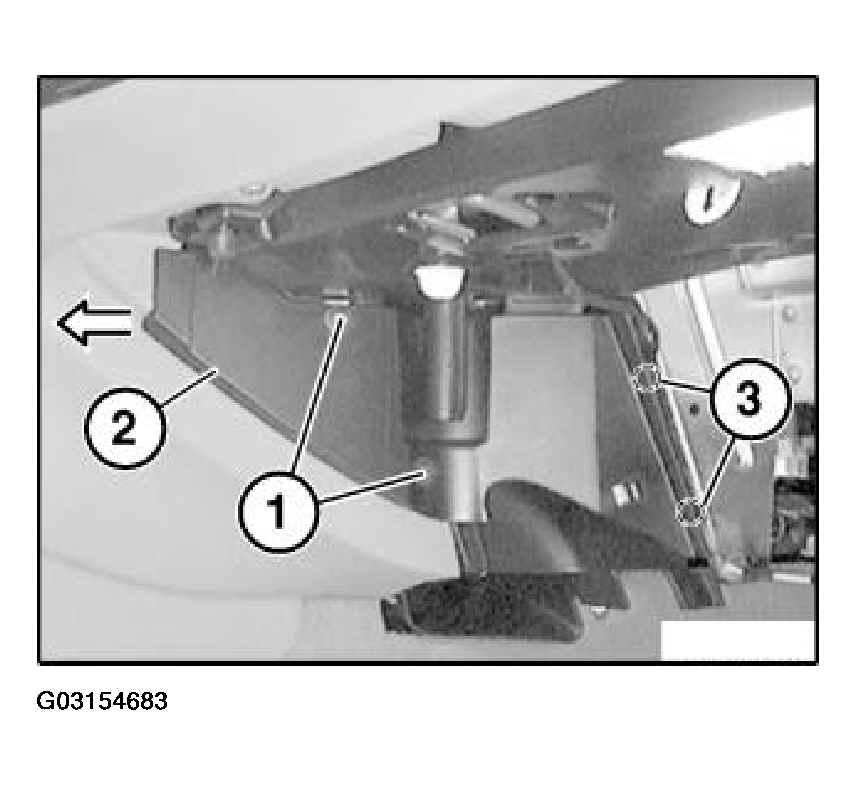

Release screws (1).

Pull cover on glovebox on left (2) in direction of arrow out of guides (3) and remove.

Fig 1: Removing Left Glovebox Cover

G03154683

Courtesy of BMW OF NORTH AMERICA, INC.

E39, E53:

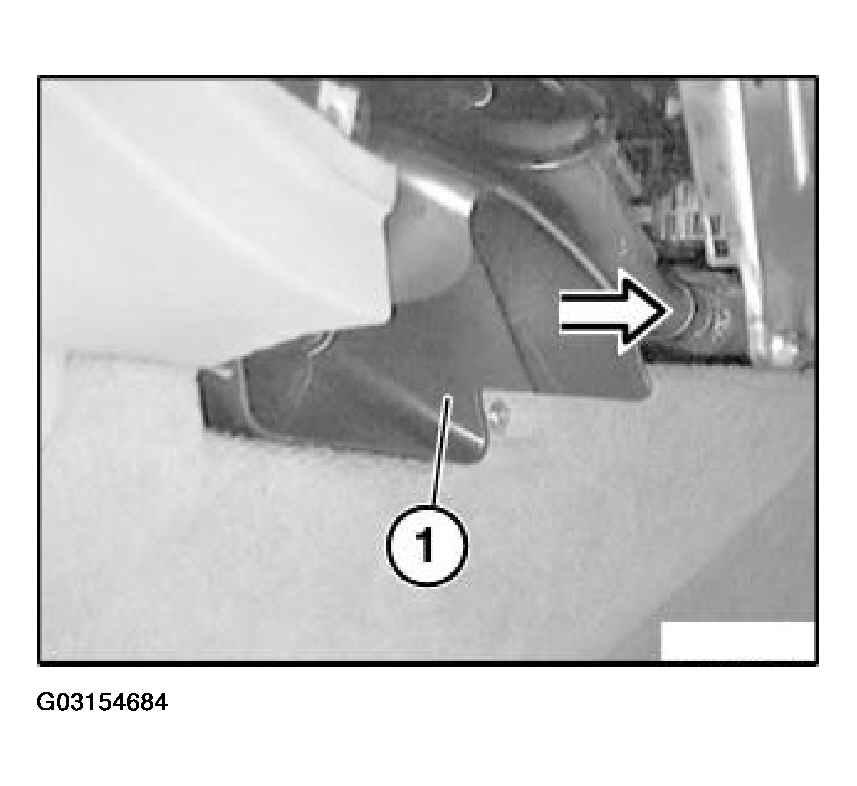

Unclip air duct for right footwell (1) and pull out in direction of arrow.

Fig 2: Removing Right Footwell Air Duct

G03154684

Courtesy of BMW OF NORTH AMERICA, INC.

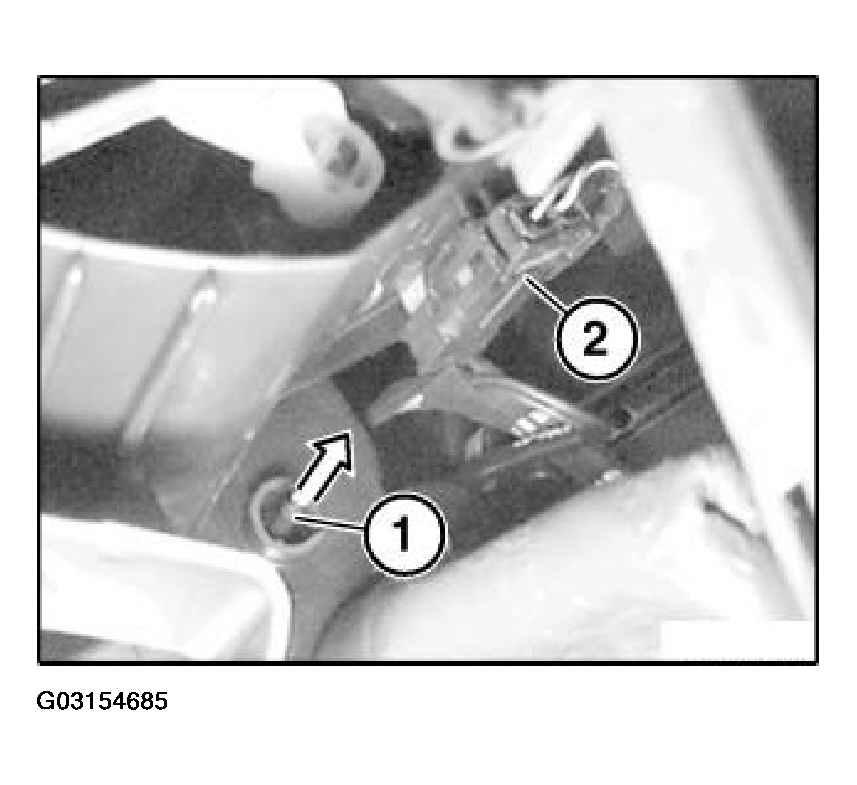

Break out repair cover (1) with pointed pliers in direction of arrow.

Disconnect connector (2).

Fig 3: Disconnecting Connector

G03154685

Courtesy of BMW OF NORTH AMERICA, INC.

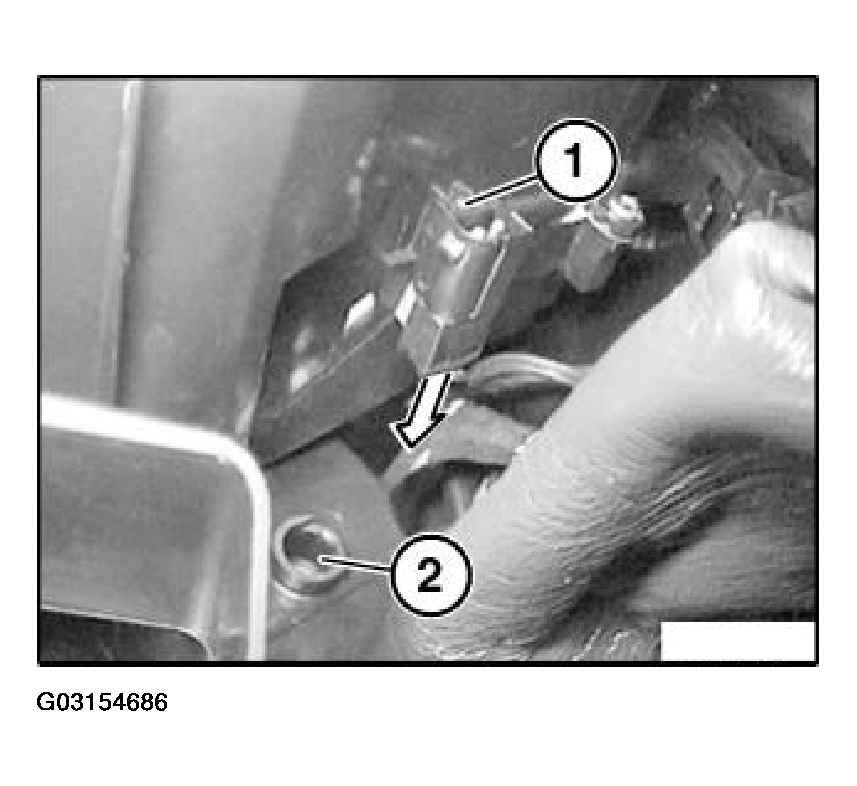

Unlock plug of faulty evaporator temperature sensor (1) and pull out in direction of arrow.

NOTE: Secure plug of faulty evaporator temperature sensor with fabric adhesive tape.

Insert new evaporator temperature sensor in opening (2) and lock into place.

Fig 4: Inserting Evaporator Temperature Sensor

G03154686

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

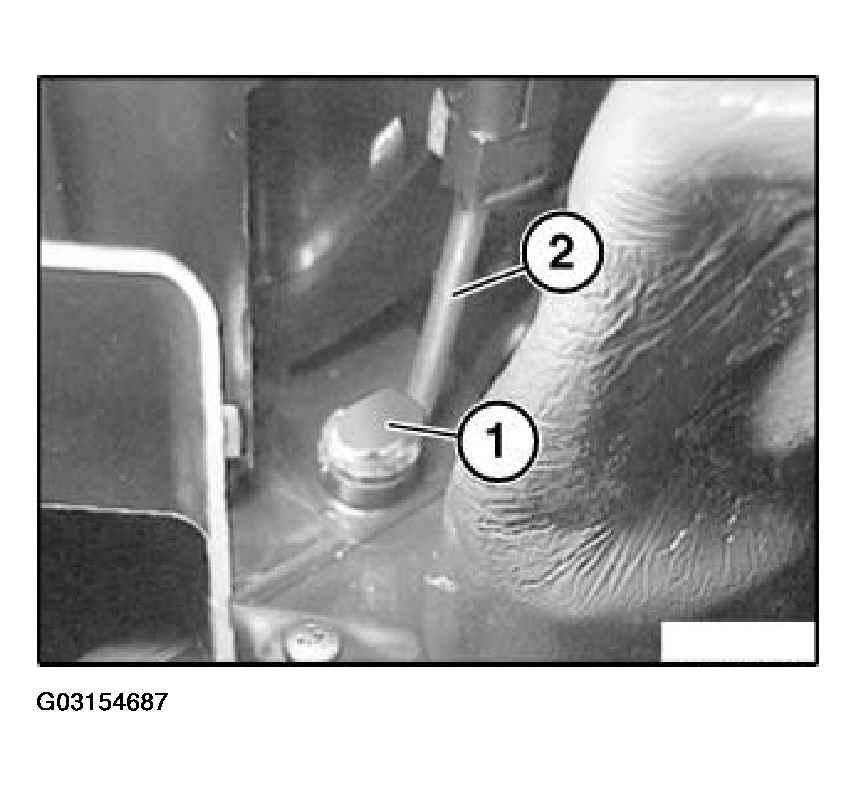

Make sure evaporator temperature sensor (1) and cable (2) are correctly seated.

Fig 5: Identifying Proper Installation Of Evaporator Temperature Sensor

G03154687

Courtesy of BMW OF NORTH AMERICA, INC.
