64 11 847 Replacing servodrive of dynamic air flap (automatic A/C, from 03/2000)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

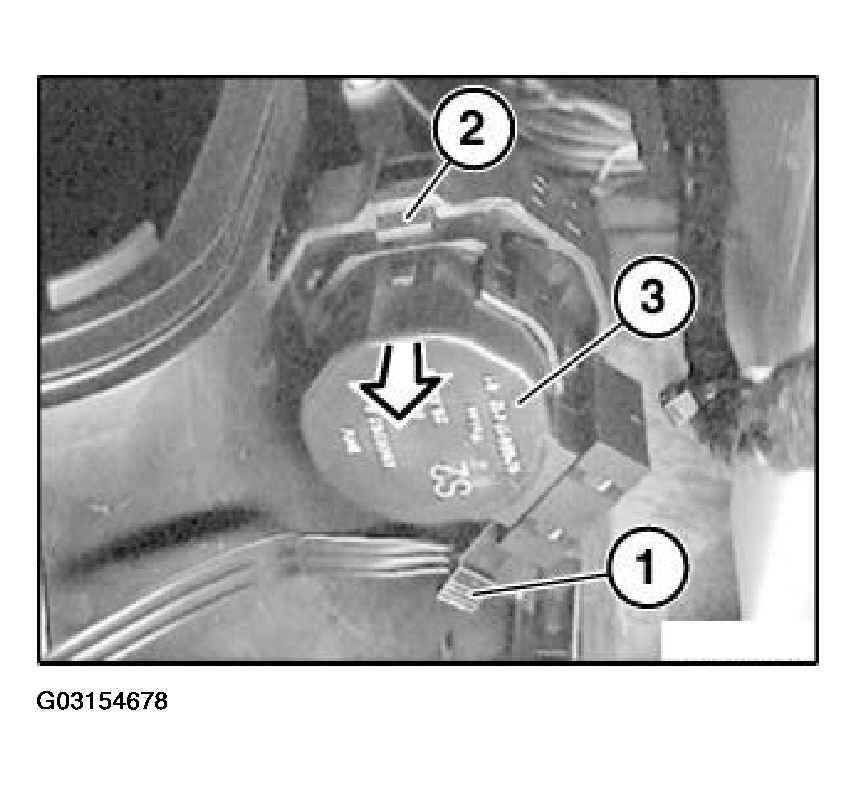

Fig 1: Removing Servodrive (Automatic A/C, From 03/2000)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of dynamic air flap to position of servodrive.

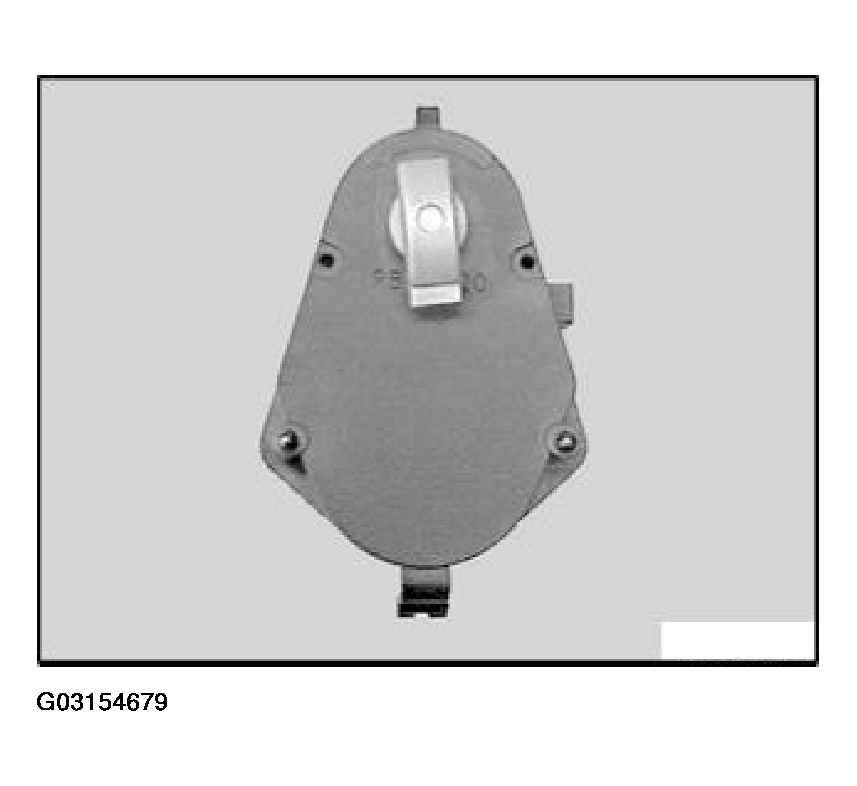

Fig 2: Identifying Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
