64 11 845 Replacing servodrive of defrosting flaps (automatic A/C)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove right glovebox. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

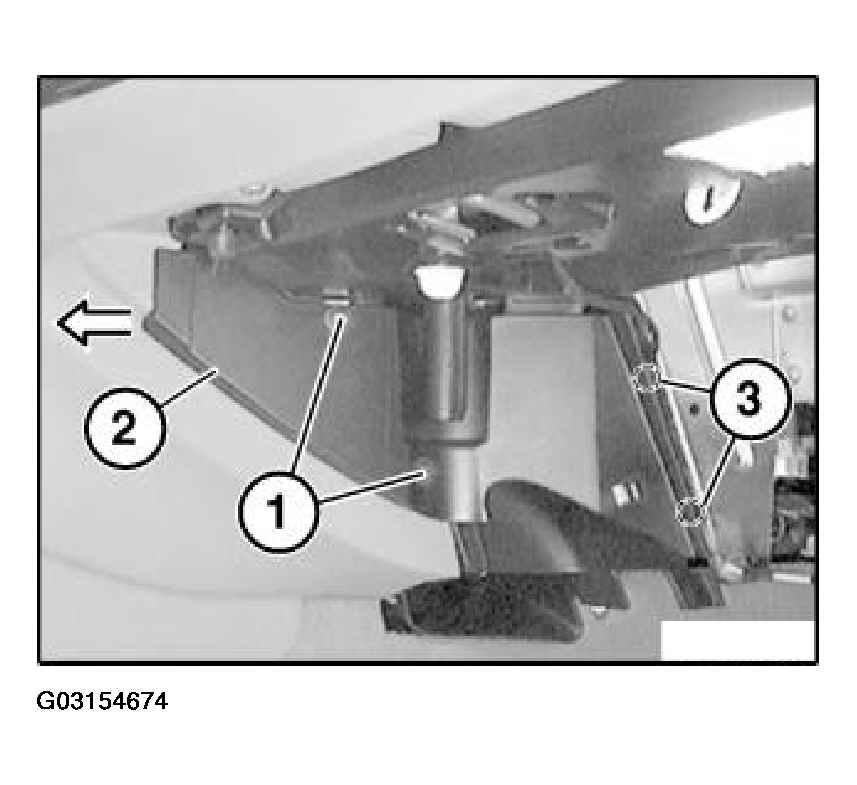

Release screws (1).
Pull cover on glovebox on left (2) in
direction of arrow out of guides (3) and remove.

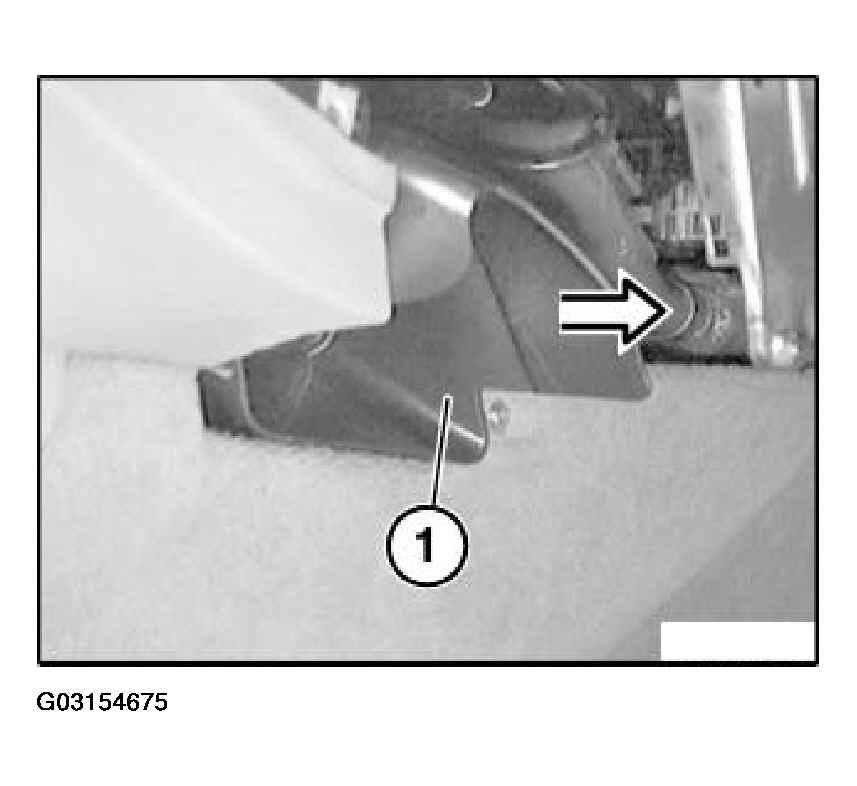

Unclip air duct for right footwell (1) and pull out in direction of arrow.

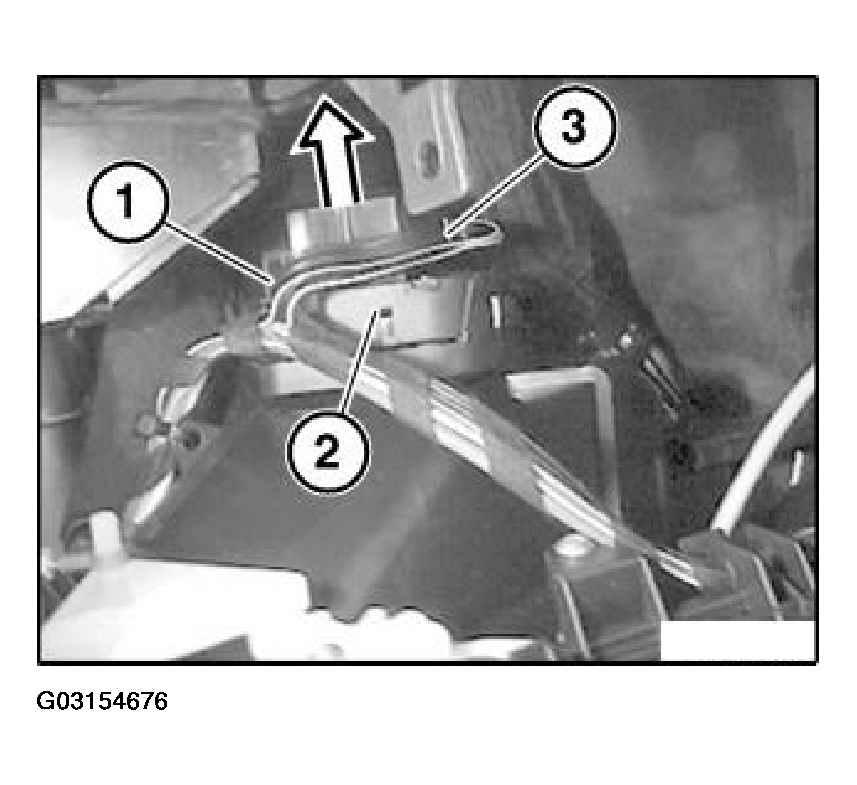

Unclip lock (1) and pull out servodrive (2) in direction of arrow. Disconnect plug connection (3).
Installation:

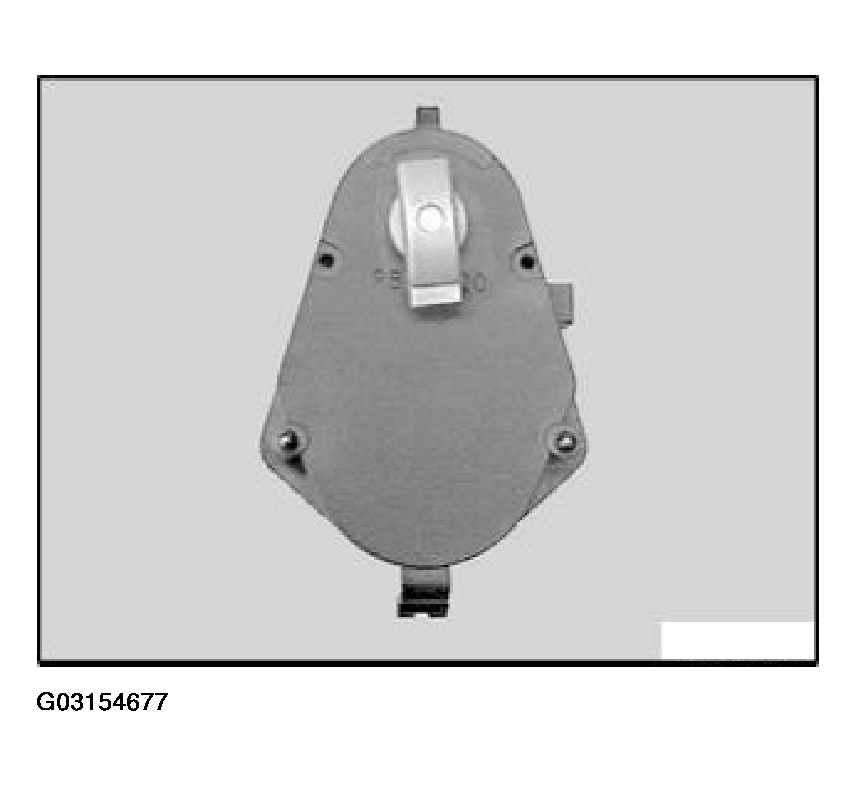

If necessary, align shaft of defrosting flaps to position of servodrive.
