64 11 820 Replacing servodrive of fresh air flaps (automatic A/C, up to 03/2000)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

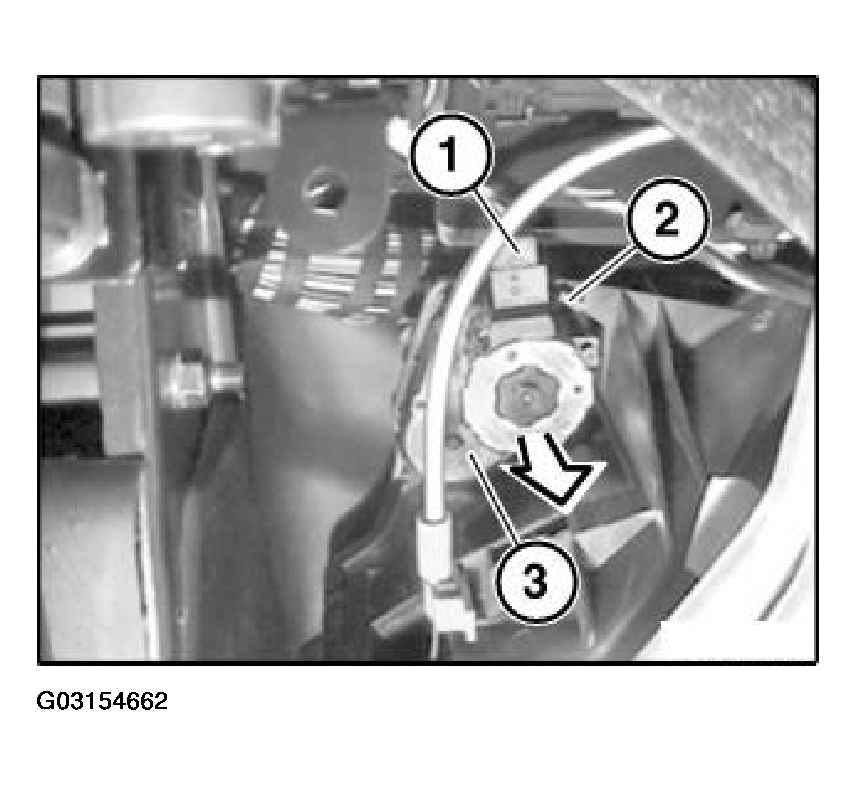

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of fresh air flaps to position of servodrive.

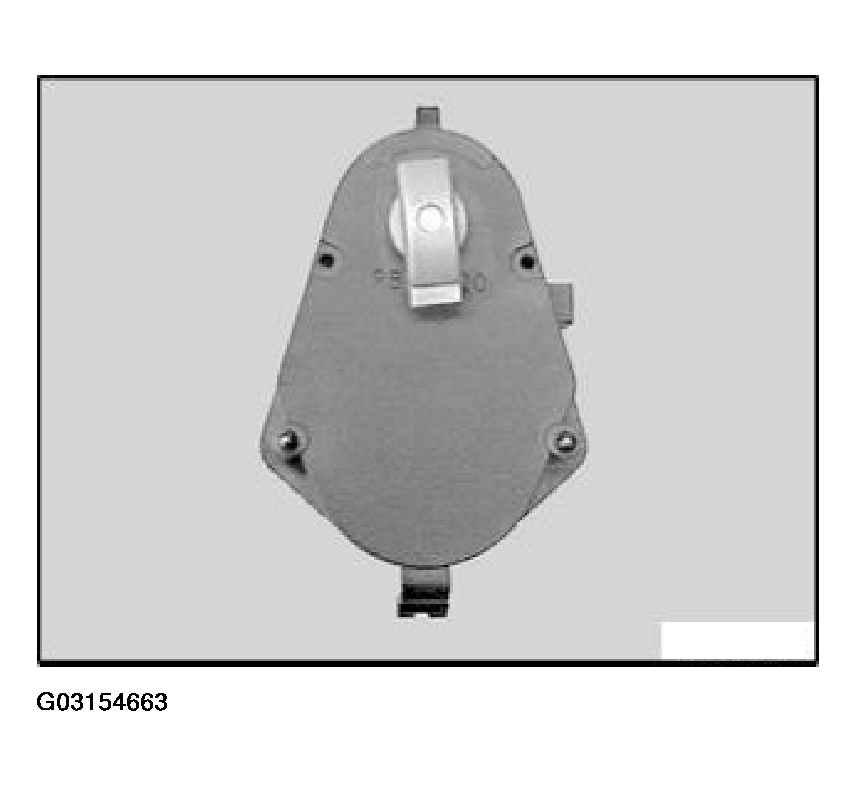

Fig 2: Identifying Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
