64 11 749 Removing and installing / replacing heater controls (automatic air conditioner): Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove radio or on-board monitor.
Refer to 65 11 030 REMOVING AND INSTALLING/REPLACING RADIO

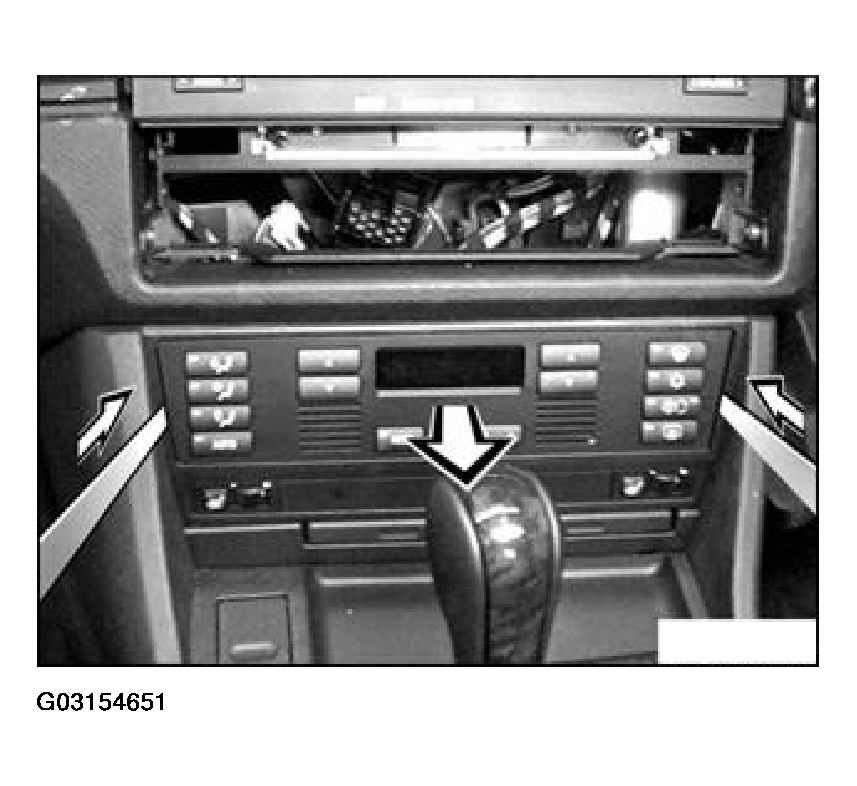

Press out controls through the radio aperture.
Pull off connectors.
