65 11 030 Removing and installing/replacing radio receiver

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

65 1 100

Radio without MID or IRIS

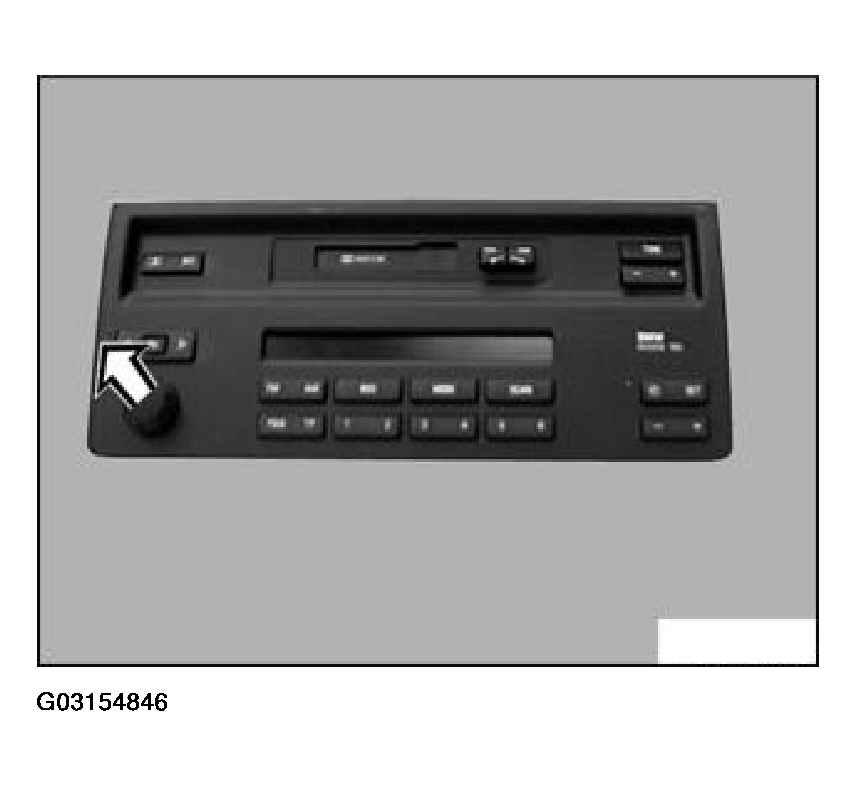

Remove knob from volume control.

Fig 1: Removing Knob From Volume Control

G03154846

Courtesy of BMW OF NORTH AMERICA, INC.

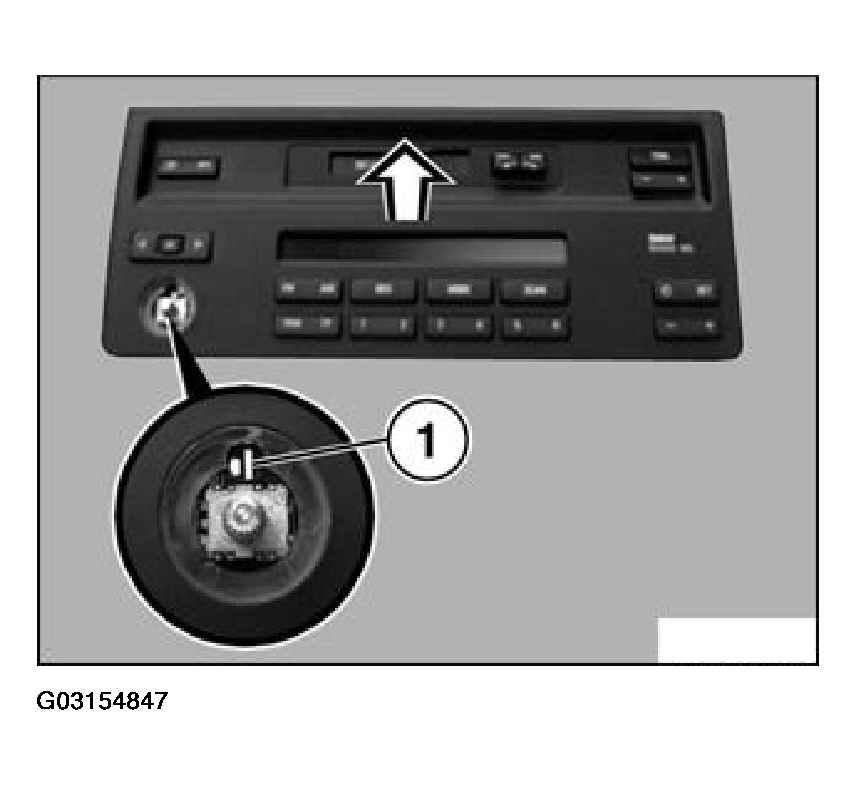

Insert screwdriver (5.5) into slot (1) approx. 1 mm and turn through 90°.

Fig 2: Identifying Slot

G03154847

Courtesy of BMW OF NORTH AMERICA, INC.

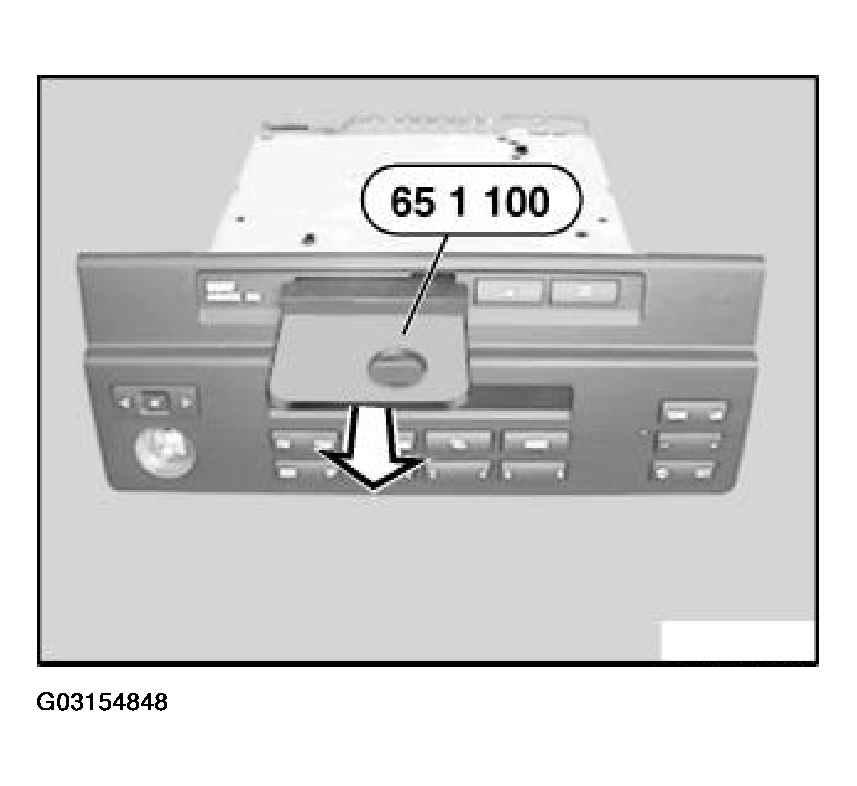

Hook special tool 65 1 100 into cassette socket and pull out radio.

Fig 3: Hooking Special Tool Into Cassette Socket

G03154848

Courtesy of BMW OF NORTH AMERICA, INC.

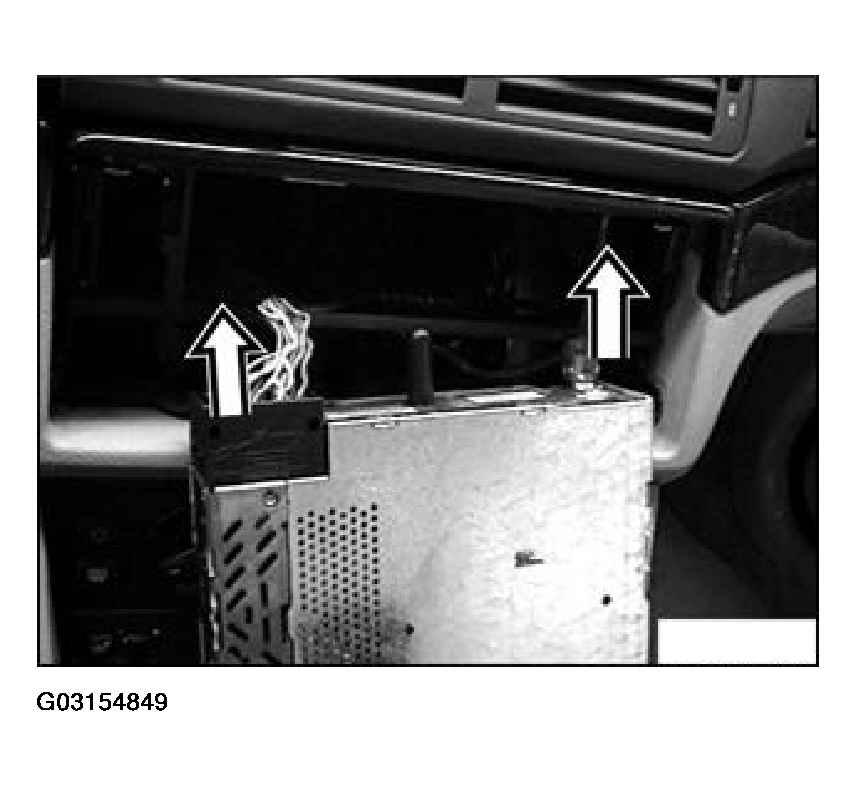

Unfasten plug connection.

Fig 4: Disconnecting Plug Connection

G03154849

Courtesy of BMW OF NORTH AMERICA, INC.

Radios with MID or IRIS

Remove MID or IRIS.

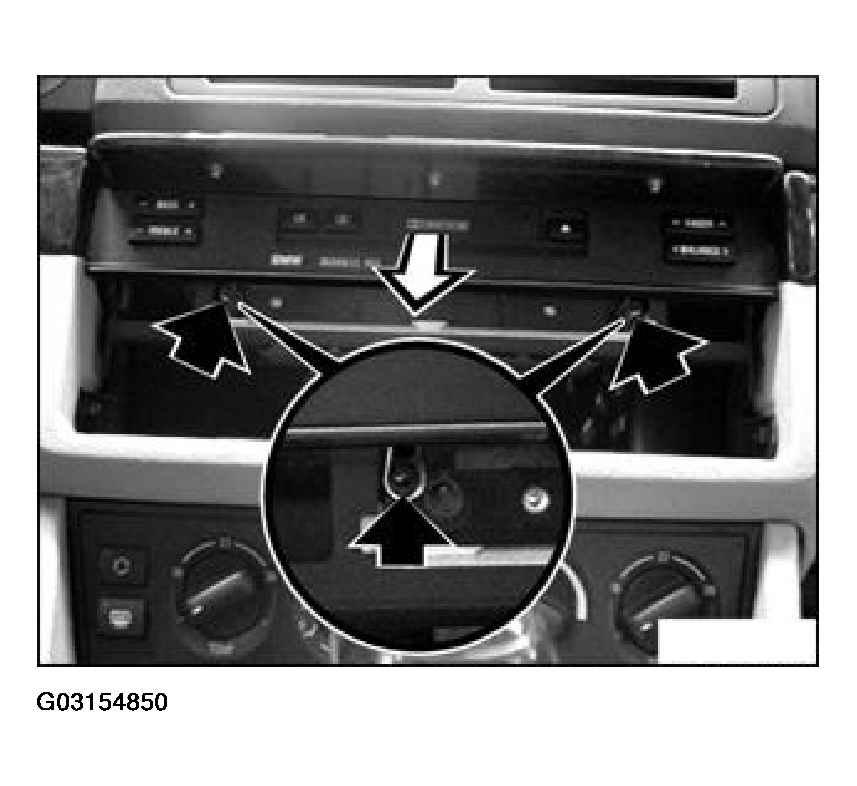

Release hexagon-socket-head cap screws on left and right and pull out radio.

Fig 5: Releasing Hexagon-Socket-Head Cap Screws

G03154850

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection.

Fig 6: Disconnecting Plug Connection

G03154851

Courtesy of BMW OF NORTH AMERICA, INC.
