64 11 748 Removing and installing heater controls (A/C control)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove switch unit from center console. See 61 31 057 REMOVING AND INSTALLING SWITCH UNIT IN CENTER CONSOLE .

Press retaining hook (1) upwards through opening for switch unit.

Remove heating controls (2).

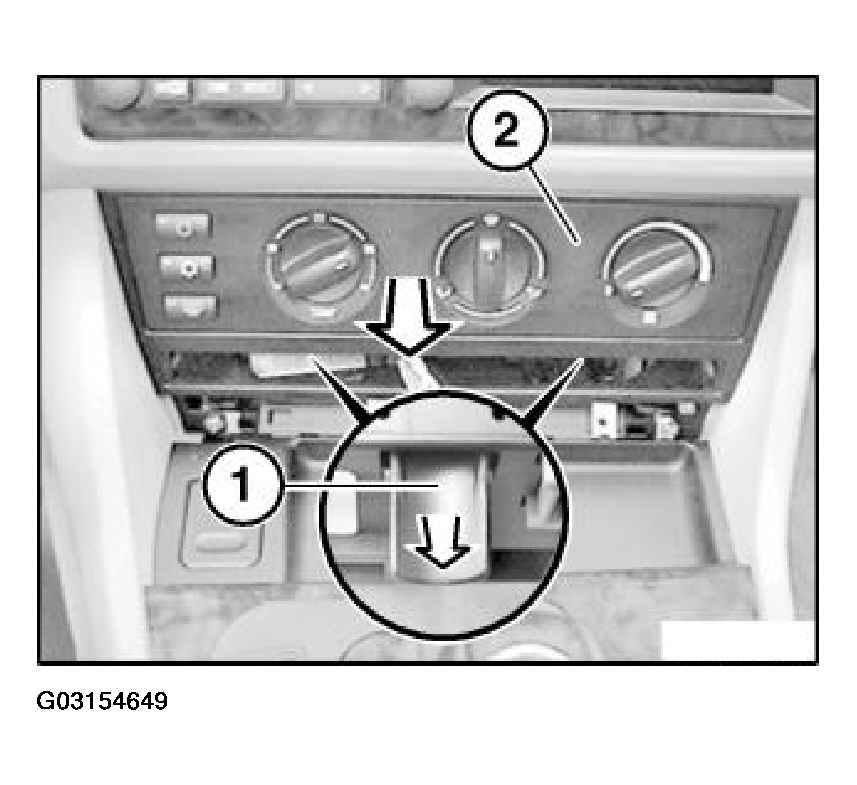

Fig 1: Removing Heating Controls

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1).

Unclip Bowden cables (2) and remove.

Installation:

Pay attention to color coding of Bowden cables (2).

Remove heating controls (3).

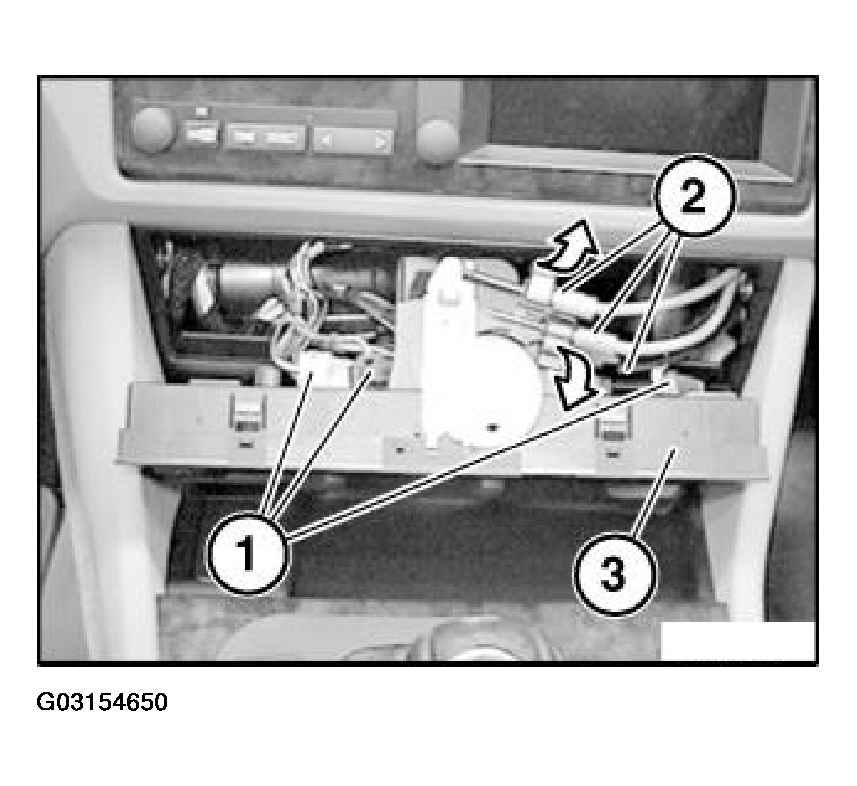

Fig 2: Removing Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.
