61 31 057 Removing and installing switch unit in center console

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

009 340

Lever out switch unit (1) with special tool 00 9 340 and withdraw in direction of arrow.

Disconnect plug connection behind it and remove switch unit (1).

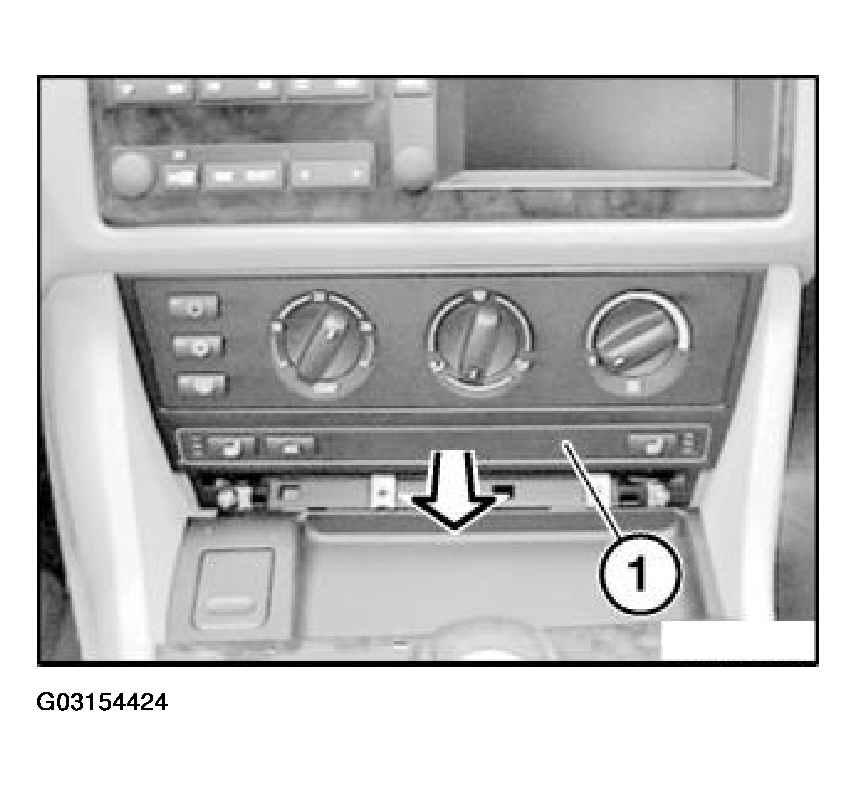

Fig 1: Removing And Installing Switch Unit In Center Console

Courtesy of BMW OF NORTH AMERICA, INC.
