64 11 200 Removing and installing/replacing heater: Installation:

1. Fit air duct to end wall, twist and then insert in bottom of microfilter.

Fig 1: Installing Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

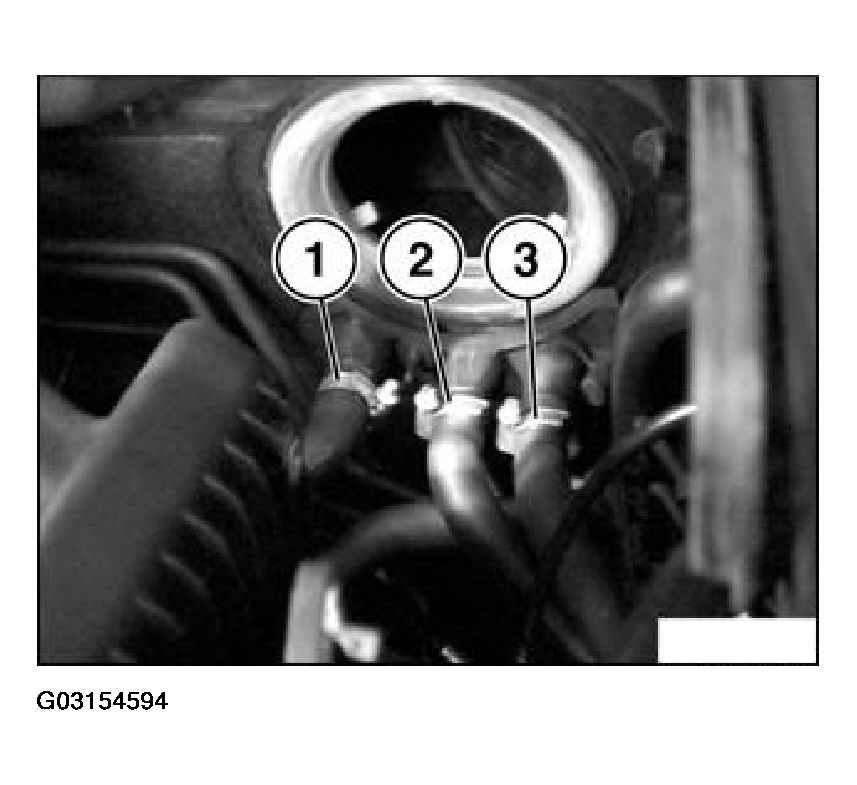

Unfasten clips (1 to 3) and remove water hoses. Carefully blow out lines to clear remaining coolant from heater.

Fig 2: Removing Water Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

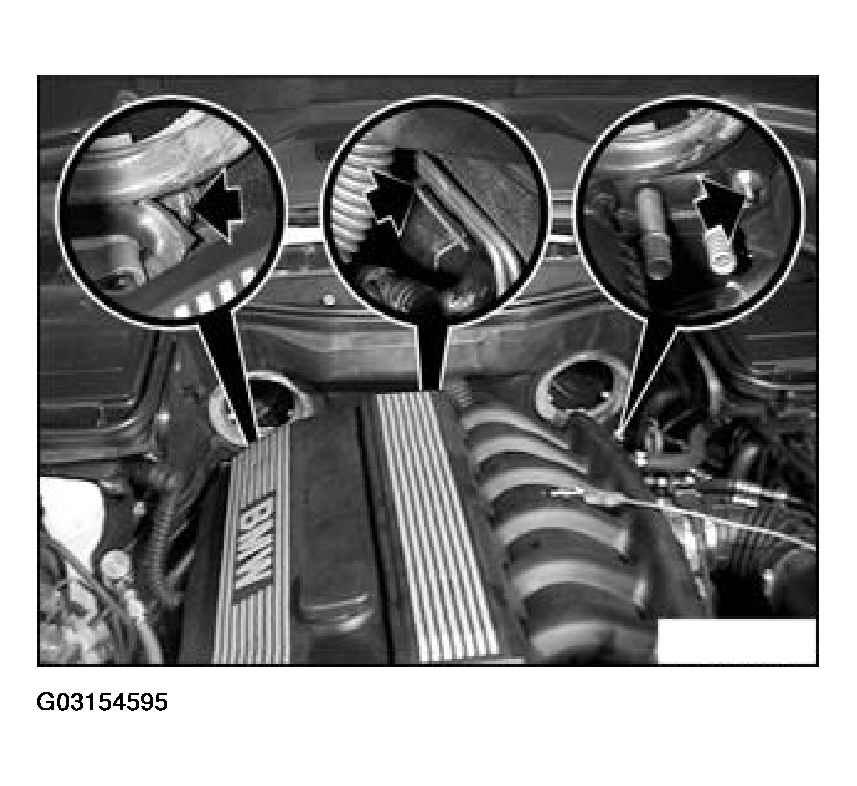

Unfasten screws on end wall.

Fig 3: Releasing Screws On End Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim on upper section of instrument panel,

refer to 51 45 050 REMOVING AND INSTALLING TRIM FOR UPPER SECTION OF INSTRUMENT PANEL .

Remove complete oddments tray,

refer to 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY .

Remove right glovebox,

refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

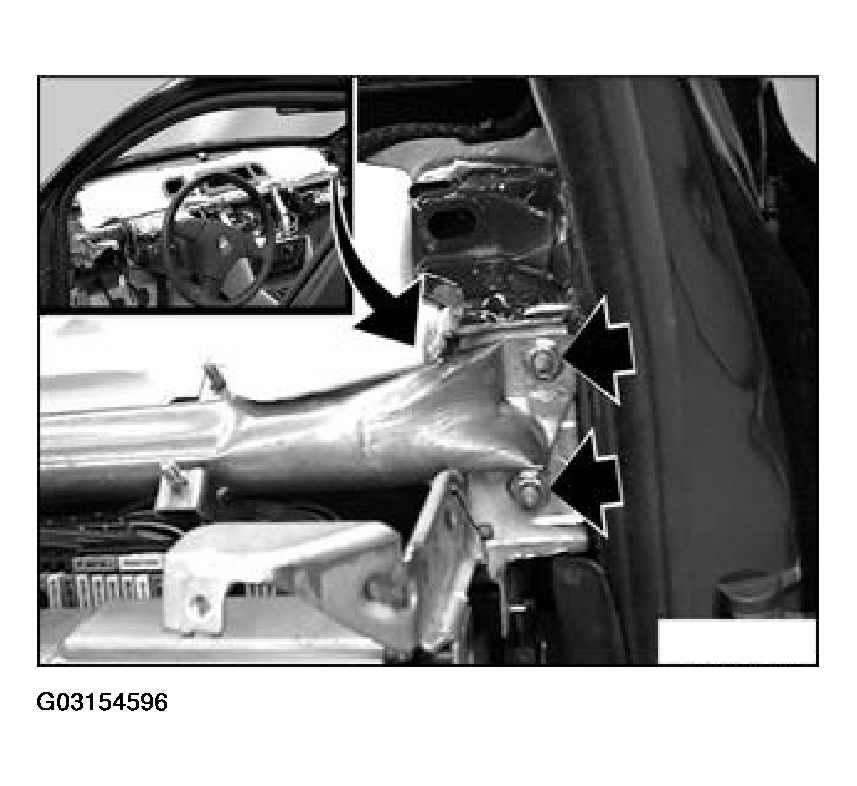

Unfasten right transverse reinforcement.

Fig 4: Removing Instrument Panel Upper Section Trim

Courtesy of BMW OF NORTH AMERICA, INC.

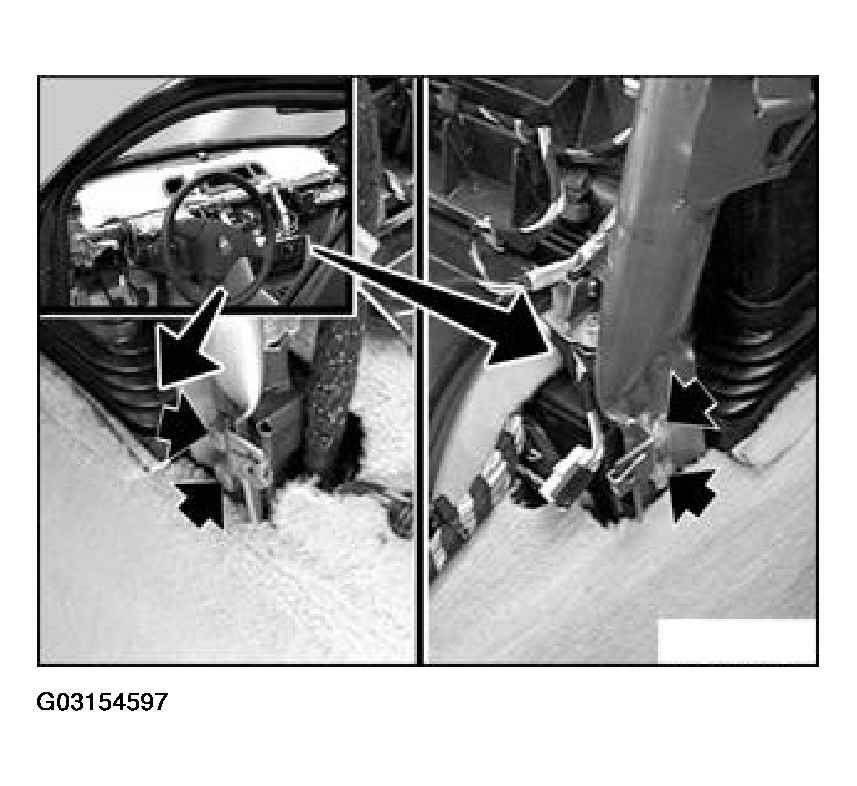

Unfasten transverse reinforcement on right and left sides of center console.

Fig 5: Loosening Transverse Reinforcement On Right And Left Sides Of Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

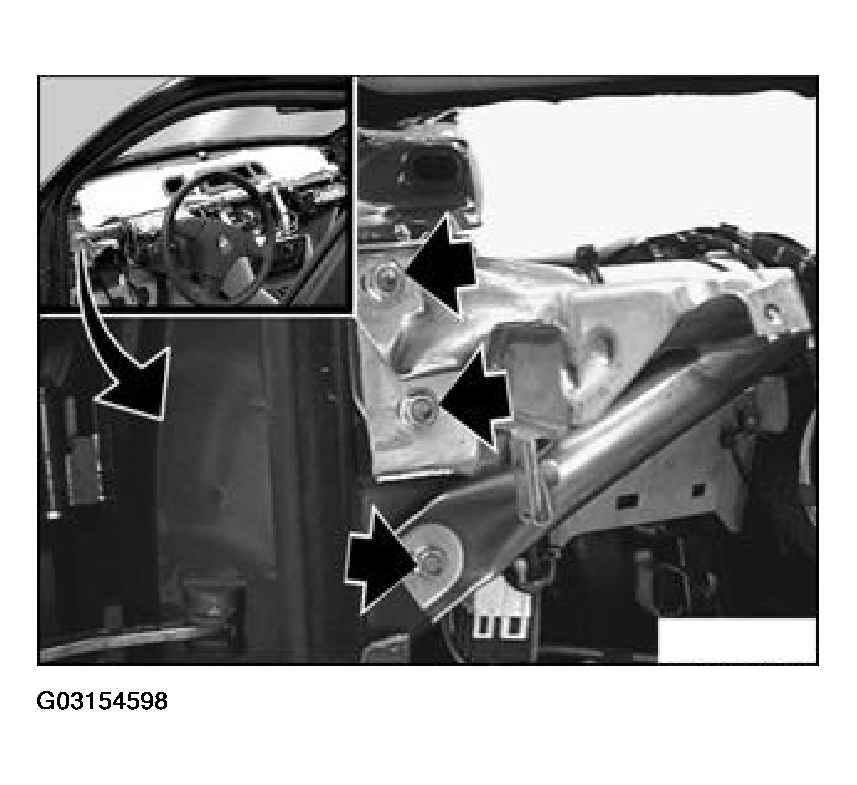

Unfasten left transverse reinforcement.

Fig 6: Loosening Left Transverse Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

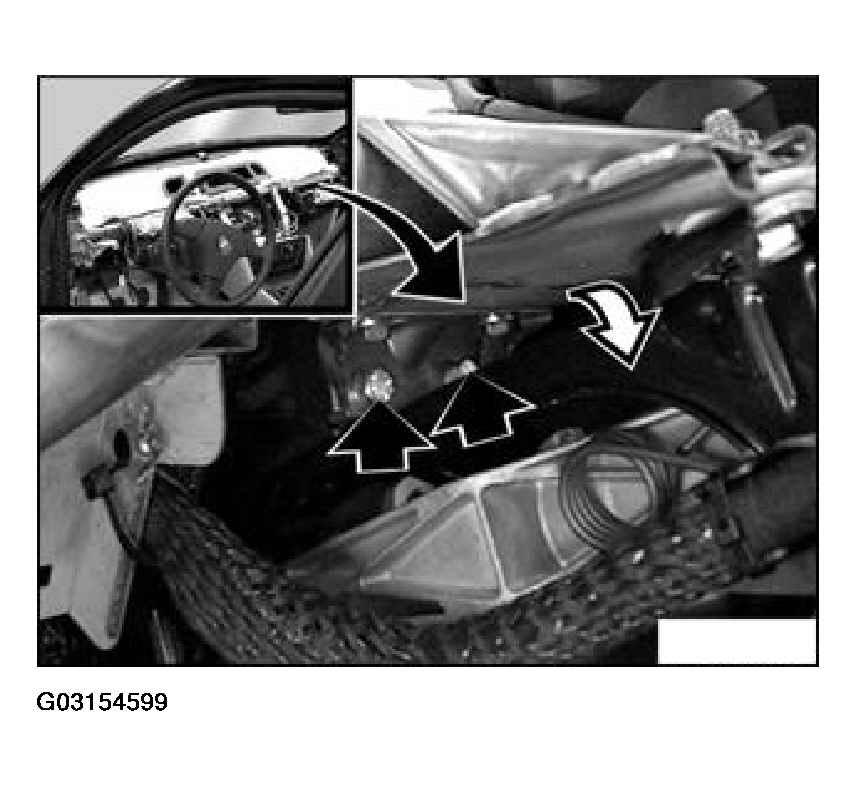

Unfasten steering column from transverse reinforcement and lower steering column.

Fig 7: Loosening Steering Column From Transverse Reinforcement And Lower Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

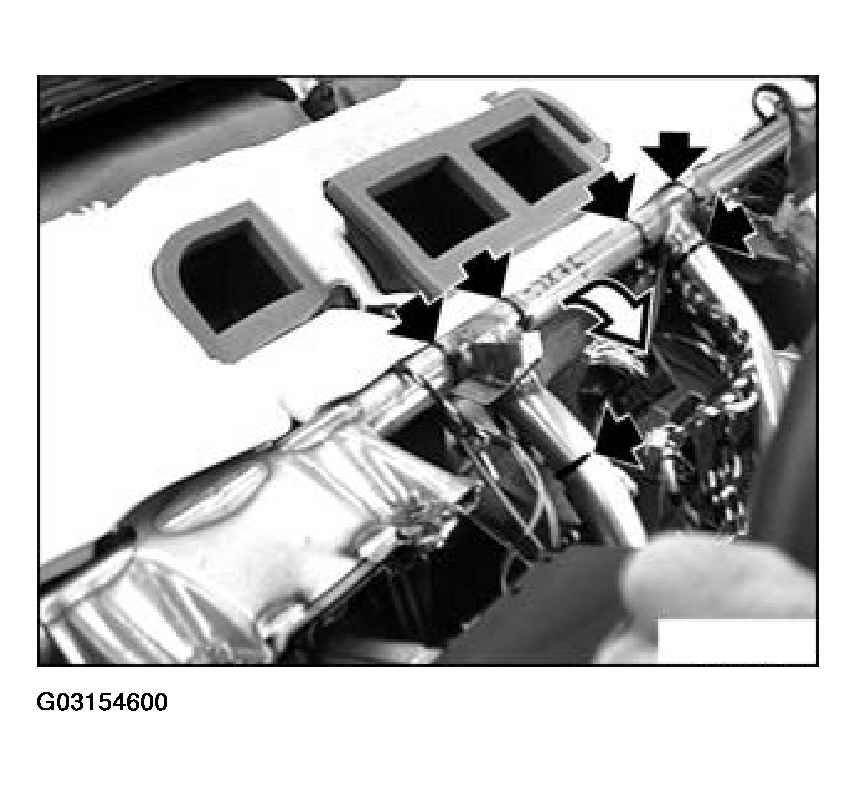

Unfasten all cable ties on the transverse reinforcement and lift out transverse reinforcement.

Fig 8: Releasing Cable Ties And Removing Transverse Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

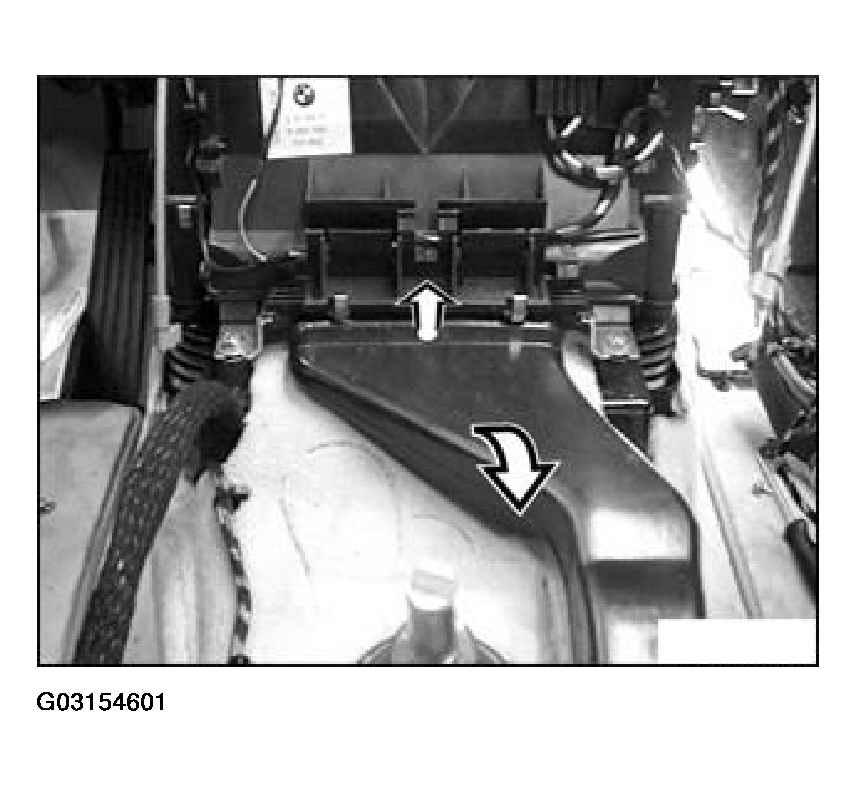

Unfasten expanding rivet and lift out air duct from rear compartment.

Fig 9: Removing Air Duct From Rear Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

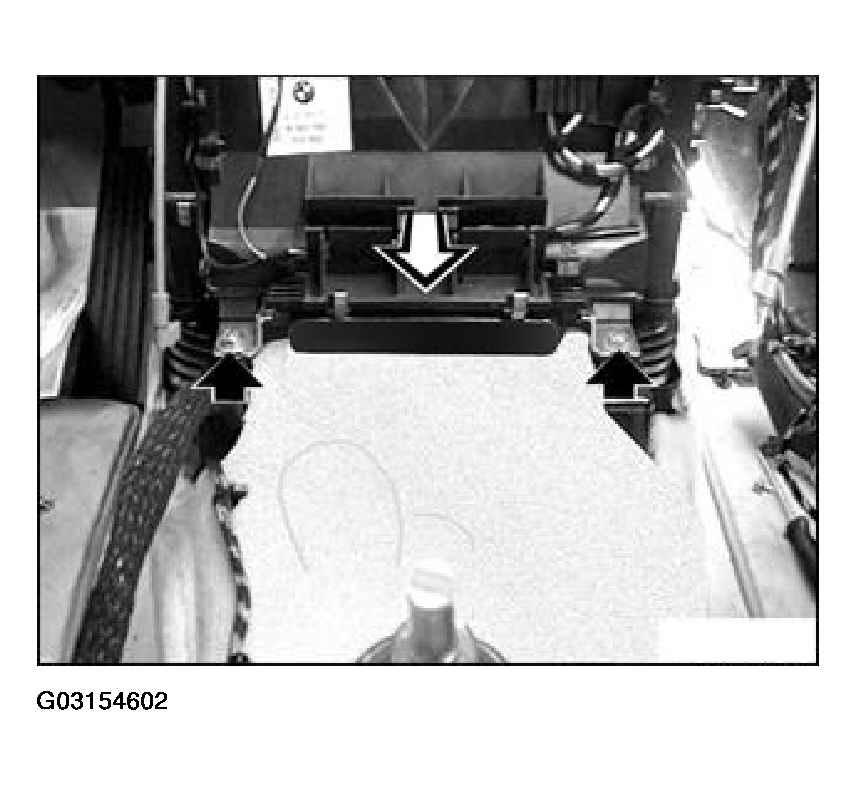

Unfasten screws, detach plug connection from heating and lift out heater.

Fig 10: Detaching Plug Connection From Heating And Removing Heater

Courtesy of BMW OF NORTH AMERICA, INC.
