64 53 550 Removing and installing or replacing condenser for air conditioner

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Refrigerant drawn off from A/C system. See 64 50 009 Drawing Off, Evacuating And Filling A/C System (R 134a)

Remove radiator. See 17 11 000 REMOVING AND INSTALLING RADIATOR .

Remove cassette. See 17 11 530 Removing And Installing Cassette (Condenser For Air Conditioner) .

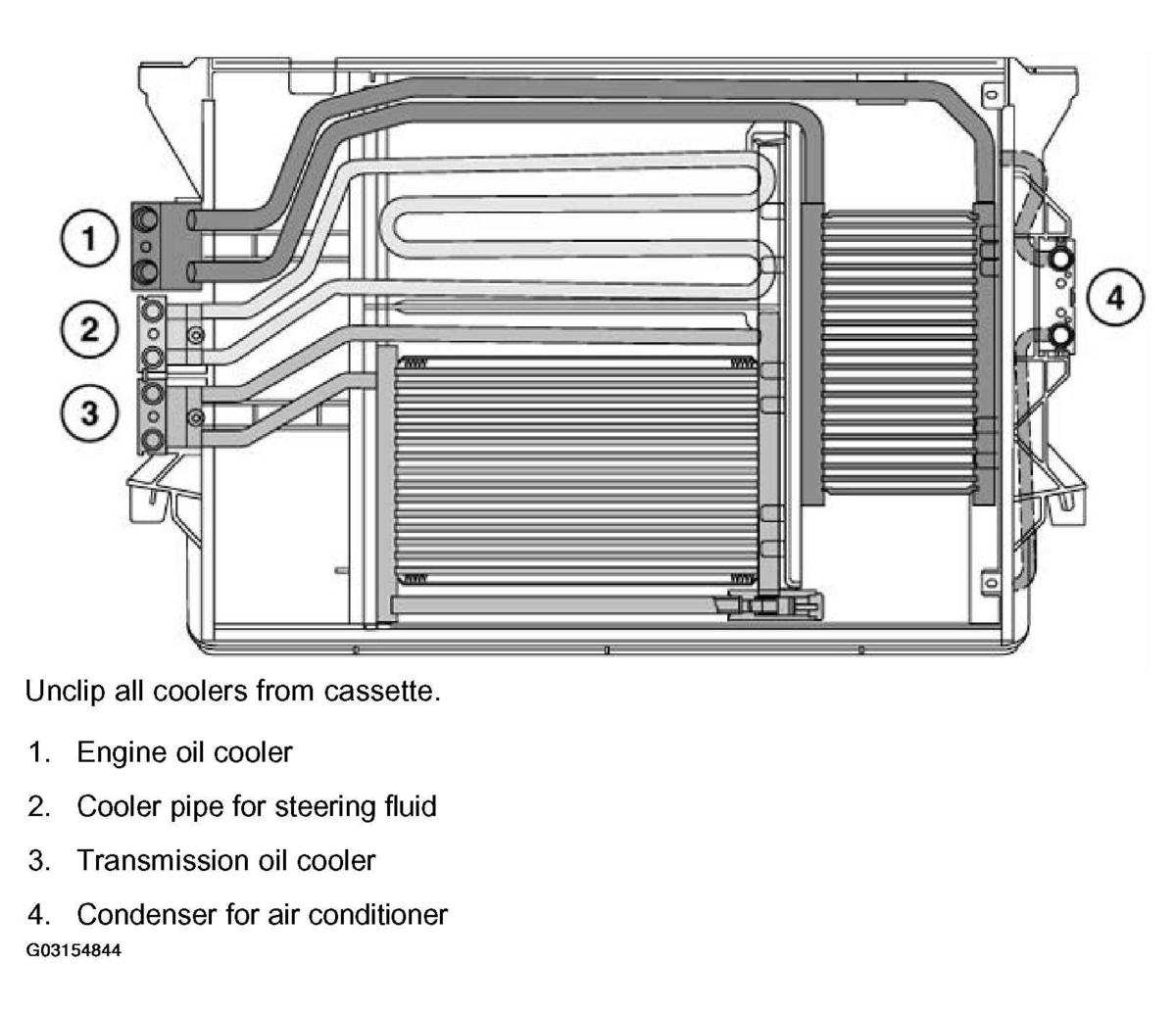

Fig 1: Identifying Cassette Components

Courtesy of BMW OF NORTH AMERICA, INC.

E52 only:

Unclip condenser (1) and remove in direction of arrow.

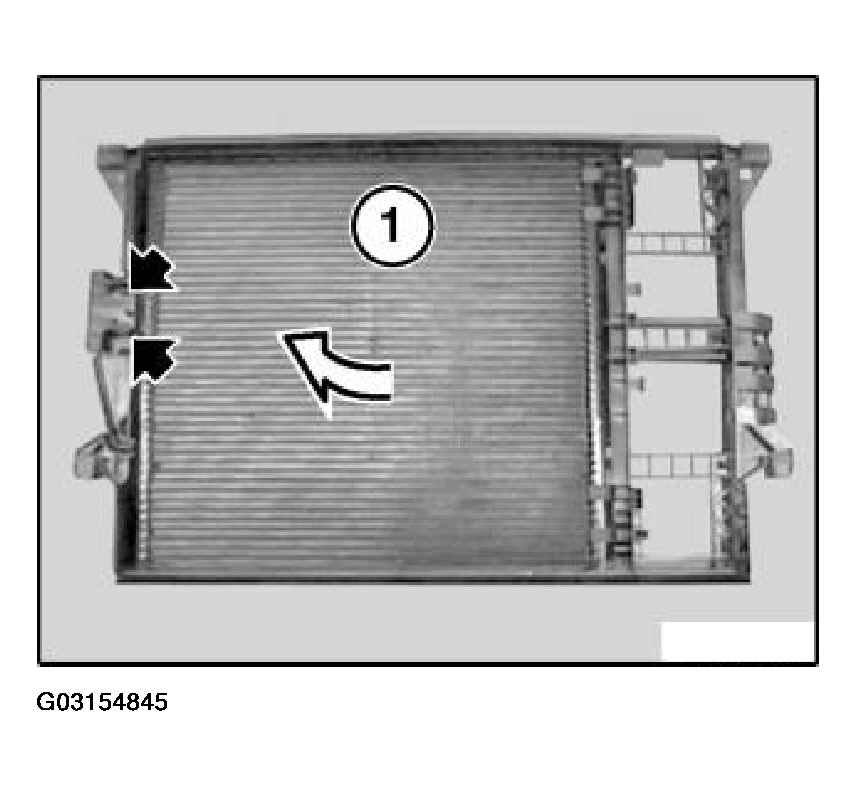

Fig 2: Removing Condenser

Courtesy of BMW OF NORTH AMERICA, INC.
