64 53 510 Removing and installing / replacing drier flask for air conditioner

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A/C system is drawn off. See 64 50 009 Drawing Off, Evacuating And Filling A/C System (R 134a)

Follow instructions for dryer bottle replacement. See 64 53... Notes On Replacing Drier Bottle Or Drier Insert .

Remove complete right headlight. See 63 12 002 REMOVING AND INSTALLING/REPLACING RIGHT HEADLIGHT .

Remove holder for headlight mounting. See 63 12 950 REPLACE ONE BRACKET FOR HEADLIGHT MOUNT .

Unfasten screws.

NOTE: Pull pressure and intake pipes upwards and fit with plugs if A/C system remains open for longer than one hour.

Installation:

Replace sealing rings.

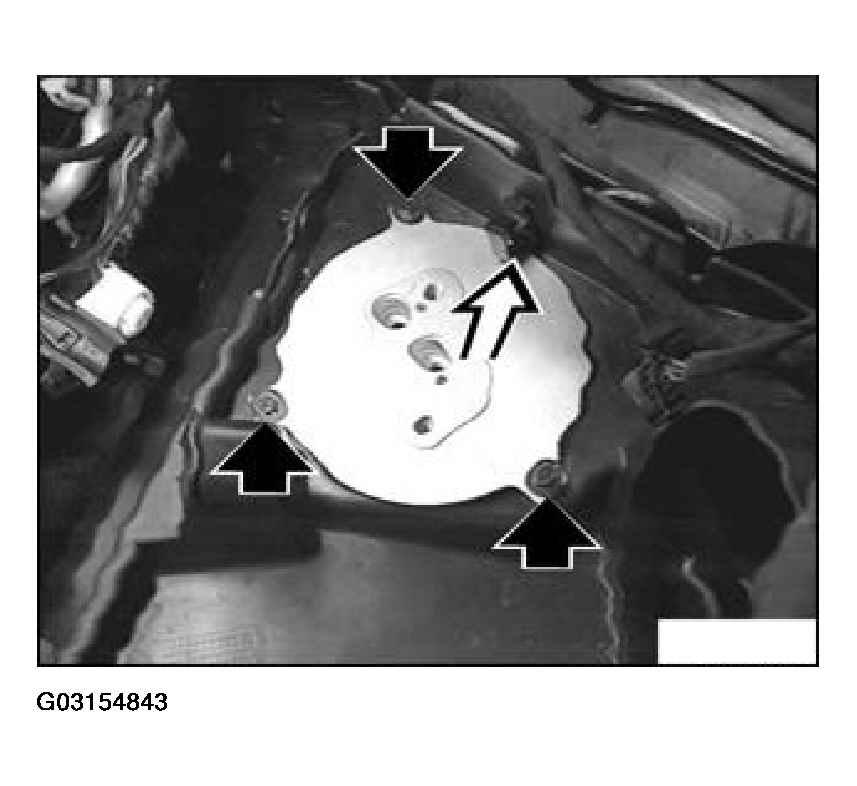

Fig 1: Releasing Screws And Pulling Pressure And Suction Pipe And Fitting Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and pull drier flask upwards to remove.

NOTE: In warranty cases, seal line openings with plugs of new dryer bottle.

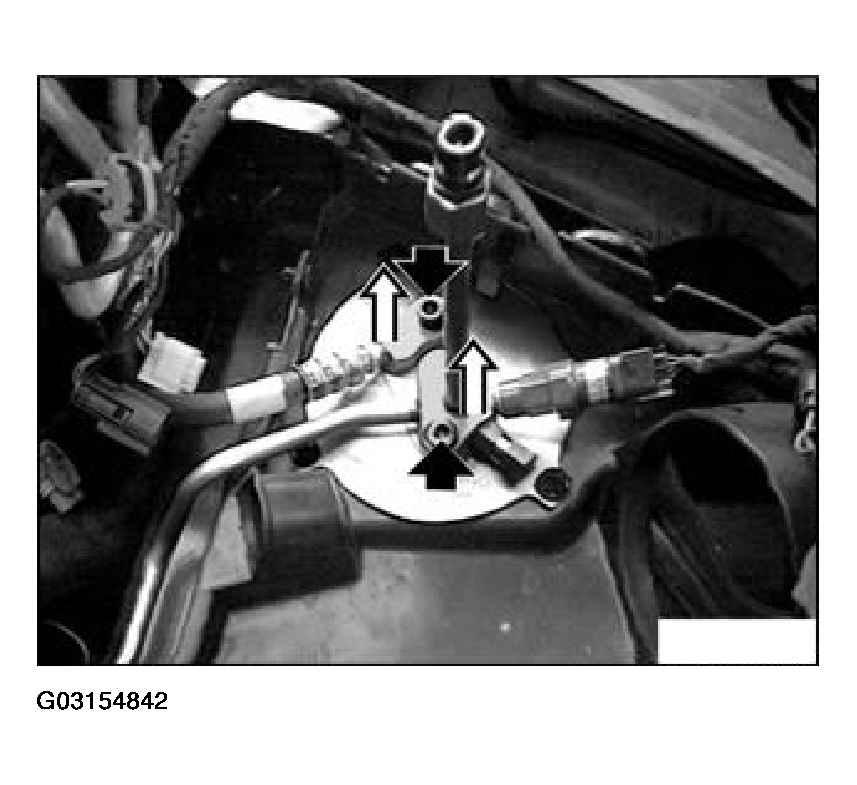

Fig 2: Releasing Screw And Pulling Drier Flask

Courtesy of BMW OF NORTH AMERICA, INC.
