63 12 950 Replace one bracket for headlight mount
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove complete headlight.

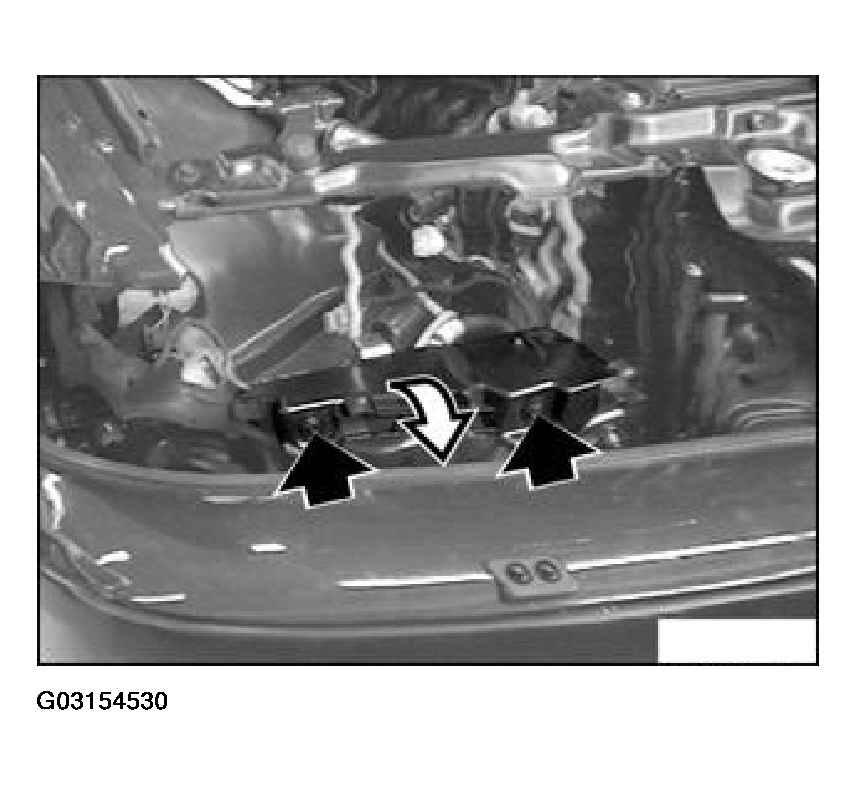

Release screws and remove holder for headlight mounting.
Installation:
Install holder for headlight mounting, tighten screws until handtight.

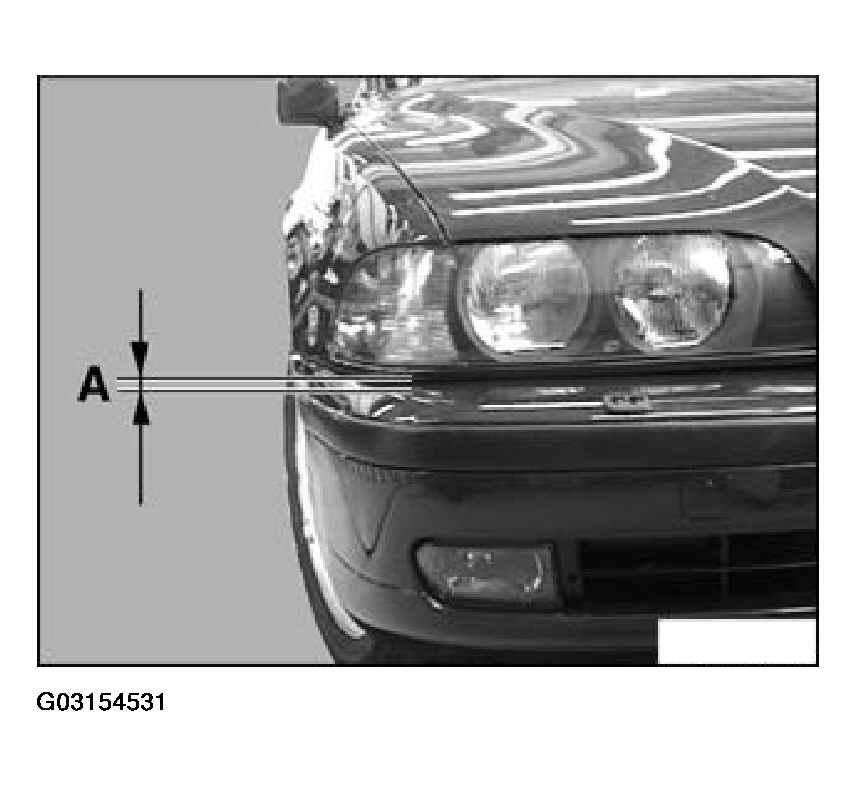

Install headlight and adjust gap between headlight and bumper, gap measurement (A) approx. 5 mm.
Remove headlight again.
Tighten down screws on holder for headlight mounting.
Reinstall headlight.
Adjust headlights.
