17 11 530 Removing and installing cassette (condenser for air conditioner): Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove radiator. See 17 11 000 REMOVING AND INSTALLING RADIATOR (M62)
NOTE:
The condenser for the A/C system is integrated in the cassette.
At the same time, depending on the model of vehicle, the individual coolers for steering hydraulics, automatic transmission and engine oil are installed in the cassette.
At the same time, depending on the model of vehicle, the individual coolers for steering hydraulics, automatic transmission and engine oil are installed in the cassette.

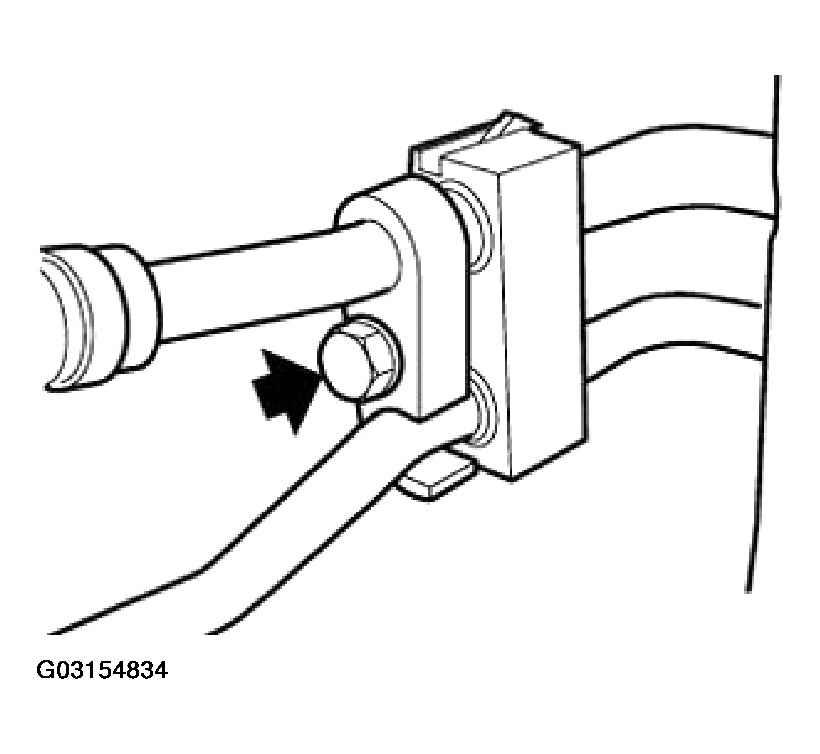

Disconnect lines for power steering and if necessary engine and transmission oil coolers.
