64 12 005 Checking function of independent heating (Thermo Top S)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Carry out function check as described in DIS

Remove front left wheel. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

Remove trim panel from front left wheelhouse. See 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER

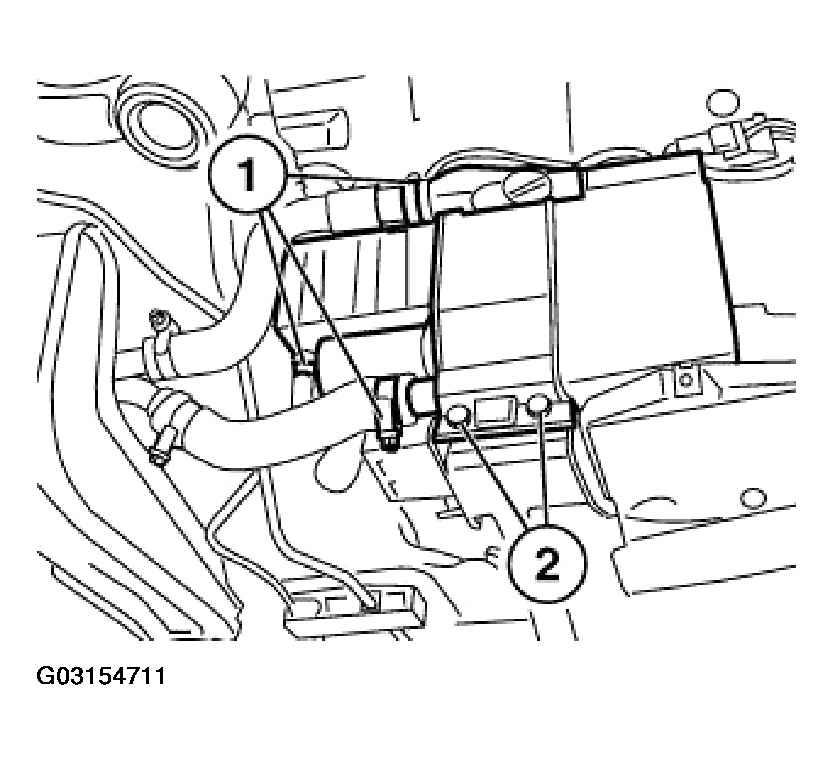

Release screws (2) and turn over heater.

Fig 1: Releasing Screws And Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

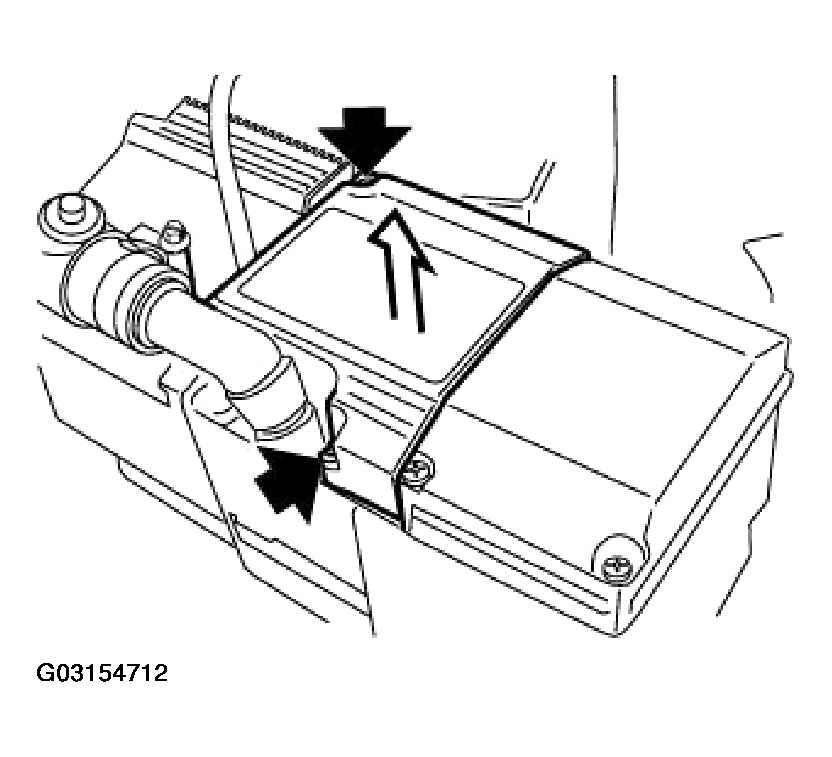

Release screws and remove central cover.

Fig 2: Removing Central Cover

Courtesy of BMW OF NORTH AMERICA, INC.

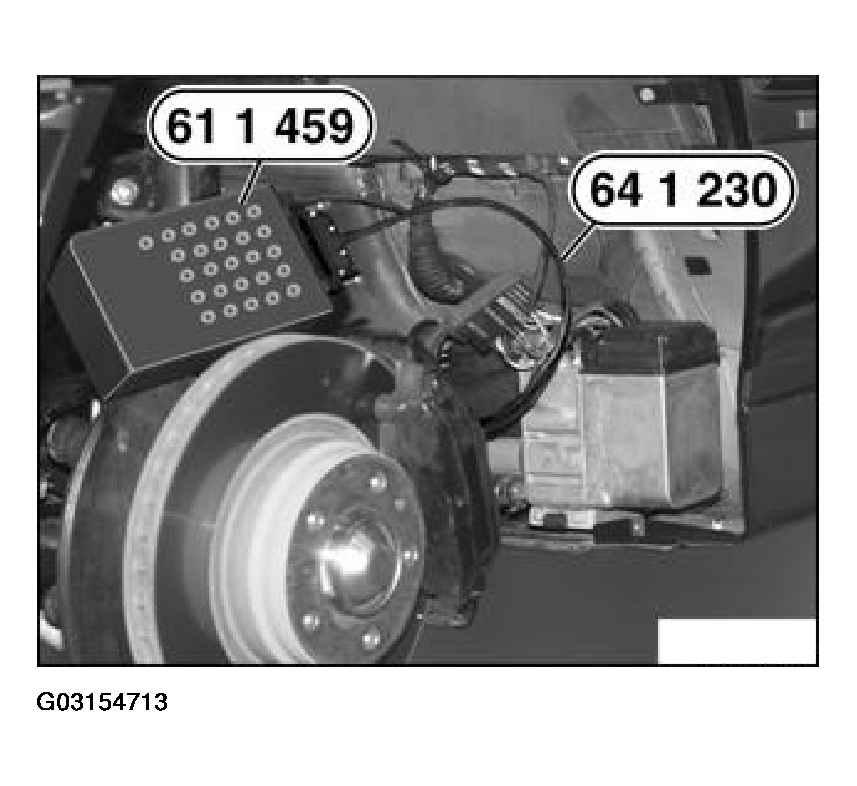

Connect V adapter cable 64 1 230 between wiring harness and heater and connect to 26-pin peripherals box 61 1459.

Reinstall heater.

Observe installation notes:

refer to 64 12 500 REMOVING AND INSTALLING / REPLACING COMPLETE HEATER (THERMO TOP S)

Fig 3: Connecting V Adapter Cable Between Wiring Harness And Heater

Courtesy of BMW OF NORTH AMERICA, INC.
