51 71 040 Removing and installing/replacing front left or right wheel arch cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front wheel.

M5 only:

Remove front splash guard.

Remove screws (1) and (2).

Fig 1: Removing Screws And Front Splash Guard

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) and (3).

Release screws (2).

Remove front wheel arch cover (4).

Installation:

Make sure front wheel arch cover is correctly seated against side wall.

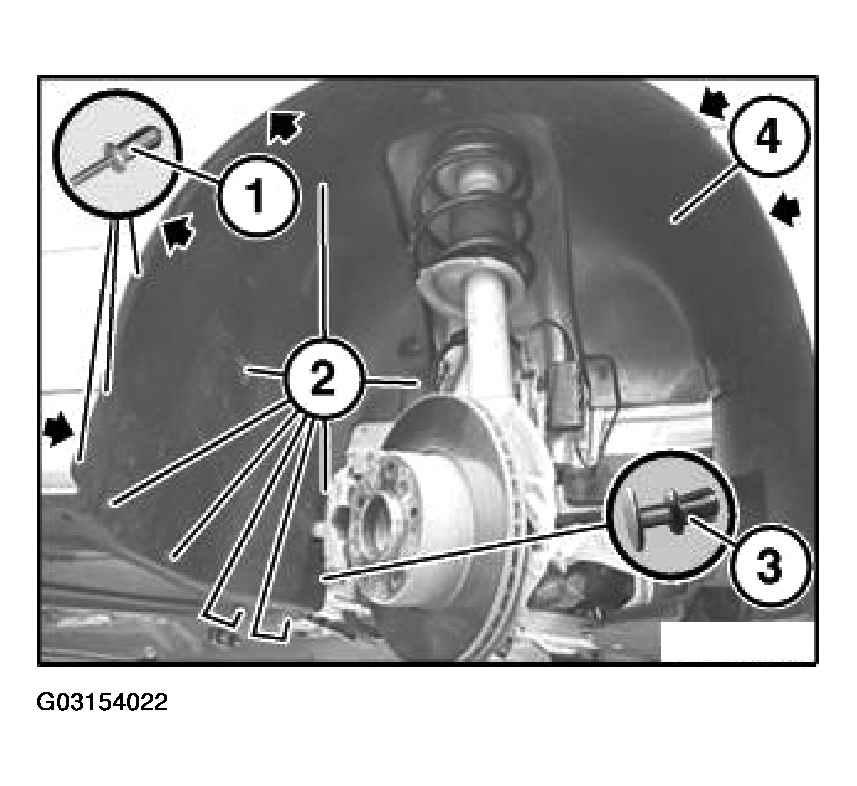

Fig 2: Releasing Expansion Rivets And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
