63 12 001 Removing and installing/replacing left headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

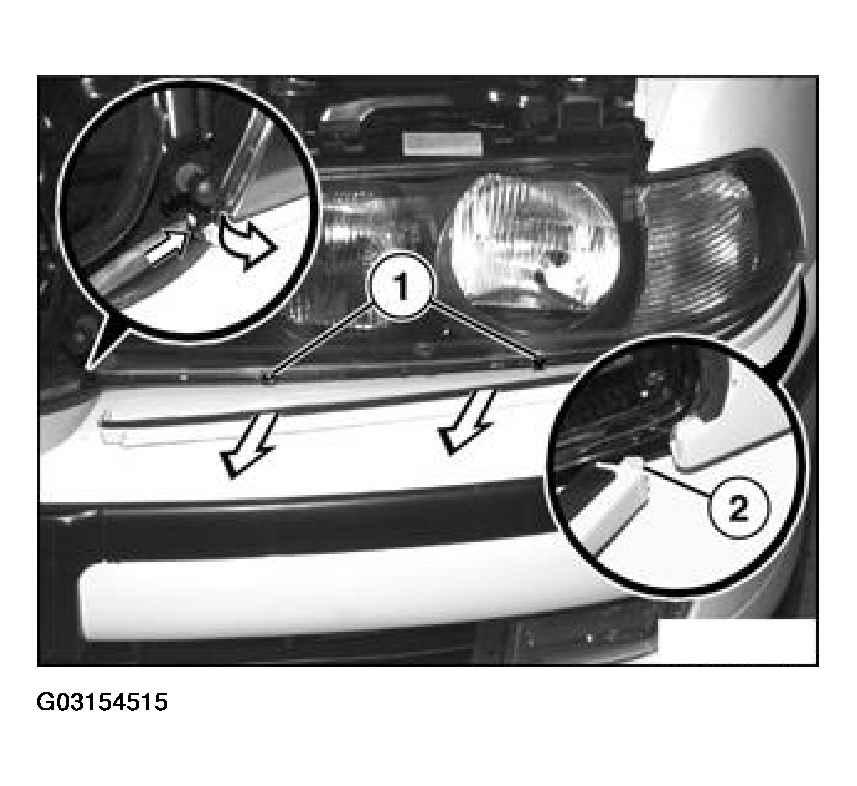

Unclip inner trim and press downwards out of headlamp holders (1).

Feed hook (2) out of outer trim and remove trim.

Fig 1: Feeding Hook Out Of Outer Trim

G03154515

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

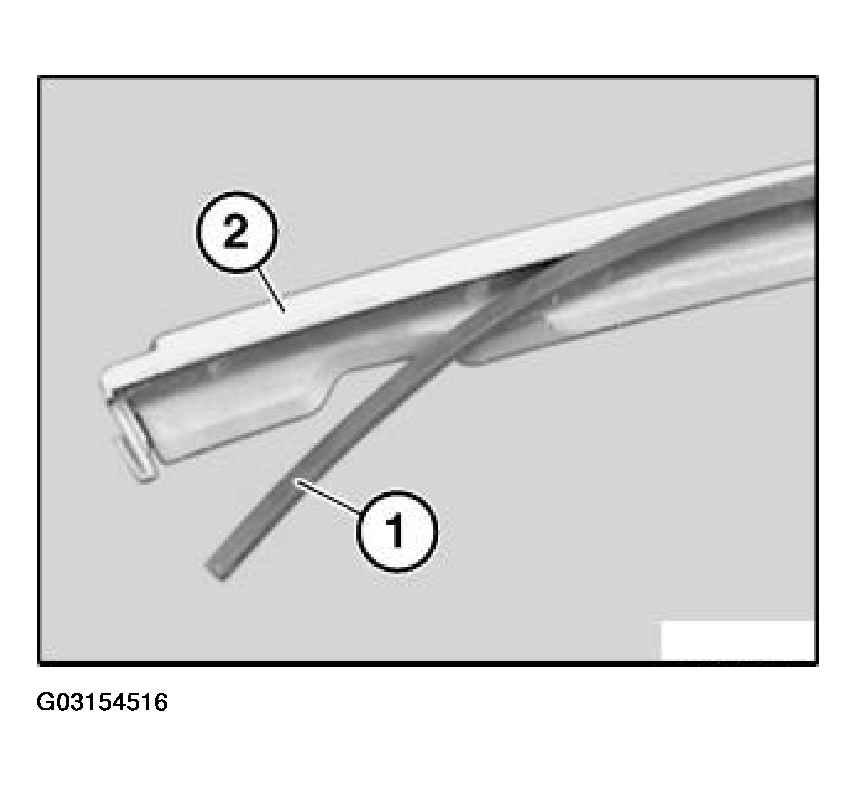

Make sure rubber seal (1) is correctly seated.

Mount trim (2) on installed headlamp.

Fig 2: Identifying Rubber Seal

G03154516

Courtesy of BMW OF NORTH AMERICA, INC.

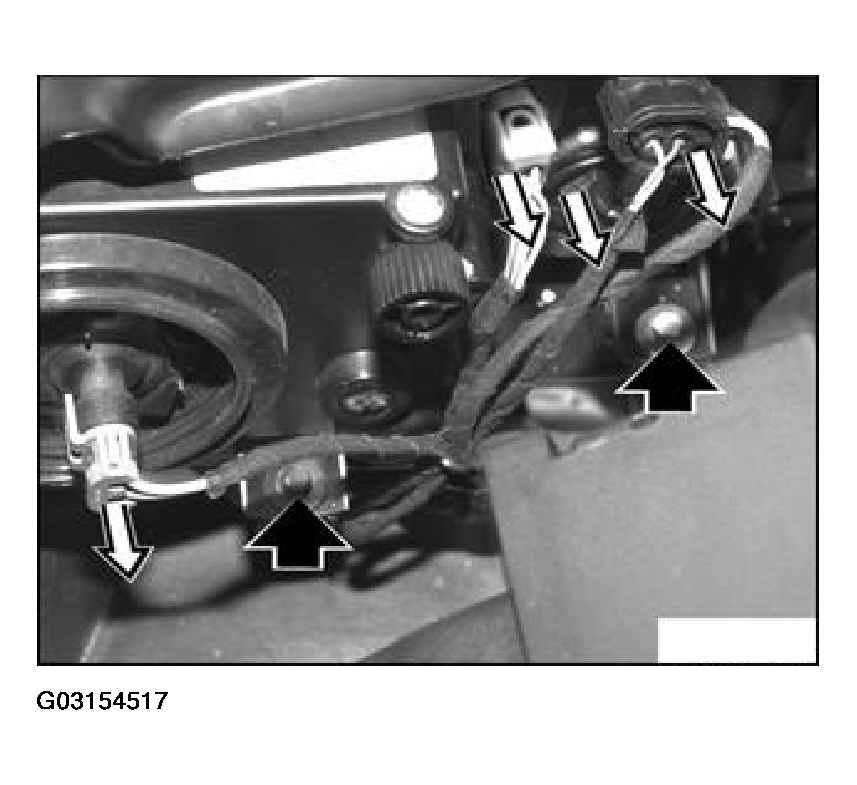

Up to 09/2000:

Disconnect all headlamp plug connections.

Unfasten screws.

Fig 3: Disconnecting All Headlamp Plug Connections

G03154517

Courtesy of BMW OF NORTH AMERICA, INC.

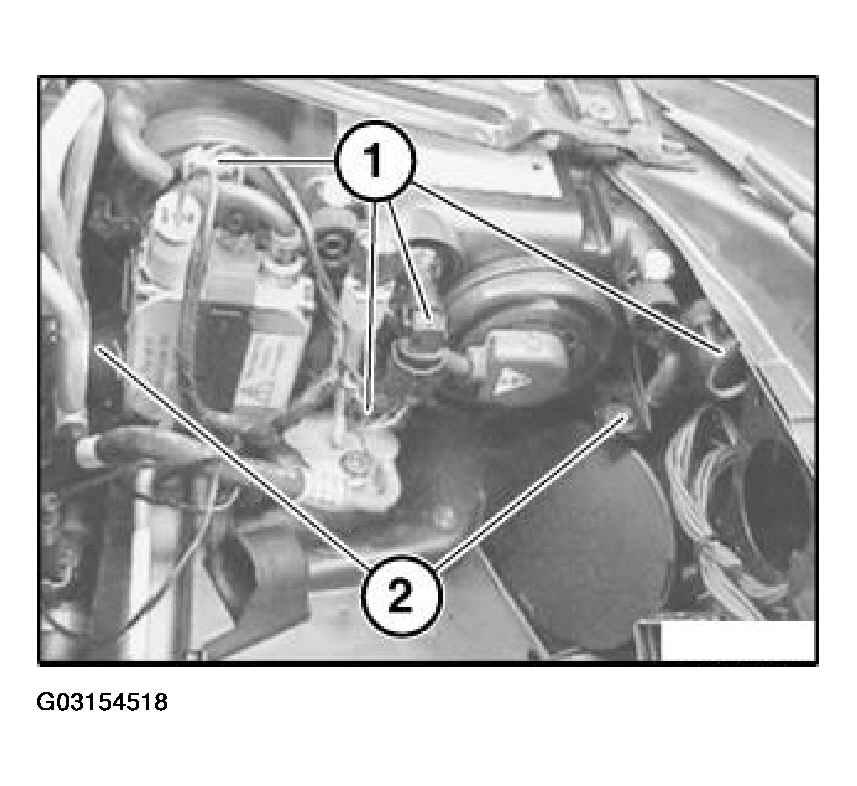

From 09/2000:

Disconnect all headlamp plug connections (1).

Release screws (2).

All:

Fig 4: Disconnecting All Headlamp Plug Connections And Releasing Screws

G03154518

Courtesy of BMW OF NORTH AMERICA, INC.

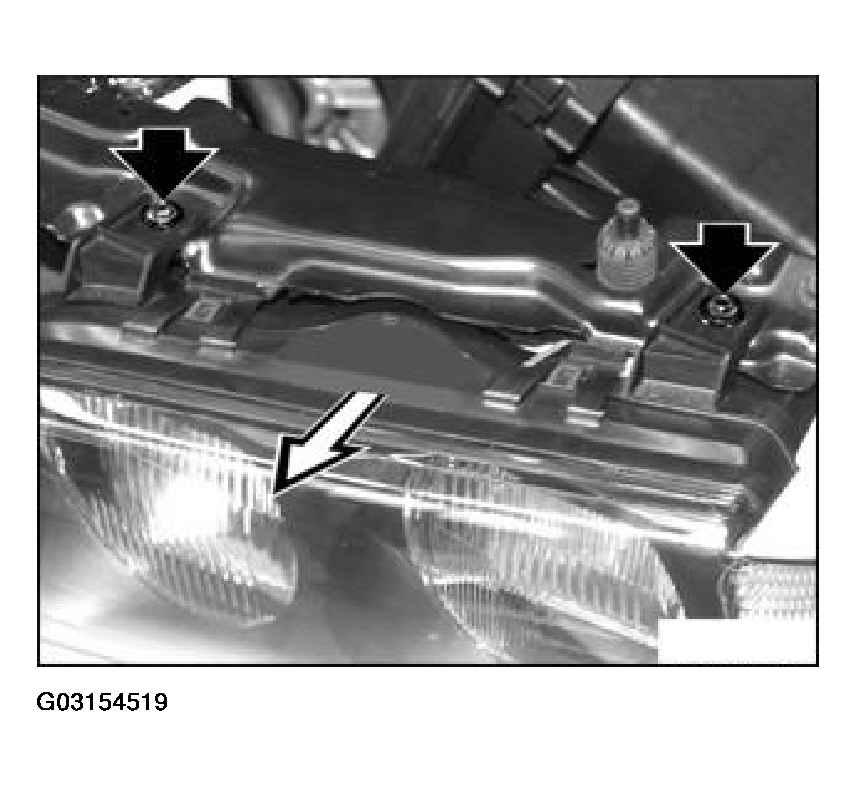

Unfasten screws and pull headlight forwards to remove.

Fig 5: Unfastening Screws And Pull Headlight Forwards

G03154519

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

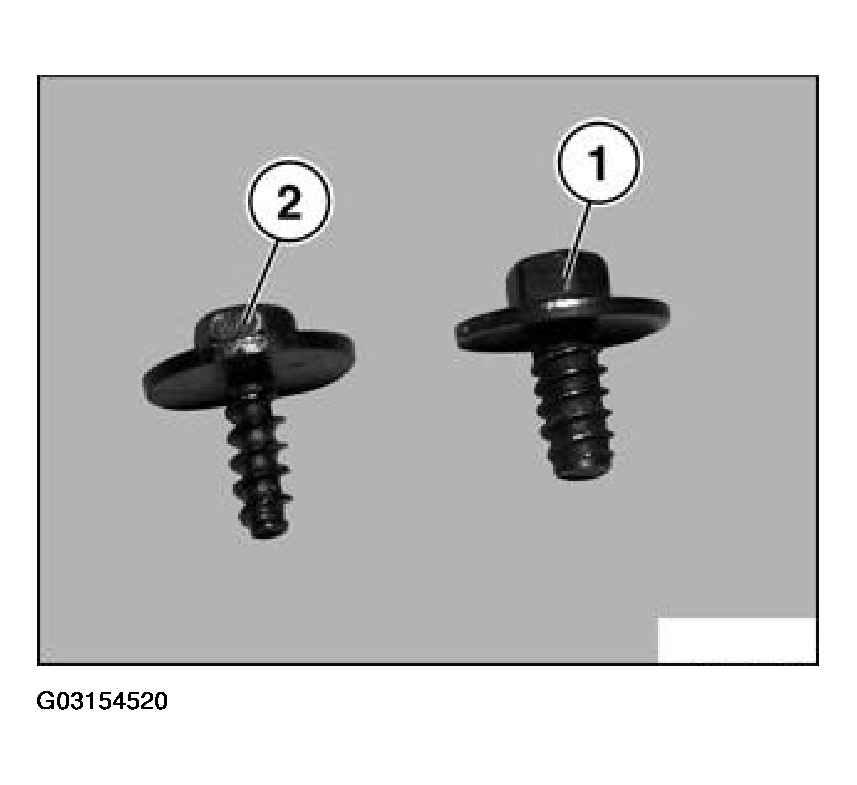

Screws (1) with large diameter: at bottom.

Screws (2) with small diameter: at top.

Fig 6: Identifying Screws With Large And Small Diameter

G03154520

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust protrusion of hood/bonnet over headlamp glass lens.

Adjust headlights.
