63 17 010 Replace reflector for foglights

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove foglights refer to 63 17 000 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FOG LAMP INSERT (COMPLETE)

Remove light bulb for foglights, refer to 63 99 201 REPLACING HALOGEN BULB FOR LEFT OR RIGHT FRONT FOG LAMP

Unclip bracket and remove reflector.

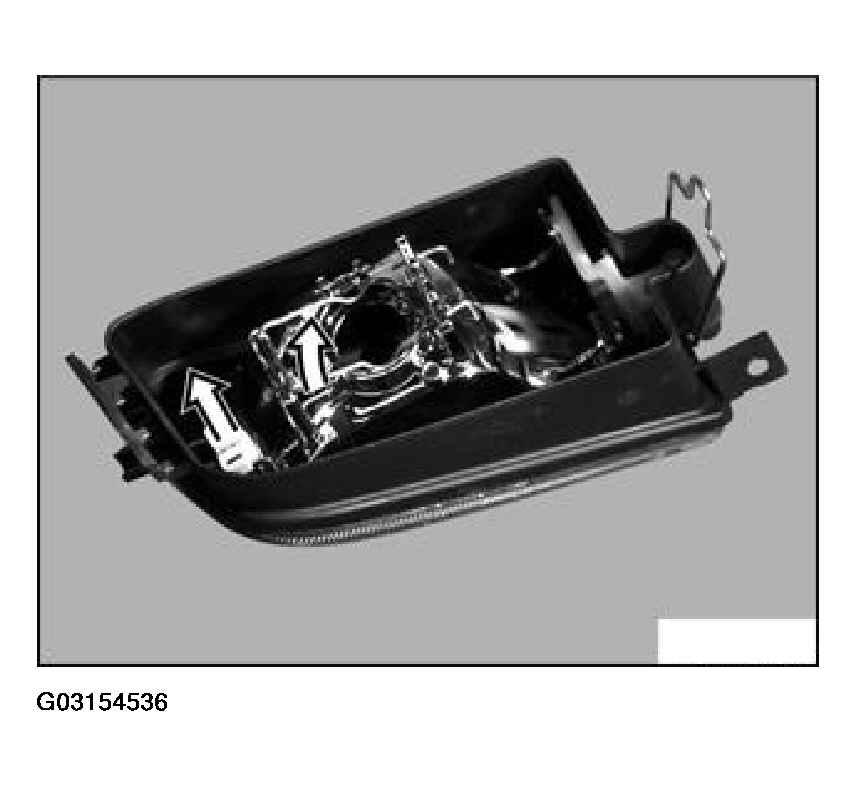

Fig 1: Uncliping Bracket And Removing Reflector
G03154536Courtesy of BMW OF NORTH AMERICA, INC.
