63 17 000 Removing and installing/replacing left or right fog lamp insert (complete)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove grill.

Up to 08/2000:

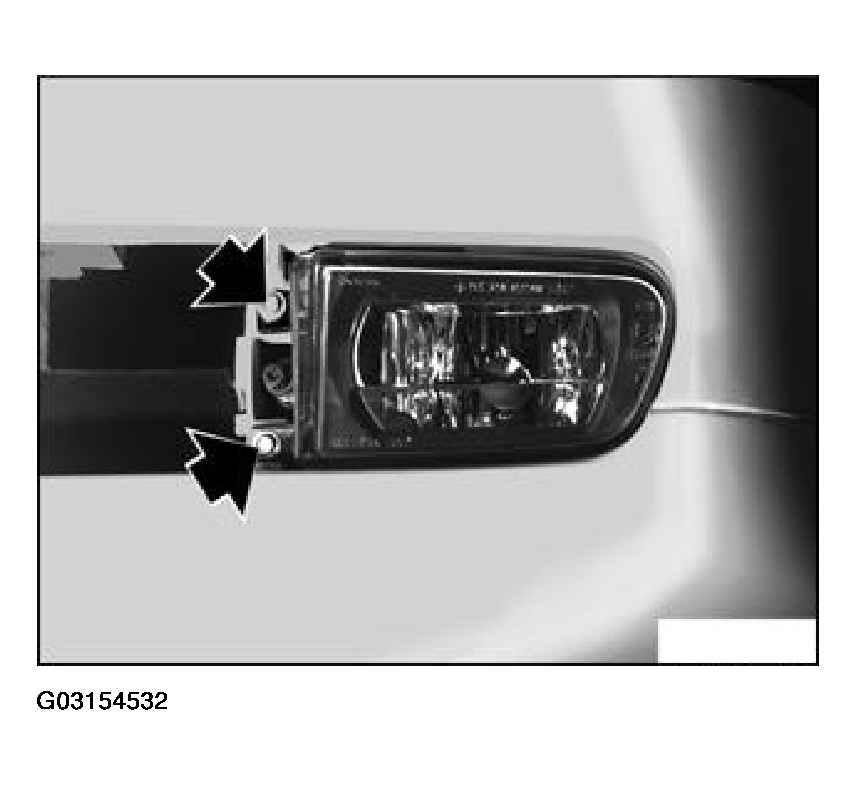

Unfasten screws and fold out fog lamp.

Fig 1: Unfastening Screws And Fold Out Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

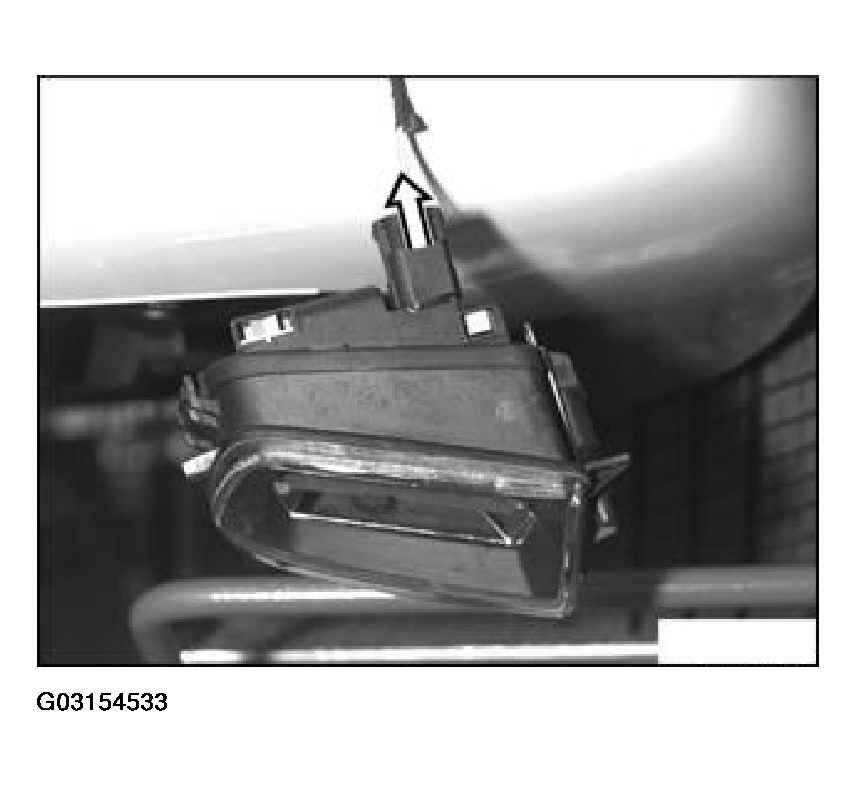

Disconnect plug connection and remove fog lamp.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

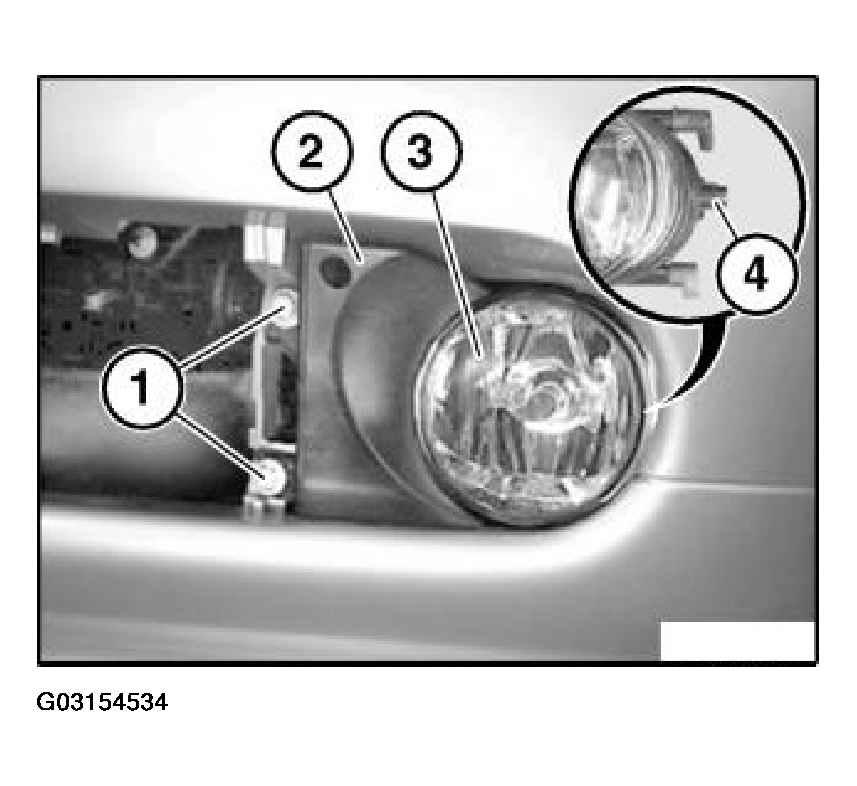

Release screws (1).

Remove trim (2) and fog lamp (3) towards front.

Disconnect plug connection underneath.

Fig 3: Removing Trim And Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure guide pin (4) is correctly seated.

Fig 4: Identifying Mounts Of Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

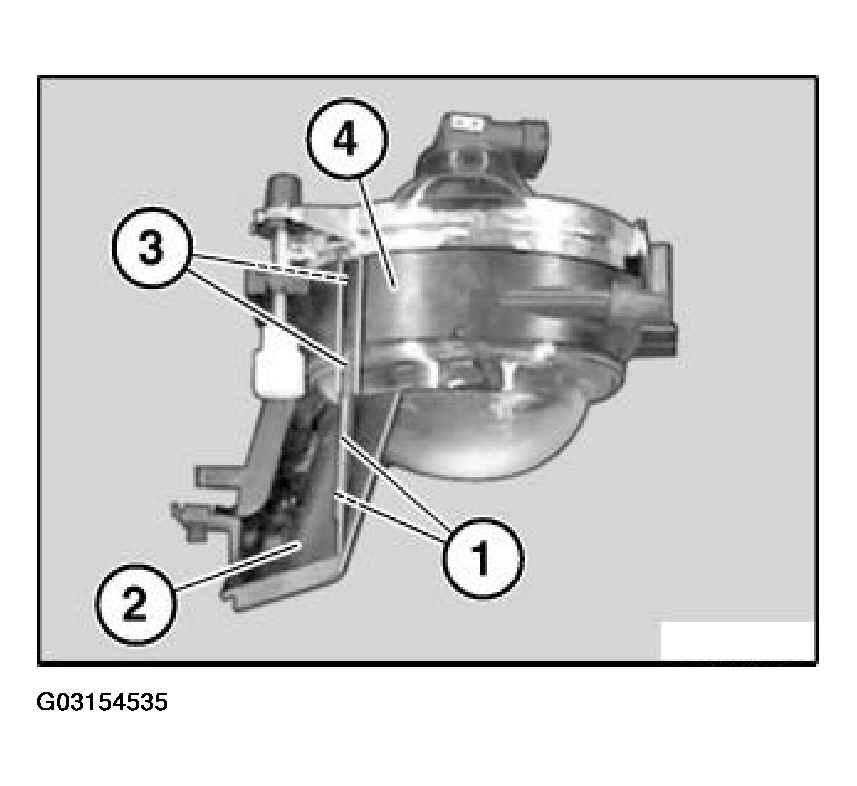

Ensure both guide lugs (1) of trim (2) are correctly seated in mounts (3) of fog lamp (4).

All:

NOTE: Replacement:

Adjust front fog lamps.
