63 25 000 Removing and installing/replacing auxiliary brake light: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing trim for oddments tray, refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF)

Remove nuts.

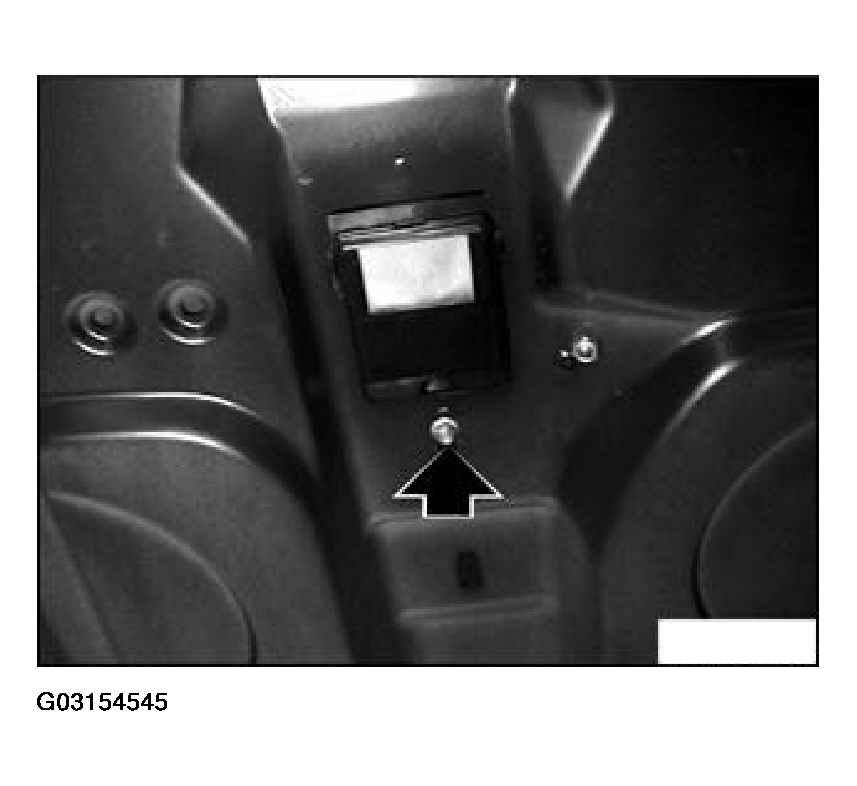

Fig 1: Removing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector, pull back brake light and lift out.

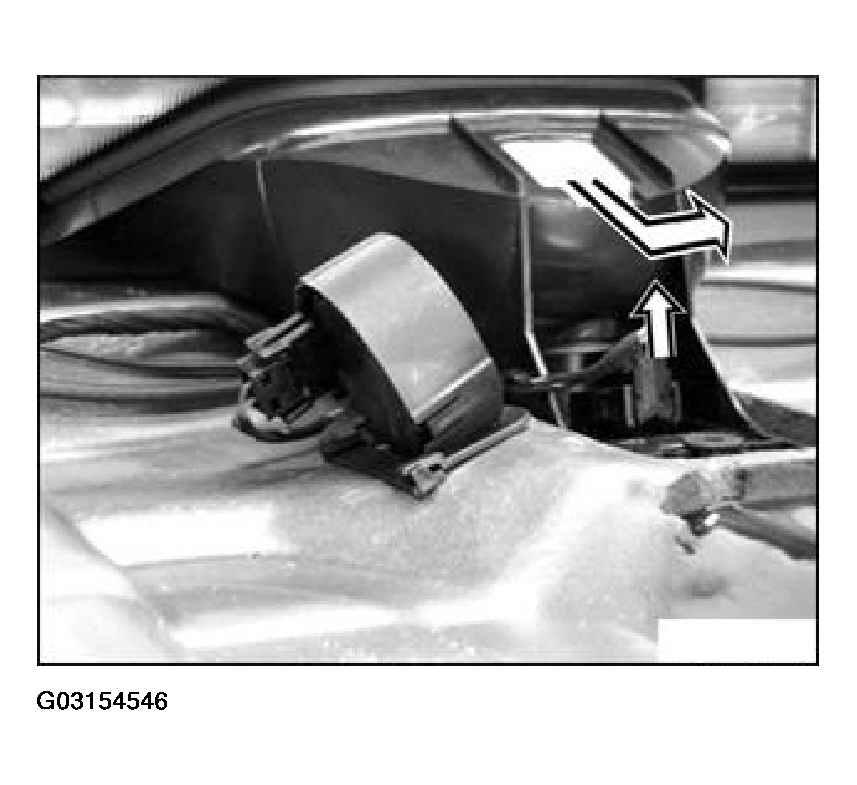

Fig 2: Removing Connector, Pull Back Brake Light And Lift Out

Courtesy of BMW OF NORTH AMERICA, INC.
