61 61 270 Removing and installing complete wiper console: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove both wiper arms, refer to 61 61 100 REMOVING AND INSTALLING/REPLACING BOTH WINDSHIELD WIPER ARMS

Remove windshield cowl cover.

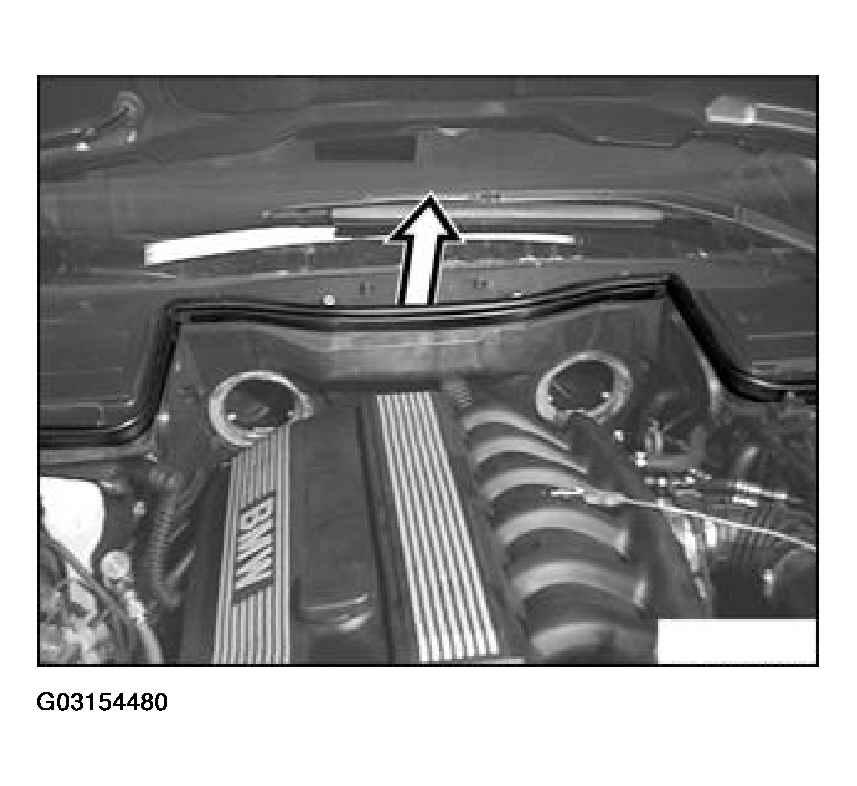

Remove sealing frame from engine hood.

Fig 1: Removing Sealing Frame From Engine Hood

G03154480

Courtesy of BMW OF NORTH AMERICA, INC.

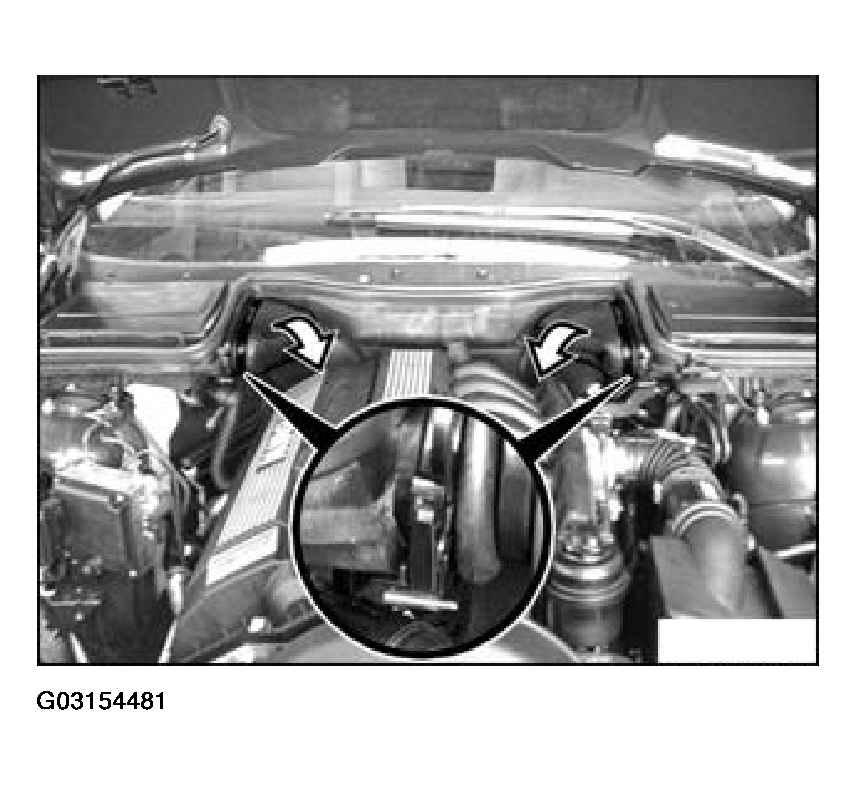

Unfasten clip from right and left air ducts, twist air duct and lift out.

Fig 2: Unfastening Clip From Right And Left Air Ducts, Twisting Air Duct And Lifting Out

G03154481

Courtesy of BMW OF NORTH AMERICA, INC.

Installation instructions:

Fit air duct to end wall. Twist, then insert in underside of microfilter.

Fig 3: Fitting Air Duct To End Wall

G03154482

Courtesy of BMW OF NORTH AMERICA, INC.

Remove left and right microfilter, refer to

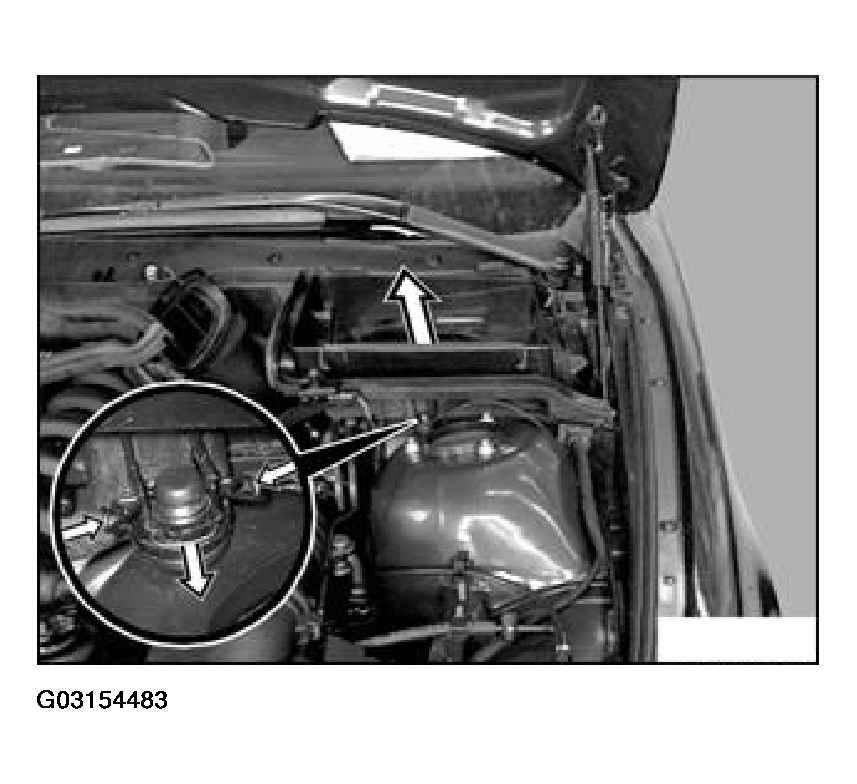

Unfasten clip and lift out right and left microfilter housings.

Fig 4: Removing Left And Right Microfilter

G03154483

Courtesy of BMW OF NORTH AMERICA, INC.

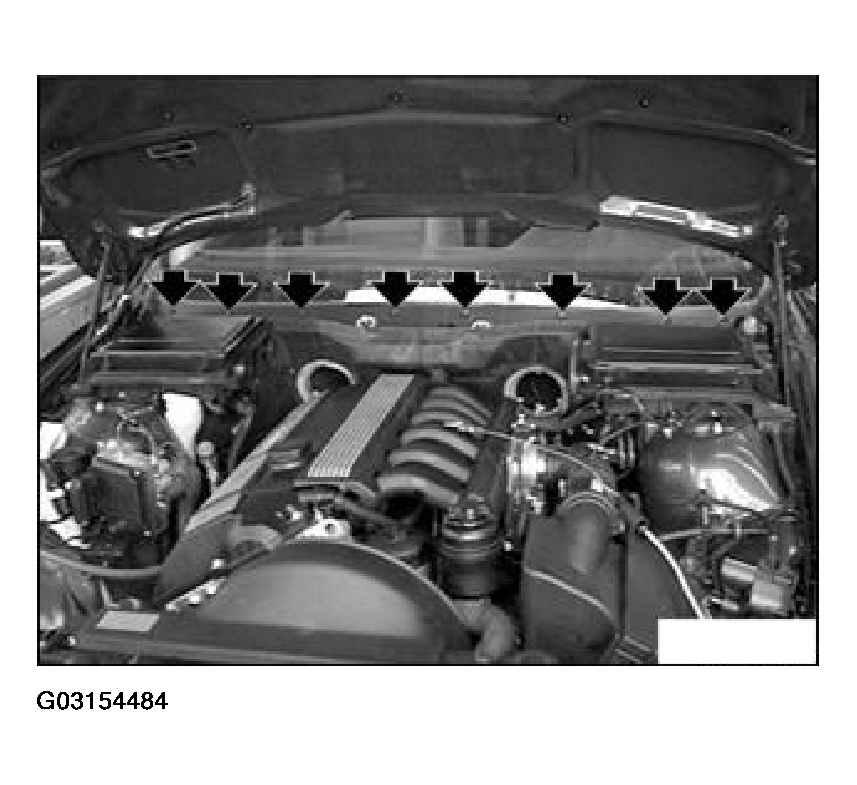

Release all split rivets and remove cowl screen.

Fig 5: Removing Cowl Screen

G03154484

Courtesy of BMW OF NORTH AMERICA, INC.

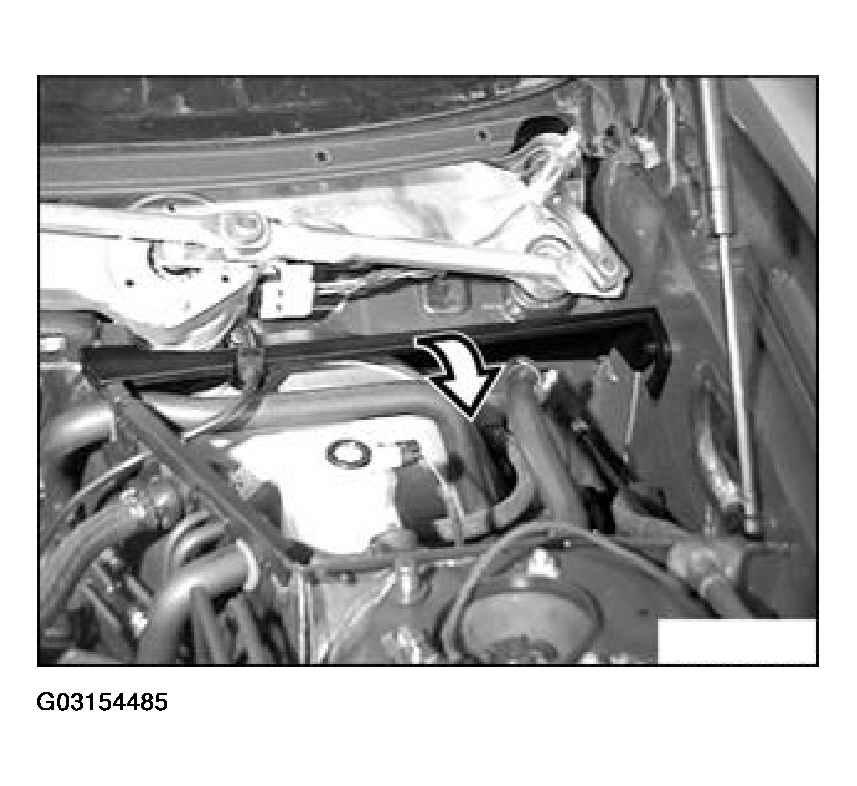

Unfasten screw and remove cover.

Fig 6: Removing Cover

G03154485

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing windshield cowl cover" ends here.

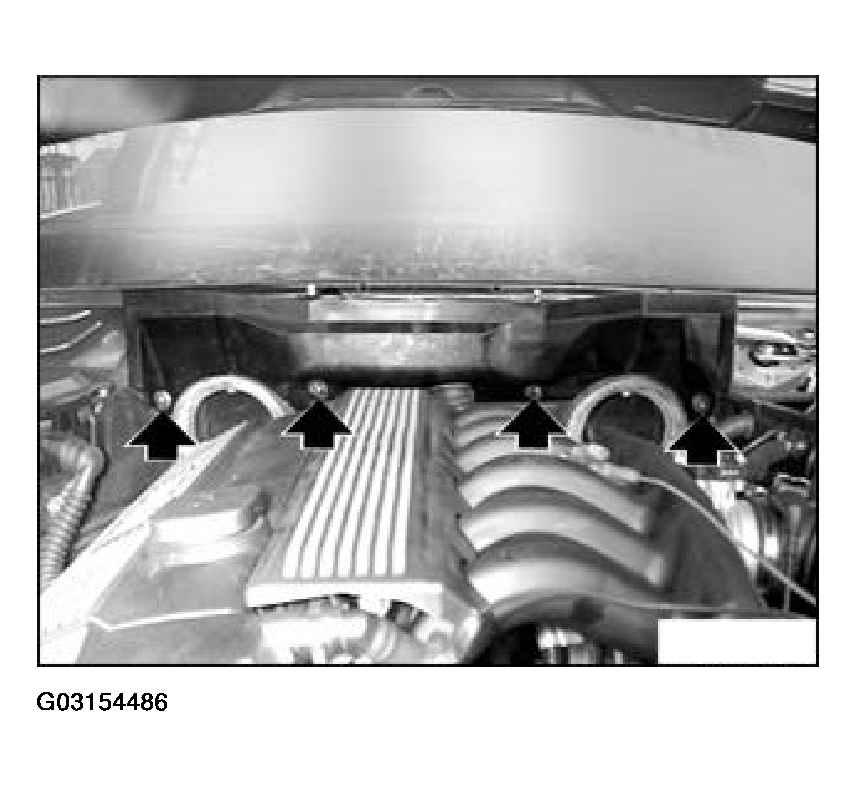

Twist all levers through approx. 90° and remove cable cover.

Fig 7: Removing Cable Cover

G03154486

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector, unfasten screws and lift out complete wiper console.
